Pramoninis komutatorius TP-LINK, 5 prievadų, 10/100/1000 Mbps, aliuminis, DIN montavimas

Hind:
€88,05
Laoseis:
Laos

Trumpai apie prekę

Prekė: Pramoninis komutatorius TP-LINK, 5 prievadų, 10/100/1000 Mbps, aliuminis, DIN montavimas. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Spacetronik
  • Modelis: SP-SFI105

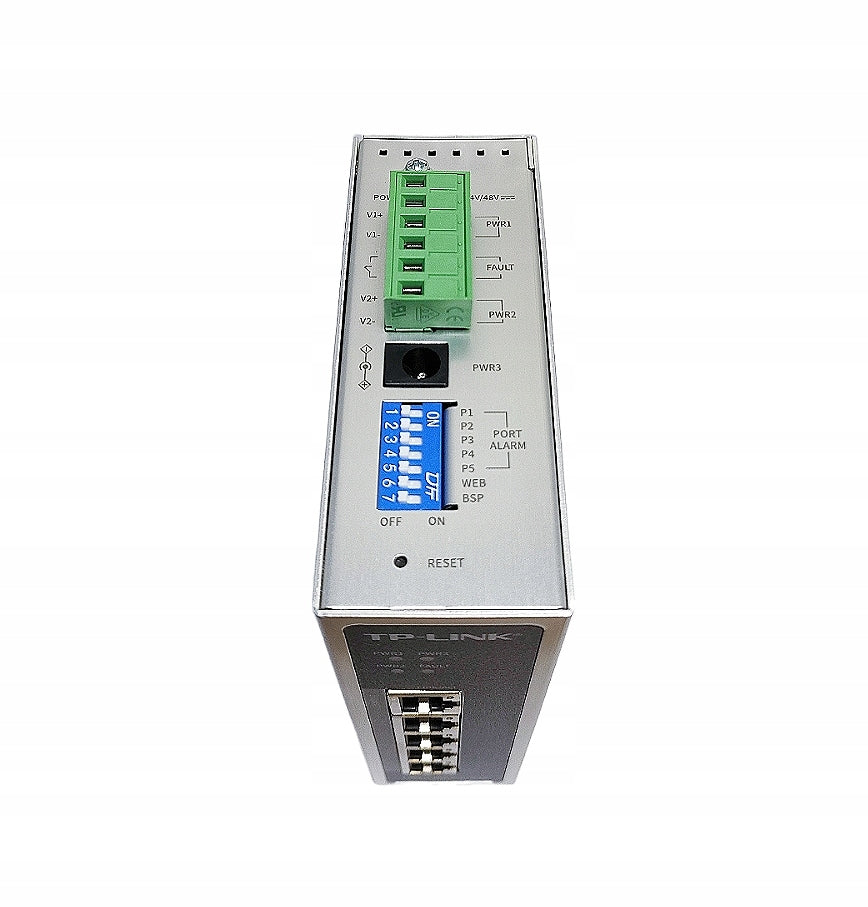

SWITCH LAN 5-PORT 10/100/1000 Mbps TP-LINK industrial to DIN rail

Specification:

  • Ports: 5 * 10/100/1000Mbps Adaptive Ports
  • Port Type: RJ45
  • Network protocols: IEEE802.3, IEEE802.3u, IEEE802.3i, IEEE802.3x, IEEE802.3ab
  • Communication: Modbus TCP, Profinet, Ethernet/IP
  • 3 x LEDs: PWR1, PWR2, PWR3 | Link/Act
  • Power supply: 12/24/48V DC, max. 0.24A
  • Security: Supports reverse connection protection, overload protection, IP30, ALARM PORT, WEB, VLAN
  • Dimensions: 137mm x 100mm x 38mm
  • Housing: aluminium
  • Assembly: DIN/wall
  • Set: Switch TP-LINK TL-SG1005, wall mounting parts, manual
  • Working temperature range: -40~75*C

EMS standards:

  • IEC/EN 6100-4-2 Level 4
  • IEC/EN 6100-4-3 Level 4
  • IEC/EN 6100-4-4 Level 4
  • IEC/EN 6100-4-5, Level 3
  • IEC/EN 6100-4-6, Level 3
  • IEC/EN 6100-4-8, Level 5
  • IEC/EN 6100-4-9, Level 5
  • IEC/EN 6100-4-10, Level 5

+ Wide input voltage: 9,6V ~ 60V DC

+ Aluminum alloy housing and nickel chemical gold PCB board greatly improve the anti-corrosion properties of the equipment

+ Compact body design, metal housing, efficient heat dissipation

+ Installation on DIN rail, simple and flexible

+ Port interrupt alarm, real-time port operation status monitoring

Simple and practical network management functions

Supports device management and maintenance through a web interface and computer management software.

Supports 802.1Q VLAN, MTU VLAN and VLAN port. Users can flexibly share VLANs as needed.

It supports QoS, supports three priority modes based on port, 802.1P and DSCP, and optimizes bandwidth configuration.

It supports port aggregation, effectively increasing bandwidth, performing link backups, and improving link reliability.

It supports port mirroring, transferring data from a specific port to a mirror port for network monitoring.

Support bandwidth control, configure port input/output data rates, and rationally allocate and use bandwidth.

It supports storm suppression by limiting broadcast traffic allowed on the port to prevent severe reductions in network performance by broadcast storms.

Link to the instruction manual for our products:

https://sklep.cda.com.pl/pl/pobieranie

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Spacetronik
Parametry Number of ports 5
Parametry LAN port operating standard 10/100/1000 Mbps
Parametry EAN (GTIN) 5903031049466
Parametry Manufacturer code SP-SFI105
Parametry Packaging status original
