Pramoninis jungiklis ULTIPOWER 180IND, 8xFE, 2 vnt.

Trumpai apie prekę

Prekė: Pramoninis jungiklis ULTIPOWER 180IND, 8xFE, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: N299728

Product Code: 180IND

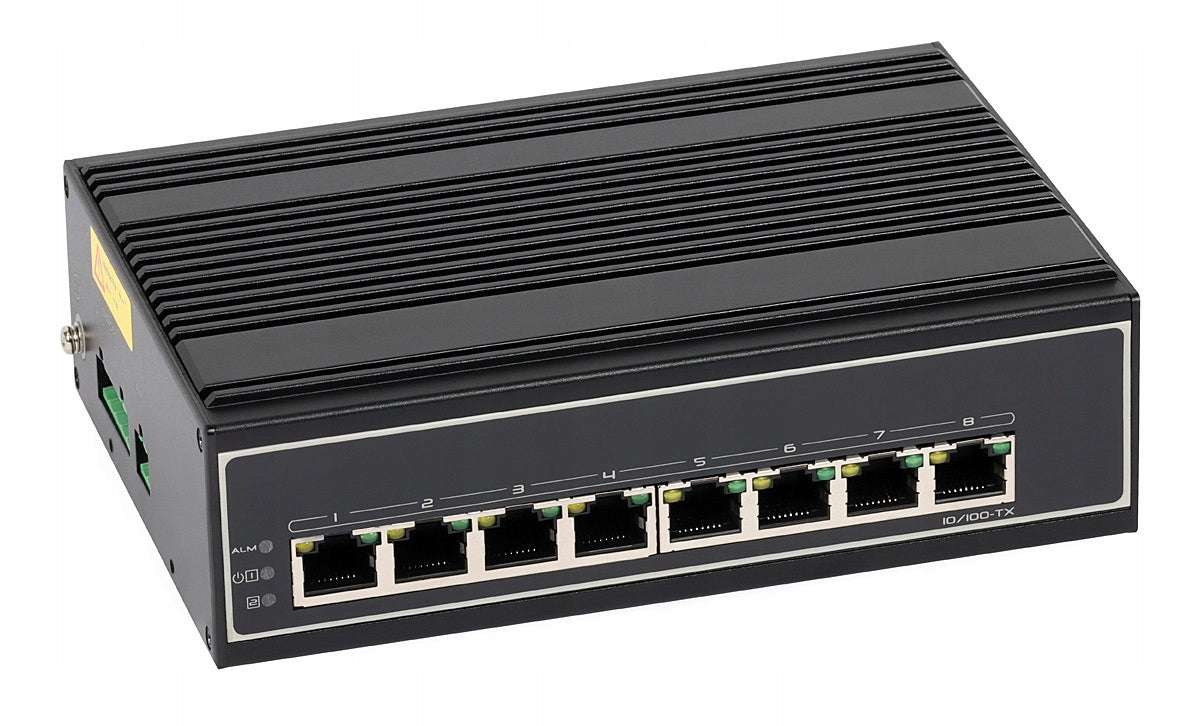

The ULTIPOWER PoE Switch is an industrial-grade device that provides seamless network transmission. It allows you to establish connections at a speed of 10/100 Mbps. It has 8 RJ45 ports that support automatic negotiation of connection speed.

Switches of this type should be used in installations implemented in industrial facilities where it is possible to have unfavourable conditions for the operation of devices, such as increased dustiness, high or low temperature, or high humidity. Installation of industrial switches is also recommended for installations carried out on poles - in hermetic housings. Switches have Ethernet ports (depending on the Fast Ethernet or Gigabit Ethernet model) for connecting devices such as IP cameras or computers. ULTIPOWER industrial switches have a housing that meets the IP40 standard (protection against access to hazardous parts, protection against foreign solids with a diameter of more than 1 mm).

Distinguishing features:

• Degree of protection: IP40
• Power supply:12-60 V DC,
• Possibility of connecting two power supplies (second as redundant),
• Power Consumption: < 5W,
• Ethernet ports: 8x Fast Ethernet 10/100 Mbps,
• Protection against electrostatic discharges: 6 kV,
• Operating temperature range: -35...65℃,
• Permissible ambient humidity: 5...95%,
• Possible mounting on DIN rail.

Technical parameters:

• Name: Industrial Switch ULTIPOWER 180IND 8xFE
• Model: 180IND
• Purpose: Industrial Switch
• Producer: ULTIPOWER
• Device interfaces
• Ethernet ports number of ports: 8
• Port Type: Fast Ethernet
• 10/100 Mbps: 8
• SFP Slot Optical Port: No
• SFP slot 100 Mbps: 2
• Console Port: No
• Hardware performance
• Bandwidth: 1,6 Gbps
• Packet redirection speed: 1,19 Mp/s
• Buffer Memory: 1 Mb
• MAC address array: 8K
• Properties of PoE
• PoE: No
• Hardware Properties
• Power supply: DC 12...60 V
• Number of Fans: None
• Dimensions: 165 x 115 x 50 mm
• Mounting method: Desktop, DIN (TH35)
• Redundant Power Supply: Yes
• Certificates: CE/FCC
• Package Contents: Manual, Switch, DIN Mounting Brackets
• Working environment
• Operating temperature: -35...+65 ℃
• storage: -40...+75 ℃
• Air humidity: 10...90 %
• storage: 5...90 %
