Pramoninis jungiklis Teltonika TSW304, 4 jungtys

Hind:
€229,30
Laoseis:
Laos

Trumpai apie prekę

Prekė: Pramoninis jungiklis Teltonika TSW304, 4 jungtys. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Teltonika
  • Modelis: 569542021

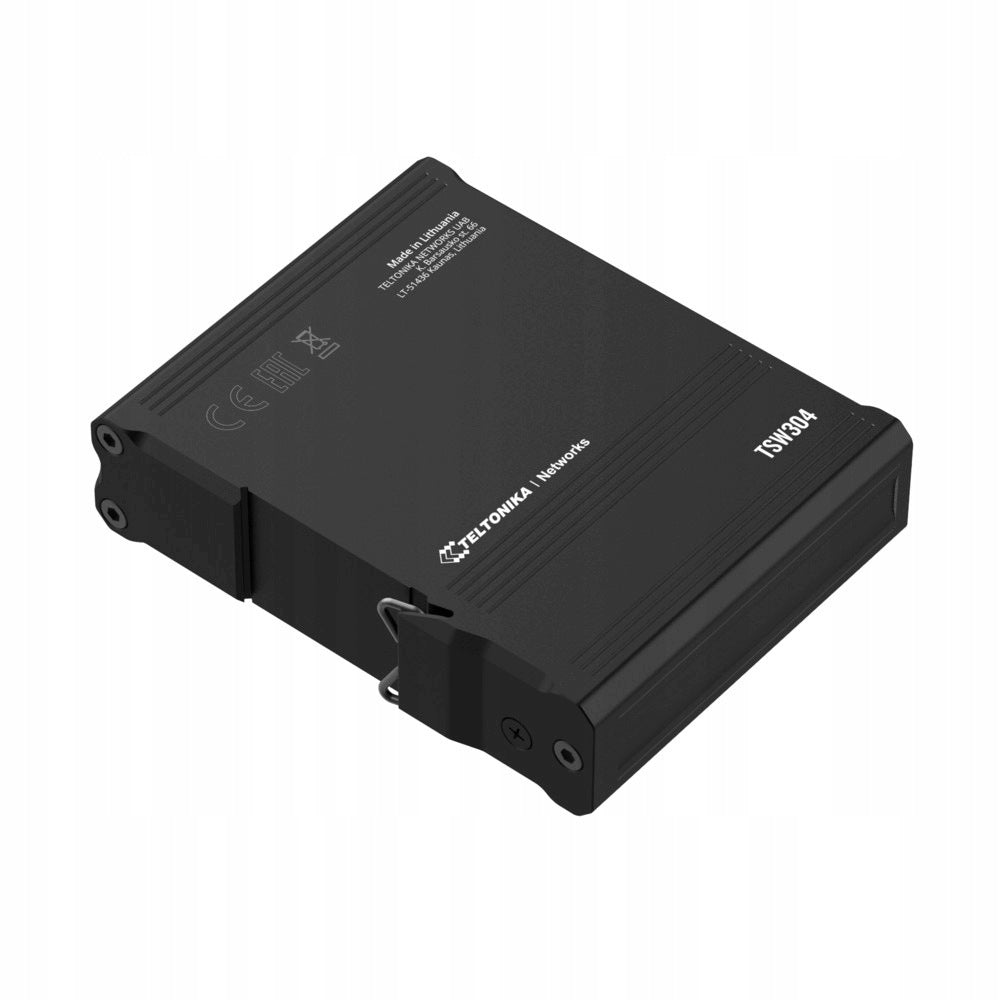

TSW304 is an unmanaged switch with integrated built-in DIN rail holder and 4 Gigabit Ethernet ports

  • Built-in, integrated DIN mounting
  • Compact size
  • 4 x Gigabit Ethernet speeds up to 1000 Mbps
  • Wide range of supported supply voltages
  • Durable aluminum housing
  • Wide operating temperature range

Gigabit ports

The Switch TSW304 is equipped with four Gigabit Ethernet ports supporting IEEE 802.3, IEEE 802.3u and 802.3az Ethernet standards. Ideal for cost-effective, broadband solutions that provide reliable data throughput.

2-pin industrial power socket

Technical specification

Interfaces

  • Ethernet: 4 RJ45 ports, 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports MDI/MDIX auto crossover

Performance

  • Capacity (without blocking): 8 Gbps
  • Package buffer: 128 KB
  • MAC address table size: 2 thousand. entries
  • Support Jumbo frames: 9216 bytes

Power supply

  • Connection: 2-pin power socket
  • Input voltage range: 7 - 57 VDC; 9 - 40 VAC
  • PoE (passive): Passive PoE input on port 1
  • Energy consumption: Idle: 0,26 W / max.: 1,44 W

Physical interfaces (ports, LEDs)

  • Ethernet: 4 RJ45 ports, 10/100/1000 Mbps
  • LEDs: 1 x power LED, 8 x LAN status LEDs
  • Power Supply: 1 x 2-pin power socket
  • Grounding: 1 x ground screw

Physical Specification

  • Housing material: Aluminium housing
  • Dimensions (Width x H x D. ): 102x25x81,5 mm
  • Weight: 210 g
  • Assembly options: DIN rail mounting

Working environment

  • Working temperature: -40°C to 75°C
  • Working humidity: 10% to 90% non-condensing
  • Degree of protection: IP30

Certificates and regulations

  • Regulations: TSW304
  • CE, REACH, RoHS, WEEE: UKCA, FCC, IC, CB, RCM

Security

  • Standards: EN IEC 62368-1:2020+A11:2020

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Teltonika
Parametry Number of ports 4
Parametry EAN (GTIN) 5908066892513
Parametry Manufacturer code 569542021
