Pramoninis jungiklis Planet IGS-6325-20S4C4X pagal užsakymą

Trumpai apie prekę

Prekė: Pramoninis jungiklis Planet IGS-6325-20S4C4X pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IGS-6325-20S4C4X

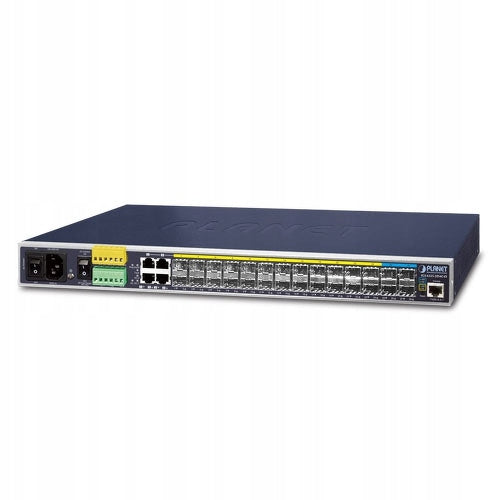

Planet IGS-6325-20S4C4X on request

Planet

10Gbps fiber ports and multiple dual speed fiber ports ensure high network speed.

PLANET IGS-6325-20S4C4X Industrial Layer 3 Managed Switch has 14 ports 100/1000Mbps SFP, 4 shared TP ports, 10 ports 100/1000/2500Mbps SFP, 4 ports 10G SFP+ and IP routing Layer 3 in 1U housing. With 10Gbps uplink, the IGS-6325-20S4C4X can handle extremely large amounts of data in a secure topology that connects to an industrial backbone or high-capacity servers. The IGS-6325-20S4C4X is capable of providing non-blocking switching and bandwidth up to 158Gbps in the temperature range of -40 to 75 degrees C. This greatly simplifies the tasks of upgrading an industrial LAN to meet the growing bandwidth demand. In addition, it adopts user-friendly "Front Access" design for easy wiring and maintenance of IGS-6325-20S4C4X when placed in the cabinet.

Support for Layer 3 routing

The IGS-6325-20S4C4X enables an administrator to conveniently increase network performance by manually configuring Layer 3 static routing IPv4/IPv6 VLAN and automatically configuring OSPFv2 (Open Shortest Path First) IPv4 settings. OSPF is an internal dynamic routing protocol for a standalone system based on the state of the link. The protocol creates a link state database by exchanging link states between Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.

Cybersecurity networking solution to minimize security risks

The cybersecurity feature included to protect switch management in a mission-critical network requires virtually no effort or cost to install. For efficient management, the IGS-6325-20S4C4X is equipped with console, web and SNMP management interfaces. With its built-in web-based management interface, the IGS-6325-20S4C4X offers an easy-to-use, platform-independent management and configuration device. IGS-6325-20S4C4X supports SNMP and can be managed by any management software based on the standard SNMP protocol. To reduce product learning time, the IGS-6325-20S4C4X offers Cisco commands via Telnet or the console port, so that the customer does not have to learn new commands from these switches. In addition, the IGS-6325-20S4C4X offers remote secure management via support for SSHv2, TLSv1.2 and SNMP v3 connections that can encrypt packet contents during each session.

Modbus TCP provides flexible network connectivity for factory automation

With Modbus TCP/IP support, the IGS-6325-20S4C4X can easily integrate with SCADA systems, HMI systems and other factory data acquisition systems. It enables administrators to remotely monitor industrial Ethernet switch operational information, port information and communication status, so you can easily achieve improved monitoring and maintenance of the entire factory.

Time Protocol 1588 for Industrial Computer Networks

The IGS-6325-20S4C4X is the ideal solution for telecommunications and operator Ethernet applications, supporting the delivery of MEF services and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Redundant AC and DC power supply for continuous operation

The IGS-6325-20S4C4X has a 100~240V AC power supply and a dual 24~60V DC power supply used as a redundant power supply to ensure continuity of operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities that require the highest power integrity. In addition, thanks to the implemented 24~60V DC power supply, the IGS-6325-20S4C4X can be used as a telecommunication level device and placed in almost any difficult environment.

Digital input and output for external alarm

The IGS-6325-20S4C4X helps network administrators effectively manage unexpected network situations by providing a digital input and output for an external alarm device on the front panel. The digital input can be used to detect and record the status of external devices such as e.g. door break-in sensor. The digital output can be used to send an alarm in the event of a port failure or power outage.

Effective alarm for better protection

The IGS-6325-20S4C4X supports Fault Alarm, which can alert users when something is wrong with the switches. With this ideal feature, users won’t have to waste time finding where the problem is. This will help save time and human resources.

Redundant ring, fast recovery for critical network applications

The IGS-6325-20S4C4X supports backup ring technology and has strong, fast self-healing capabilities to prevent interruptions and external intrusions. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol (802.1s MSTP) technology and a redundant power system in the industrial automation network to increase system reliability and uptime in harsh factory conditions. In a simple ring network, the data link recovery time can be as long as 10 ms.

Dual IPv6/IPv4 stack

Supporting both IPv6 and IPv4 protocols, IGS-6325-20S4C4X helps data centers, campuses, telecoms and others experience the IPv6 era with the lowest investments, as network devices do not need to be replaced or renovated when an IPv6 FTTx edge network is created.

Solid Layer 2 features

IGS-6325-20S4C4X can be programmed for advanced switch management features such as dynamic port aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. By aggregating the support port link, IGS-6325-20S4C4X enables high-speed trunk operation connecting to multiple fiber ports, and supports fail-over.

Powerful security

The IGS-6325-20S4C4X offers a comprehensive access control list (ACL) at layer 2 through 4, allowing you to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes port-based and MAC-based 802.1X authentication and user and device authentication. With private VLAN functionality, you can prevent communication between edge ports to ensure user privacy. IGS-6325-20S4C4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secure enterprise networks with significantly less time and effort than before.

Excellent motion control

The IGS-6325-20S4C4X is equipped with powerful traffic management and QoS features to enhance calling services over telecoms and ISPs. QoS features include Layer 4 traffic classifiers and bandwidth constraints, which are particularly useful for multi-tenant units, business units, Telco applications and network service providers. It also enables the industrial environment to take full advantage of limited network resources and guarantees the best performance in VoIP and video conferencing.

Flexible and extensible 10Gb Ethernet solution

10G Ethernet is a big leap in Ethernet evolution. Each of the 10G SFP+ slots in the IGS-6325-20S4C4X supports triple speed and 10GBASE-SR/LR, 2500BASE-X or 1000BASE-SX/LX. With a 4-port 10G Ethernet connection capability and an additional 4-port 1G Ethernet connection capability, an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion. IGS-6325-20S4C4X provides wide bandwidth and powerful processing capability.

Intelligent SFP diagnostic mechanism

The IGS-6325-20S4C4X supports SFP-DDM (Digital Diagnostic Monitor) functionality, which makes it easy for the network administrator to monitor real-time SFP parameters such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

• Redundant power supply: no
• Management: yes
• Type of root ports: SFP / SFP
• Root port throughput: Gigabit Ethernet
• PoE support: no
• Quantity in collective packaging: 5 pcs
• Height: 4.42 cm
• Width: 44.4 cm
• Depth: 20 cm
• Weight: 2.935 kg
• Manufacturer details: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@ planet . com.twwww. planet . com.tw +886222199518
• Details of the responsible person in the EU: Konsorcjum FEN Sp. z o.o. Poland Poznań 60-415 Czarnkowska 13 Konsorcjum Fen sp. z oogpsr@fen.pl https://b2b.fen.pl /+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605284028
Parametry	Manufacturer code	IGS-6325-20S4C4X
