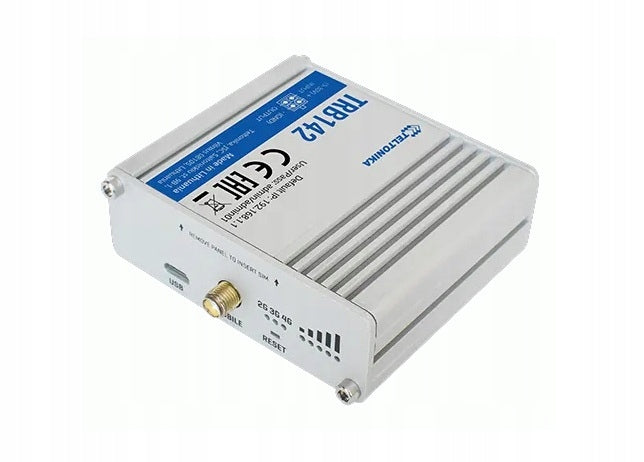

Pramoninis 4G/LTE maršrutizatorius Teltonika TRB142

Trumpai apie prekę

Prekė: Pramoninis 4G/LTE maršrutizatorius Teltonika TRB142. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Teltonika
• Modelis: 569554963

Product description:

• Mobile signal:

- Mobile module: 4G (LTE) - Cat 1 to 10 Mbps, 3G - up to 42 Mbps, 2G - up to 236,8 kbps

- Bridge mode: direct connection (bridge) between the Internet service provider and the device on the LAN

- Status: signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received

- SMS/connection: SMS status, SMS configuration, call tools

• Network data:

- Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT

- Routing type: static

- Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link control, Wget

- Firewall functions: port forwarding, traffic rules, custom rules

- DHCP: static and dynamic IP address allocation

- DDNS: supports up to 25 service providers automatically, the ability to manually configure subsequent ones

• Safety:

- Authorization: pre-key, digital certificates, X.509 certificates

- Firewall: preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; NAT; NAT-T

- Access control: flexible access control for TCP, UDP, ICMP, MAC address filter

• VPN data:

- OpenVPN: multiple clients and server running simultaneously, 12 encryption methods

- OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

- IPsec: IKEv1, IKEv2, supports up to 5 IPsec VPN tunnels, 5 encryption methods (DES, 3DES, AES128, AES192, AES256)

- GRE: GRE tunnel

- PPTP, L2TP: client/server services can run simultaneously

• Serial communication:

- Modes: console, OverIP, modem (full or partial control), Modbus RTU master, Modbus gateway, NTRIP client

• Modbus communication protocol data:

- Modbus TCP Slave:

> range of ID: 1-255

> remote access: permission to access via WAN

> Custom registers: Modbus TCP custom registry block, which allows you to read/write a file in the router and can be used to extend the functionality of Modbus TCP slave

Modbus TCP Master:

> support functions: 01, 02, 03, 04, 05, 06, 15, 16

> support data formats: 8 bits: INT, UINT; 16 bits: INT, UINT (MSB or LSB first); 32 bits: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

- Modbus RTU Master

> Supported transmission speeds: 300 to 115200

> Supported functions: 01, 02, 03, 04, 05, 06, 15, 16

> Supported data formats: 8 bits: INT, UINT; 16 bits: INT, UINT (MSB or LSB first); 32 bits: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

> Number of data bits: 5 to 8

> Number of stop bits: 1 or 2

> Parity: None, Even, Odd

> Flow control: None, RTS/CTS, Xon/Xoff

- Modbus data to server:

> protocol: HTTP(S), MQTT

• Monitoring and management:

- Network interface: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, system log, kernel log (kernel)

- FOTA: firmware update from server, automatic notification

- SSH: SSH (v1, v2)

- SMS: SMS status, SMS configuration

- MQTT: MQTT broker, publisher of MQTT

- JSON-RPC: API management over HTTP/HTTPS

- Modbus: Modbus TCP status/control

• Parameters of components:

- processor: ARM Cortex-A7 1,2 GHz

- RAM: 128 MB (50 MB available for user space)

- flash memory: 512 MB (70 MB available for user space)

• Software and configuration:

- Network interface: software update from file, server update check, configuration profiles, configuration backup, restore point

- FOTA: software update / configuration from server

- RMS: software update/configuration for multiple devices

- Preservation of settings: software update without losing the current configuration

• Software customization:

- Operating System: RutOS (OpenLinux-based Linux operating system)

- Supported languages: Busybox shell, Lua, C, C++

- Development tools: SDK with provided build environment

• Inputs/Outputs

- Input: 2x digital input/output

- Events: SMS status

• Power supply:

- Connector: 4-pin industrial DC socket

- Input voltage range: 9-30 V DC (4-pin industrial socket), reverse polarity protection, surge protection > 33 VDC 10μ max

- Power consumption: < 5 W

• Physical interfaces (ports, LEDs, antennas, buttons, SIM card slots)

- RS232: RS232 interface, DB9 socket, 5 pin configuration with flow control

- Inputs/Outputs: 2 input/output pins on a 4-pin power connector

- USB: virtual network interface via USB port

- LEDs: 3x connection status, 5x connection strength, 1x power supply

- SIM card slots: 1x SIM slot (Mini SIM - 2FF), 1,8 V / 3 V

- Power supply: 4 pin power connector with 2 customizable pins for digital I/O

- Antenna: 1x SMA for LTE

- Buttons: reset - factory reset button

Physical parameters:

• Housing Material: Aluminum
• Dimensions: 60 mm x 70 mm x 18 mm (H) x W x D. )
• Weight: 135 g
• Mounting options: freestanding product / mounting on the bottom or side DIN rail / possibility of mounting the printed circuit board itself directly on the DIN rail

Working environment:

• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% non-condensing
• Degree of protection: IP30

Standards and certificates:

• Regulatory: CE/RED, EAC, RoHS, WEEE
• Electromagnetic interference standards (EMI)

- Standards: ETSI Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, ETSI Draft EN 301 489-52 V1.1.0

- ESD: EN 61000-4-2: 2009

- RS: EN 61000-4-3: 2006 + A1: 2008 + A2: 2010

- EFT: EN 61000-4-4: 2012

- Surge protection: EN 61000-4-5: 2014

CS: EN 61000-4-6: 2014

- DIP: EN 61000-4-11: 2004

• Radio Frequency (RF) standards:

- Standards: EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

• Security standards:

- IEC 62368-1: 2014 (second edition), EN 62368-1: 2014 + A11: 2017

- EN 50385: 2017

- EN 62232: 2017

Content of the package:

• Gate TRB142
• Power supply
• 1x LTE antenna (magnetic holder, male SMA, 3m cable)
• Micro-USB cable (0,8m)
• 1x hex key
• Quick Start Guide

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Teltonika
Parametry	Mode of operation	Bridge
Parametry	Wireless operation standard	802.11n (Wi-Fi 4)
Parametry	Internal modem	4G LTE
Parametry	LAN port operating standard	10/100 Mbps
Parametry	EAN (GTIN)	5908066308694
Parametry	Manufacturer code	569554963
Parametry	Model	569554963
Parametry	The highest standard supported	802.11b
