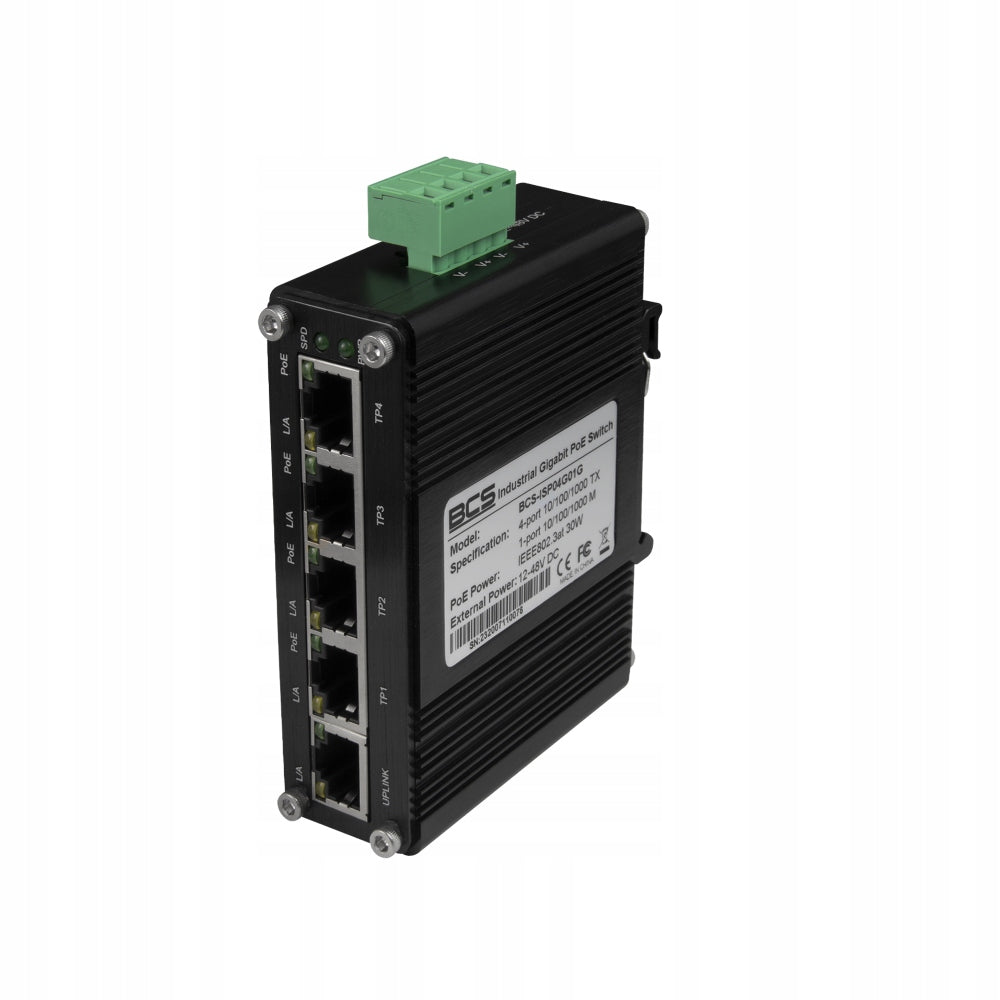

Pramoninis 4 jungčių PoE komutatorius BCS-ISP04G01G

Trumpai apie prekę

Prekė: Pramoninis 4 jungčių PoE komutatorius BCS-ISP04G01G. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890710764

Unmanaged industrial switch BCS -ISP04G01G BCS Universal brand.

It has 4 RJ45 PoE 1Gbps ports and 1x Uplink 1Gbps. Dedicated to work in an IP monitoring system.

The device ensures smooth network transmission at PoE speeds of 10 / 100 / 1000 Mb/s .

Provides electronic protection for connected cameras.

PoE technology enables simultaneous data transmission and powering of PoE cameras over the same UTP cable. This reduces the number of cables in the installation.

Switch power supply 12~48V DC .

CHARACTERISTIC

• PoE switch,
• Switch type: Unmanaged,
• Number of ports: 4x RJ45 PoE 1Gbps and 1x RJ45 Uplink 1Gbps,
• Bandwidth: 20Gbps,
• Max. power: 120W(48VDC) / 90W(24VDC) / 60W(12VDC),
• Operating modes: Standard,
• Auto MDI/MDIX function,
• Mounting: DIN rail, wall,
• Power supply: 12~48V DC.

TECHNICAL DATA Number and type of ports 4×RJ45 1Gbps PoE

1xRJ45 1Gbps Uplink Transfer 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX Packet forwarding rate 1.48Mpps Throughput 20Gbps Standard IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3az / 802.3af / 802.3at MAC table 8K MTBF 200000h Packet buffer memory 1Mbit Operating modes Standard: Up to 100m LED indicator PWR (solid green): switch power connected,

LINK/ACT(yellow): connected device,

PoE(green): PoE power supply PoE switch power 120W(48VDC) / 90W(24VDC) / 60W(12VDC) Mounting DIN rail housing Humidity Max. 90% Power supply 12 ~ 48V DC Operating temperature -40°C ~ +80°C Weight 250g Dimensions 95 × 70 × 29mm

11776

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	BCS
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	4
Parametry	EAN (GTIN)	5904890710764
Parametry	Manufacturer code	5904890710764
