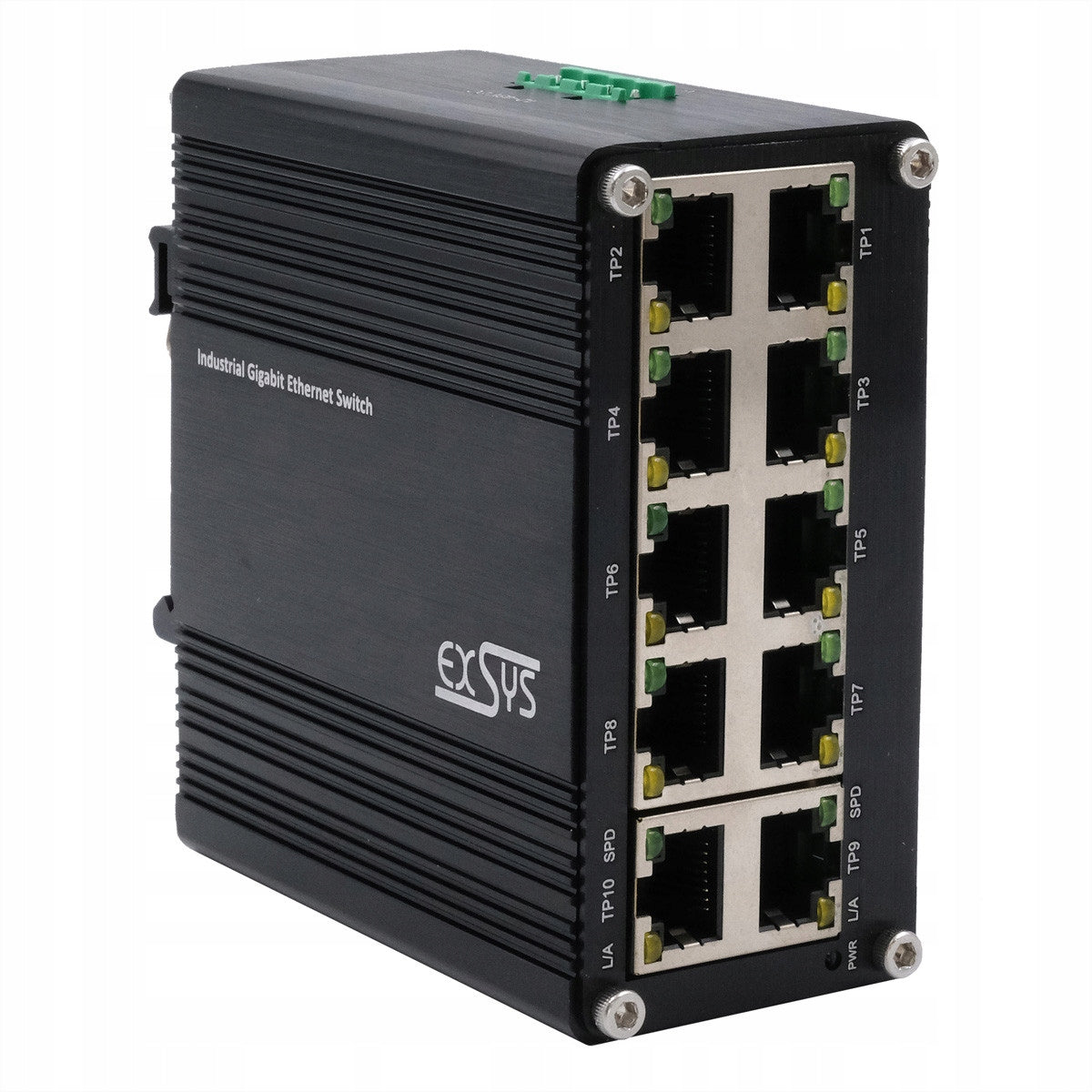

Pramoninis 10 jungčių Ethernet komutatorius EXSYS EX-62025

Trumpai apie prekę

Prekė: Pramoninis 10 jungčių Ethernet komutatorius EXSYS EX-62025. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Exsys
• Modelis: 15.06.3451

Product number: 15.06.3451

Mini 10 Port Industrial Gigabit Switch Unmanaged

Probably the smallest 10-port EX-62025 gigabit switch suitable for industrial applications, it offers full gigabit performance on all 10 ports despite its very small external dimensions.

With a robust metal housing and an extended operating temperature range of -40°C to 80°C, it is suitable for a wide range of applications, even in harsh environments.

The power supply is provided by terminal block (12~48VDC) and can also be redundant to reduce operational interference.

The EX-62025 supports Auto-MDI/MDI-X and Auto-Negotation. The set includes a DIN cabinet mounting kit (pre-assembled).

• 10-Port 10/100/1000T Gigabit Ethernet
• Auto-MDI/MDIX eliminates the need for patch cables
• Supports auto-negotiation and 10/100 Mbps half/full duplex and 1000 Mbps full duplex
• Supports jumbo frames up to 9 KBabytes
• Plug-and-play, no setup or installation required
• Terminal block for redundant DC input, 2x 12 V to 48 VDC
• Rugged, very compact metal housing, IP40
• Extended operating temperature range from -40°C to +80°C
• DIN rail kit included

• Color: Black
• Manufacturer: EXSYS
• Product Type: Gigabit Ethernet Switch
• Package weight: 0.469 kg, 0.469
• Width: 88 mm
• Height: 45 mm
• Weight: 450 g
• Depth: 100.9 mm
• Scope of delivery: EX-62025, DIN rail kit (pre-assembled) instruction manual
• Product group: Network switches
• Package width: 140 mm
• Packaging height: 80 mm
• Packaging depth: 190 mm
• Number of ports: 10
• Working temperature min: -40 °C
• Working temperature max: 80 °C
• design type: DIN rail
• Network standard: Gigabit Ethernet
• LAN (Mbit/s): 10/100/1000
• Gigabit Ethernet RJ-45 port: 10
