POE maitinimo šaltinis BCS-IP5/E-S-II, tinkamas kameroms ir stebėjimo įrangai

Trumpai apie prekę

Prekė: POE maitinimo šaltinis BCS-IP5/E-S-II, tinkamas kameroms ir stebėjimo įrangai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890706293

Description:

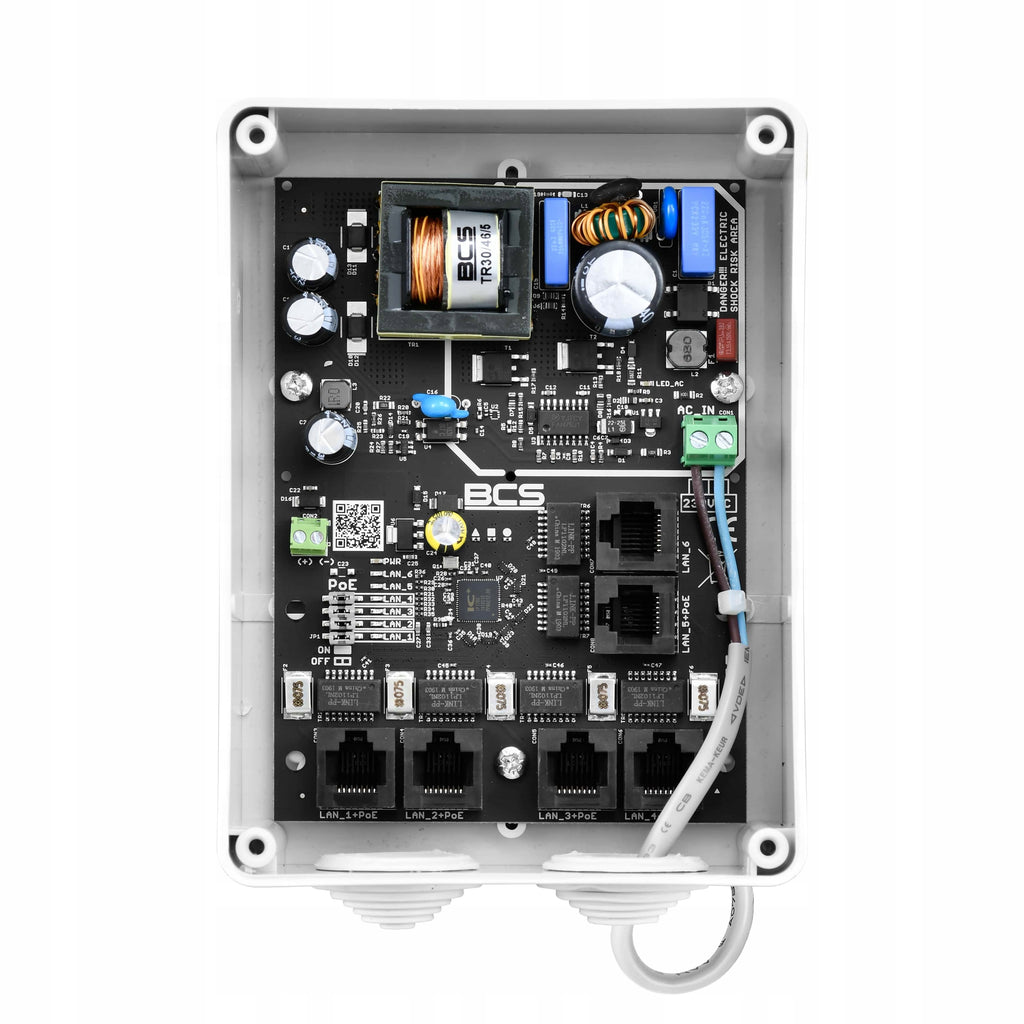

External power supply equipped with a PoE switch designed to work with small IP monitoring

Product Features:

• modular PoE power supply system,
• built on the basis of PoE switch and switching power supply,
• The set is able to power up to 5 PoE IP cameras.
• Built-in PoE Switch:
• 5-port passive PoE switch - 10/100 Mbps speed
• The switch has 5 outputs for IP cameras and 2 LAN / DVR outputs.
• possibility of expansion of up to 8 cameras by adding BCS-xPoE6 module

Technical specification:

• small size
• possibility of powering 5 PoE 802.3at/af or PoE PASSIVE receivers
• possibility of powering other devices powered from 48 V voltage (screw connector)
• Polymer fuses for each PoE (auto return)
• possibility of switching off the power supply on selected PoE ports
• up to 36W of power on PoE ports
• low heating power supply efficiency (>90%)
• cable entry through rubber end caps: 2x29mm
• 2 handles included for mounting the housing without violating the IP55 degree of protection
• possibility of introducing cables with RJ-45 plugs

______________________________________________________

Security compliance and alerts (GPSR)

Use only with the original power supply or power supply provided by the manufacturer. PoE ports are designed exclusively to power compatible devices; do not connect devices not adapted to PoE. Install in a dry, airy place, on a stable surface. Do not cover the ventilation openings. Do not expose to water, moisture, dust or direct sunlight. Avoid installation near heat sources; ensure free air circulation. Connection is made with the power supply disconnected. It is recommended to use surge protection to secure the switch and connected devices.
