PoE komutatorius ULTIPOWER PRO0208afat, 10 RJ45 lizdų (8 PoE+)

Trumpai apie prekę

Prekė: PoE komutatorius ULTIPOWER PRO0208afat, 10 RJ45 lizdų (8 PoE+). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: PRO0208afat

Product code: PRO0208AFAT

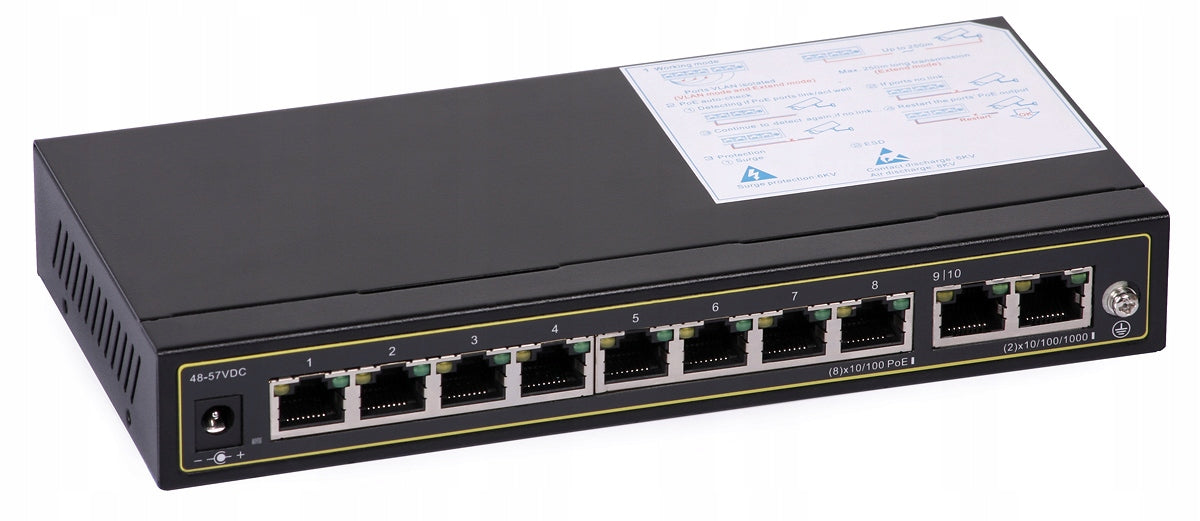

PoE switch ULTIPOWER PRO0208afat 802.3af/at 120W 10x RJ45 (8xPoE), PoE Auto Check

The ULTIPOWER PRO0208afat PoE Switch is a desktop device that provides seamless network transmission. It allows you to establish connections at speeds of 10 and 100Mbps. It has 10 RJ45 ports supporting automatic negotiation of connection speeds. 8 of them support Power over Ethernet (PoE). The switch automatically detects PD devices operating in the IEEE 802.3af or 802.3at standard and supplies them with power. This allows you to extend the range of the network in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc. The maximum total power of powered devices must not exceed 120 W.

The device has the following additional functions:

• Extended function enabling power supply of devices connected with twisted pair up to 250 m long,
• The PoE Auto Check function automatically performs a current restart of the connected device in case of its suspension. (ATTENTION! When performing software updates on connected devices, this feature should be disabled).

Distinguishing features:

• 10 ports 10/100 Mbps
• 8 PoE ports, data transfer and powering the device using one cable,
• No assembly or configuration is required,
• Single PoE port transfers power up to 30W
• Maximum total power of powered devices 120 W
• Support for PoE-powered devices operating in accordance with IEEE802.3af/at standard
• Support auto-learning and auto-aging MAC addresses (1K size table)
• LEDs informing about the status and speed of the connection, its activity and power supply
• Extended function enabling power supply of devices connected by twisted pair with a length of up to 250 m,
• The PoE Auto Check function automatically performs a current restart of the connected device in case of its suspension.

802.3af a 802.3at

The most popular PoE 802.3af power standard is used e.g. in IP cameras. It allows you to power devices with a voltage from 44 to 57 V at a maximum power of 15,4 W. The 802.3at standard allows you to power devices with an input voltage of 50 - 57 V and a power not exceeding 25,5 W. Examples of devices powered by the 802.3at standard are: printers, rotary IP cameras and switches.

Technical parameters:

• Name: ULTIPOWER PRO0208afat
• Standards and protocols: IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
• Redirection speed:
• 10BASE-T: 14880pps/port
• 100BASE-TX: 148800pps/port
• Transmission Method: Store-and-Forward
• Ports:
• 8 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX automatic patching) including 8 PoE ports (max 120W)
• 2 ports 10/100/1000 Mbps
• Network Wiring:
• 10Base-T:
• UTP cable cat. 3, 4 or 5 (up to 100m)
• STP cable EIA/TIA-568 100Ω (up to 100m)
• 100Base-Tx:
• UTP cable cat. 5 or 5e (up to 100m)
• STP cable EIA/TIA-568 100Ω (up to 100m)
• In Extended cat.5e mode 250 m
• LED Indicators: Power, Link/Act, PoE Status
• Certificates: CE
• Dimensions [mm]: 200x95x30
• Working environment:
• Permissible operating temperature: -10...50℃
• Permissible storage temperature: -40...85℃
• Permissible air humidity: 10...90%, non-condensing
• Permissible storage humidity: 5...90%, non-condensing
• Power supply: AC 230V / 48-57V
• Other:
• Compatible with IEEE 802.3af/at PoE (PD) powered devices
• Support for auto-learning and auto-aging MAC addresses
• Support bandwidth control standard for full duplex mode (IEEE802.3x) and back pressure function for half duplex mode
• Extended function
• PoE Auto Check function

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Product weight with unit packaging	0 kg
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5907634599663
Parametry	Manufacturer code	PRO0208afat
Parametry	Packaging status	original
