PoE komutatorius BCS-UPS/IP4/Z/E-S

Trumpai apie prekę

Prekė: PoE komutatorius BCS-UPS/IP4/Z/E-S. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890706170

Switch Poe BCS-UPS/IP4/Z/E-S

BCS POWER

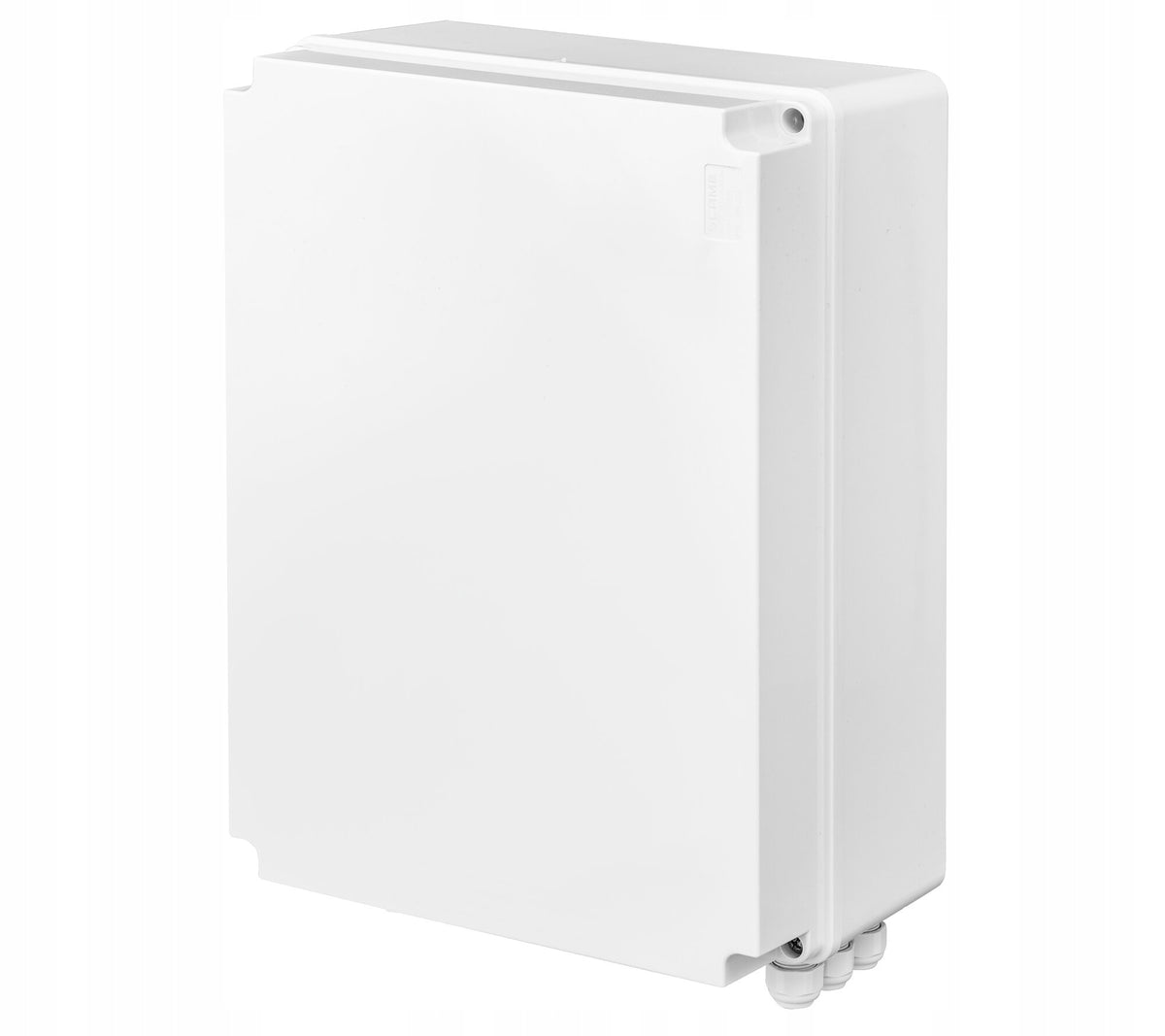

BCS-UPS/IP4/Z/E-S is a set for buffer power supply of IP CCTV cameras. The device is a convenient solution to the problem of buffer power supply of surveillance cameras requiring uninterrupted operation. The device is designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standard. In addition, it has 1 free space for the 7Ah battery, allowing your monitoring system to work during a power failure. LONG RANGE mode allows you to increase the transmission range to 280m using standard UTP twisted pair cable. The system is adapted to work with lead-acid or dry SLA batteries. The device is enclosed in an external housing BCS-XL, which is a convenient solution to the problem of protection of devices and cable connections mounted in external conditions. High-quality plastic provides resistance to UV radiation and other adverse weather conditions.

Features of the set:

• Buffer power supply for 5 receivers PoE 802.3at/af or PoE PASSIVE
• space for 1 7 Ah battery
• up to 40W of power on PoE ports
• possibility of data transmission on 280m (in LONG RANGE mode)
• possibility of switching off the power supply on selected PoE ports
• independent electronic fuses for each PoE channel (auto return)
• low heating inside the housing thanks to high efficiency of the power supply (> 90%)
• easy and quick start-up of without the need to configure parameters
• easy expansion of the system by attaching additional switches
• cable input through glands mounted in the housing: 5xM16 and 1xM20
• includes 4 handles for mounting the housing without violating the IP56 degree of protection
• possibility of mounting on poles or lanterns with an adapter

• Warranty: 24 months
