PoE komutatorius, 8 PoE+ (100 Mb/s) prievadai, 2 gigabitiniai uplink

Trumpai apie prekę

Prekė: PoE komutatorius, 8 PoE+ (100 Mb/s) prievadai, 2 gigabitiniai uplink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: Przełącznik PoE, 10-portowy

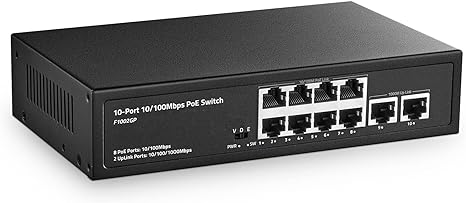

YuLinca PoE Switch, 10-Port Poe Switch (8 Ports 100M PoE+ | 2 Gigabit Uplink), 802.3af/at PoE, Metal Unmanaged Plug&Play Ethernet Switch without Fan

10 ports Contains 8 10/100Mbps POE ports and 2 gigabit links sending 100/1000Mbps. The sending link is gigabit ports, with a speed greater than 100M, provides the use of POE 1-8 port bandwidth, all ports support the port automatically adapting.

IEEE 802.3af/at POE: IEEE 802.3af/at support, the maximum power of each port has reached 30W. Maximum support High output power 96W, designed specifically for high power POE devices such as high power cameras/access points, etc. Compatible with non-POE devices to provide network *Note: will not power 24V passive PoE and inne devices than PoE. *

Vlan isolation and distance increase Ports 1-8 support VLAN port isolation and cannot communicate with each other, they only communicate with 9-10 port backlink, which can reduce network congestion, improve performance and security; ports 1-8 support POE distances up to 250 meters, the speed is 10Mbps.

Unmanaged Plug & Play function Automatic power detection of POE devices, built-in power module, just connect the power cord and connect the device with a network cable, no inna configuration is required, the LED indicator on the panel shows the status, use and maintenance are very simple.

Widely used Metal housing, quiet, fanless, double side vents; supports installation on desktop/wall/stand. Stable POE and switching chips can be used in a variety of home, office and business networks, including computer internet, security monitoring, wireless network coverage, multi-device transmission access, etc.

Main features:

10-port PoE switch with 8*10/100M PoE ports and 2*1000Mbps Uplink ports. Increases the network transmission distance limit from 100 m twisted pair to 250 m via PoE extension function to meet the needs of remote and high-speed Ethernet users. The network provides a seamless connection, and the PoE power port can automatically detect and power powered devices compliant with IEEE802.3af/IEEE802.3at standards. The inne -POE device intelligently detects the lack of power and only transmits data.

• 8*10/100M PoE ports + 2*10/100/1000M Ethernet Uplink ports.
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
• Ethernet port supports 10/100/1000M adaptive and POE functions.
• Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.
• Support automatic port reversal (Auto MDI/MDIX).
• Delivered automatically to adaptive devices.
• Panel metrics monitor status and help analyze failures.
• Support VLAN mode, normal mode and extended mode.
• Lightning overvoltage: general mode 6 kV, differential mode 4 kV, ESD 8 kV.

Automatic detection of PoE devices

With the ability to automatically detect PD (PoE) devices, the PoE switch is able to check whether the connected device is IEEE802.3af/at compliant. If the device is not IEEE802.3af/at compliant, only network data will be transmitted via LAN cable to avoid damage due to incorrect power transmission.

Extension of distance 250 m

It supports PoE distance up to 250 meters, exceeding the limit of 100 meters using the DIP switch in “Expansion” mode and reducing the PoE port speed up to 10 Mbps.

Port-based VLAN

With port isolation mode, it easily splits traffic into ports 1-8 to prevent multicast or IP camera broadcast storm from affecting each other.

Connect and play

The 10-port PoE switch is designed to simply increase the density of your ports. Installation is done in plug and play mode, no special requirements or configuration required, making installation very easy.

Double gigabit data transfer ports

The dual-function master link is a combination of two 10/100/1000TX copper ports. You can use one of these two ports at the same time. This additional flexibility of the backlink allows for the use of high density. You can use two ports to connect your router and NVR.

Unique LED indicator design

Easily check operating status and troubleshoot ports with the power/connection indicator. PWR (Power Supply), 1-10 Green (Link and Data).

Fanless and noise-free design

The fanless design ensures quiet operation without disturbing a quiet home or office, and greater reliability over time with fewer damaged parts.

Support for wall mounting

The wall mount option gives you more choice when it comes to finding the right mounting spot.

Lighting protection

The PoE switch with 4KV power port surge protection and 2KV network port surge protection allows you to adapt to harsh outdoor conditions and ensure the reliability of an uninterrupted network system.

Product specification

• Ethernet: 8-port 100M PoE switch with 8-port PoE
• Switching performance: 5,6 Gbps
• Performance: 4,166Mpps
• MAC address: 2 thousand
• Jumbo Rama: 9216 bytes
• Network protocol: IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (flow control)
• PoE protocol: IEEE802.3af (15,4 W) IEEE802.3at (30 W)

• Network medium: 10Base-T: Cat3, 4, 5 or higher UTP (≤100 m) 100Base-TX: Cat5 or higher UTP (≤ 100 m) 1000Base-TX: Cat5 or higher UTP (≤ 100 m)
• Working environment: Working temperature: -20 ~ 50°C Storage temperature: -40 ~ 85°C Operating humidity: 10% ~ 90%, non-condensing Storage temperature: 5% ~ 90%, non-condensing Working height: maximum 10 000 feet storage height: maximum 10 000 feet
• Size: Product Dimensions (L. *width *height ): 200 mm * 118 mm * 44 mm Package Dimensions (L) * W. * H. ): 245 mm * 190 mm * 60 mm NW: 0,6 kg GW: 0,9 kg
• Voltage: Input voltage: AC 100-240 V Power supply: 52V2.3A
• LED indicators: PWR (power supply), SW (DIP), 1-10 Green (Link and data)
• Package List: Switch 1 Pack, Power Cord 1 Pack, User Manual 1 Pack
• DIP switch: V: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, but can only communicate with the UP-link port. TD: normal mode, all ports can communicate with each other, E: link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, transmission rate is 10M
