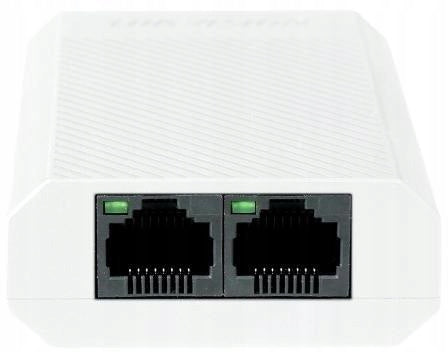

PoE kartotuvas Hikvision DS-3E0503DP-E/R

Trumpai apie prekę

Prekė: PoE kartotuvas Hikvision DS-3E0503DP-E/R. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3E0503DP-E/R

108.76

56625

Hikvision DS-3E0503DP-E/R PoE repeater

Model: DS-3E0503DP-E/R

Key features

• Gigabit PoE Repeater
• 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT port
• Compliance with IEEE 802.3af/at standard
• PoE output power up to 30 W for the entire device
• PoE extension for longer transmission distance and power supply
• Plug and play, no configuration required
• Installation on a desktop computer

Technical specifications

Model

DS-3E0503DP-E/R

Case

Plastic material, fanless design

Net weight

0.058 kg (0.128 lb)

Dimensions (width × height × depth )

88.0 mm × 22.0 mm × 58.0 mm (3.46'' × 0.87'' × 2.28'')

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity

5% to 95% (non-condensing)

Relative humidity

5% to 95% (non-condensing)

Max. Power consumption

1.9 W

Power consumption in standby mode

≤1.55W

Mounting type

Desk-mounted

Surge protection

2 kV

Network parameters

Ports

1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT port

MAC address table

2 K

Switching performance

6 Gb/s

Packet forwarding speed

4.46 Mp/s

Internal cache

1 Mb

PoE power supply

PoE Standard

IEEE 802.3af, IEEE 802.3at

PoE port

PoE: Ports 1 to 3

Max. Port power supply

30 W

PoE power budget

30W

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Security

UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)

Biochemical test

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
