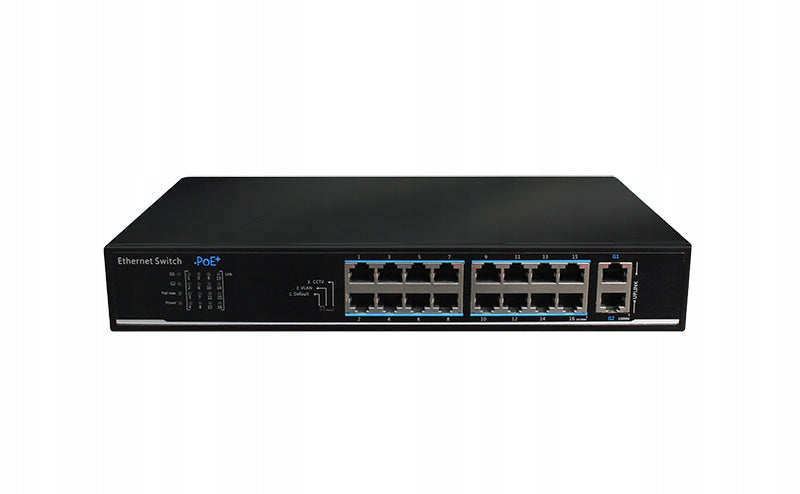

PoE jungiklis, 16 prievadų, UTEPO kameroms

Trumpai apie prekę

Prekė: PoE jungiklis, 16 prievadų, UTEPO kameroms. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Utepo
• Modelis: UTP1218-PSB150

PoE switch for desktop/wall computers/cabinet mountable.

UTP1218-PSB150 is a 16-port 10/100Mbps PoE Ethernet Switch + 2-port 10/100/1000Mbps RJ45 UPLINK. The switch provides 16 ports of 100Mbps Ethernet RJ-45 downlink and 2 ports Gigabit Ethernet RJ-45 uplink. All downlink RJ-45 Ethernet ports support Power-over-Ethernet (PoE+) technology and provide up to 30W of power per port. The switch supports 3 operating modes via DIP switch: Default, VLAN and CCTV. It can be widely used in video security monitoring systems, network projects, etc.

Interfaces:

• 16 ports 10/100Base-TX PoE+ RJ-45

• 2 ports 10/100/1000Base-T RJ-45

Power over Ethernet (PoE+)

• Power up to 16 IEEE 802.3af/at compliant devices

• Each PoE port supports a maximum power of 30W

• Circuit protection to prevent port power interference

• Long distance power supply, up to 250 meters

• Support PoE watchdog in VLAN and CCTV mode

Support 3 operating modes with DIP switch

• Default: all ports can communicate, transmission distance: 0~100m.

• VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports.

Transmission distance: 0 ~ 100 m.

• CCTV: transmission range is increased to 250 m, but speed is limited to 10Mbps. High-performance design

• 6kV surge resistance

• 6 kV contact discharge, 8 kV air discharge ESD protection

• Static routing

• Fan-free metal housing design

• RACK/desktop installation

Technical data:

• DOWNLINK ports 16*10/100Mbps PoE+ RJ-45 (Auto-MDI/MDI-X)
• UPLINK ports 2*10/100/1000Mbps RJ-45 (Auto-MDI/MDI-X)
• Dimensions (W. *main *height ) 294 mm * 180 mm * 44 mm
• Weight 1,6 kg
• Power supply 100 ~ 240 V current, Power consumption ≤15 W (not including PoE)
• Assembly in cabinet RACK/on wall/desktop
• Performance 7,2 Gbps
• Table MAC 8k
• PoE standard IEEE 802.3af/at
• PoE budget Max. 30 W for each port, max. 135W for the whole switch
• Compliance with standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Overvoltage protection: 6KV, IEC61000-4-5; ESD: 6KV/ 8KV, IEC61000-4-2
• Working temperature -5 ℃ ~ 45 ℃
• Storage temperature -40 ℃ ~ 75 ℃
• Relative humidity 5%~95% (non-condensing)
• CE, FCC certificates
