Trumpai apie prekę
Prekė: PoE ilgintuvas Pulsar EXT-POE3DIN. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Pulsar
- Modelis: EXT-POE3DIN

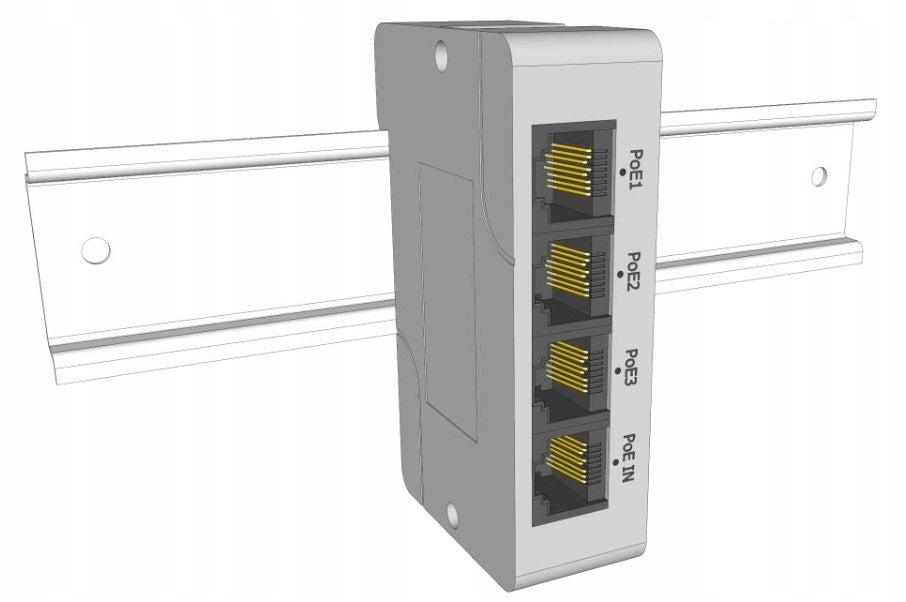

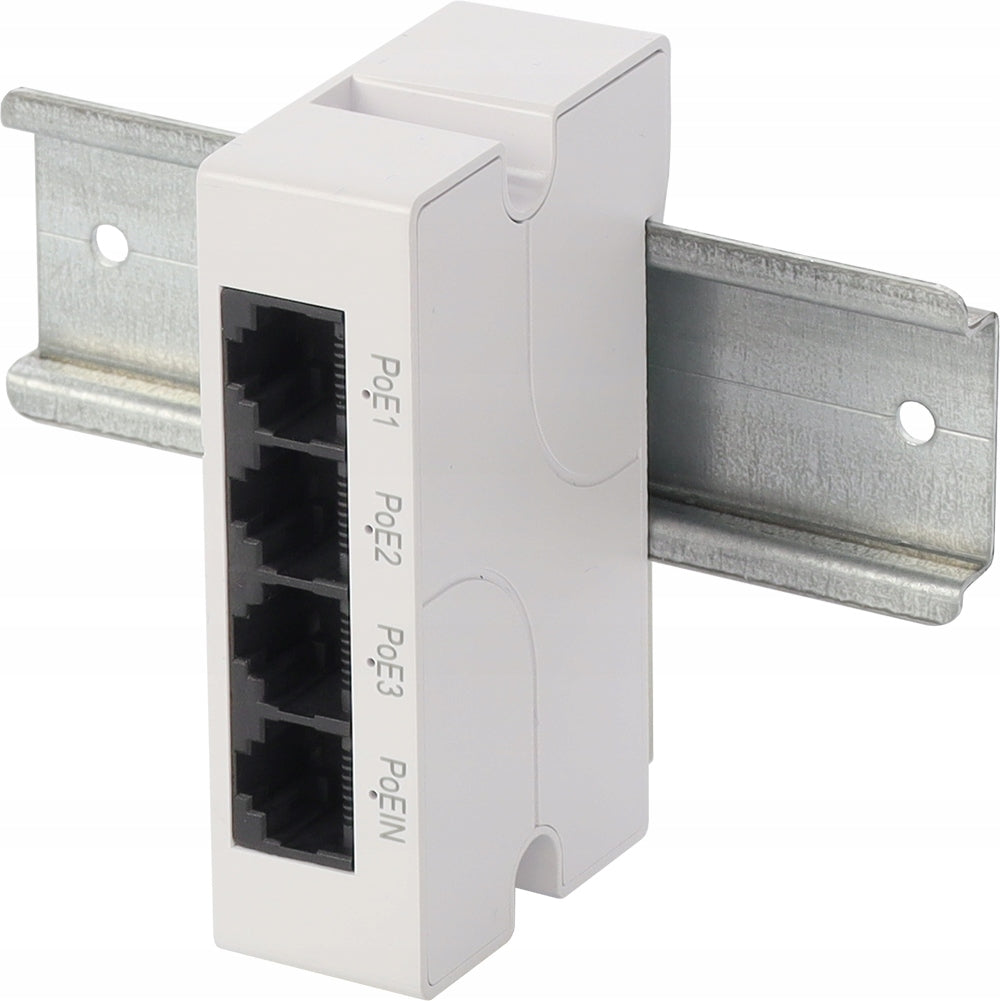

Extender Pulsar EXT-POE3DIN
- Input voltage range 48 - 57 V DC
- Power supply from PoE switch
- IEEE802.3af/at compliant PoE IN input
- OUT 1-3 PoE outputs compliant with IEEE802.3af standard
- Increases Ethernet data and PoE power range by another 100 meters
- Designed to work in 10/100 Mbps networks
- Optical signaling of operating status
- Security:
- overload OLP
- anti-short-circuit SCPs
Extender EXT-POE3DIN is a device designed to increase the transmission distance of PoE power and Ethernet data using UTP cat. 5/5e for another 100m. The extender is powered from a PoE switch or other PoE-compliant device (PoE IN input). Output voltage and data are available on PoE OUT 1 – 3 outputs, to which cameras or other IP devices using PoE power must be connected. The maximum load current is 0,3A (0,3A/port). 1/2 (-) 3/6(+) pairs are used to transmit power on PoE OUT1, PoE OUT2 ports.
Technical data:
- Power supply Compatible with 802.3af/at (48 – 57 V DC)
- Power consumption by module systems < 20mA
- Module power 15 W max.
- Ports 4 ports 10/100 Mbps (1 x PoE IN + 3 x PoE OUT) with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
- Output voltage Compliant with 802.3af
- Output current 0,3A/port (∑=0,3A max.)
- Input power pairs PoE IN
- 1/2 (+) 3/6(-)
- 4/5 (+) 7/8 (-)
- Output PoE power pairs OUT 1/2 1/2 (-) 3/6 (+)
- Overload protection OLP 105% ÷ 150% rated output current, automatic return
- SCP short-circuit protection 105% ÷ 150% rated output current, automatic return
- Optical work signaling
- LED (green) – LAN connection status (individual outputs):
- Lights up - connected device 10/100 Mbps
- Pulses - data transmission
- Working conditions -10°C – 40°C
- Dimensions (LxWxH) 50 x 23 x 81 [+/- 2mm]
- Attachment For TH35 rail or mounting screws x2 (73mm spacing)
- Connections: -in/out. POE RJ45 8P8C
- Net weight/gross 0,05 / 0,06 [kg]
- Storage temperature -20°C...+60°C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Pulsar |
| Parametry | Product weight with unit packaging | 0.06 kg |
| Parametry | Number of ports | 4 |
| Parametry | EAN (GTIN) | 5902135325094 |
| Parametry | Manufacturer code | EXT-POE3DIN |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
