Plėtimo plokštė X300, skirta Raspberry Pi 2 ir 3 B

Trumpai apie prekę

Prekė: Plėtimo plokštė X300, skirta Raspberry Pi 2 ir 3 B. Kategorija: Priedai.

• Gamintojas: DFRobot
• Modelis: DFR0358

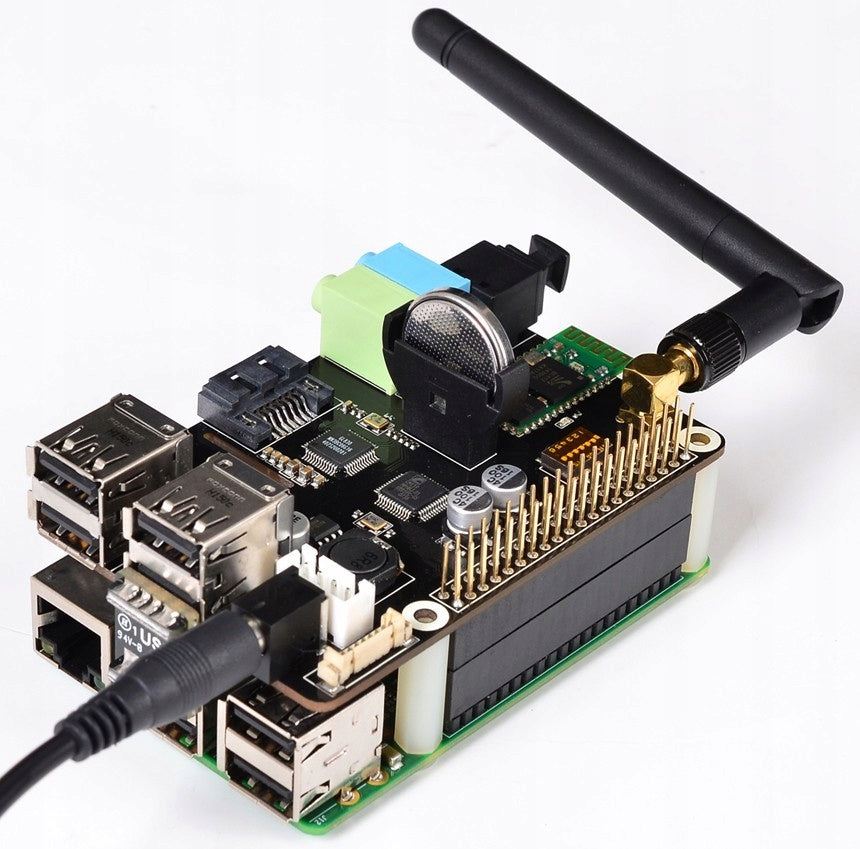

X300 - expansion board for Raspberry Pi 2 and Raspberry Pi 3 B

Description

The X300 expansion board works with Raspberry Pi Model B+, Raspberry Pi 2 Model B and Raspberry Pi 3 model B X300 contains many extensions, m.in.: RTC clock, audio input/output, USB hub, Bluetooth module, WIFI module and SATA interface.

Attention!

With the power supply included with the X300 board, do not attach power to the Raspberry Pi, as this can damage the X300 or Raspberry Pi!

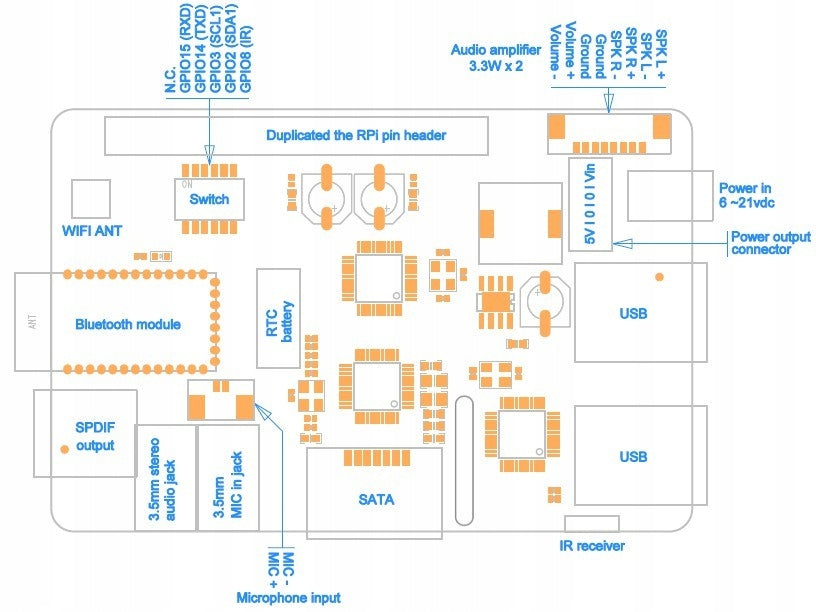

Properties

• Built-in step-down converter 5V 4A
• SATA interface, thanks to it you can join Raspberry Pi e.g. hard drive
• Audio connectors :
• Jack 3.5 mm for microphone
• Jack 3.5 mm stereo - headphone output
• SPDIF output
• Audio connector with microphone input
• Audio connector with amplifier output 2x3.3W
• Wireless connectivity :
• WiFi (IEEE 802.11b/g/n) with external antenna
• IR receiver (38KHz)
• Bluetooth Module
• 3-Port USB Hub
• Real-time clock (RTC) based on DS3231SN chip with CR2032 battery
• Other:
• Camera Tape Hole
• Duplicate 40-pin GPIO connector so you can attach expansion boards
• Power supply: 6-18 V

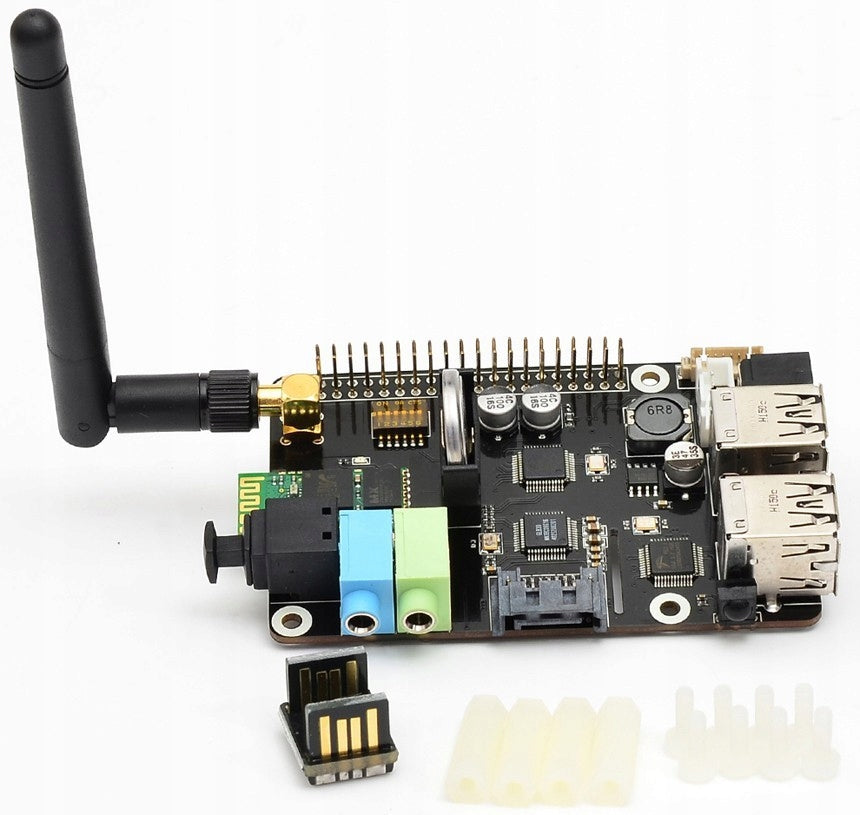

Comes with

• Board X300
• USB connector
• WiFi antenna
• Plastic bushings (M3 x 20mm) x 4
• Plastic Screws (M3 x 6mm) x 8

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	DFR0358
Parametry	Manufacturer	DFRobot
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5902186311800
