Plėtimo modulis Raspberry Pi su 5G (B) SIM8202G-M2, Waveshare 21708

Trumpai apie prekę

Prekė: Plėtimo modulis Raspberry Pi su 5G (B) SIM8202G-M2, Waveshare 21708. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 21708

Overlay HAT SIM8202G-M2 5G (B) for Raspberry Pi - Waveshare 21708

Description

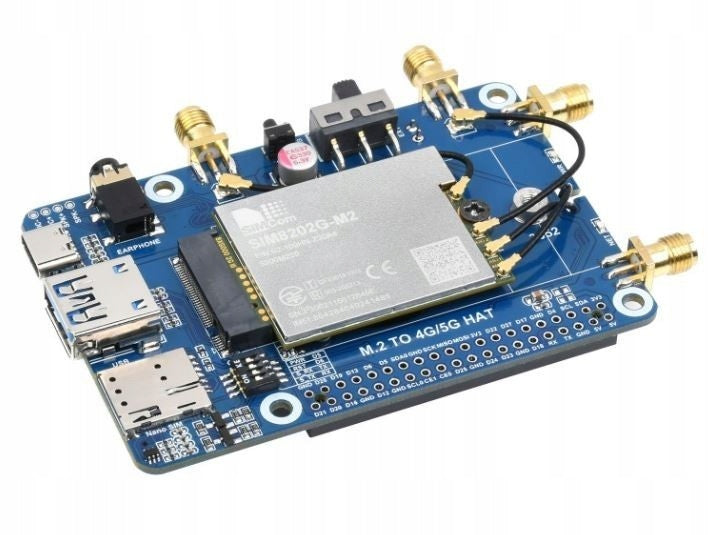

Set with SIMCom 5G SIM8202G-M2 module designed to work with the minicomputer Raspberry Pi. It is based on the Qualcomm Snapdragon X55 chip, which guarantees multi-band frequency support, thanks to which the device can be used in countries and regions such as China, Japan, South Korea, Europe or the Middle East. It supports 5G SA or NSA i networks and is backward compatible with 4G and 3G networks. SIM8202G-M2 supports positioning within GPS, GLONASS, Beidou, Galileo and QZSS systems, Dial-up function and communication with devices in the cloud. It is supported by AT commands.

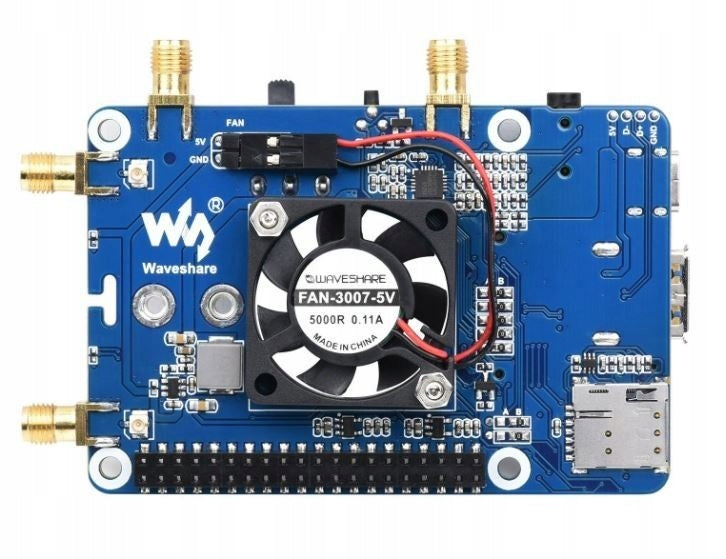

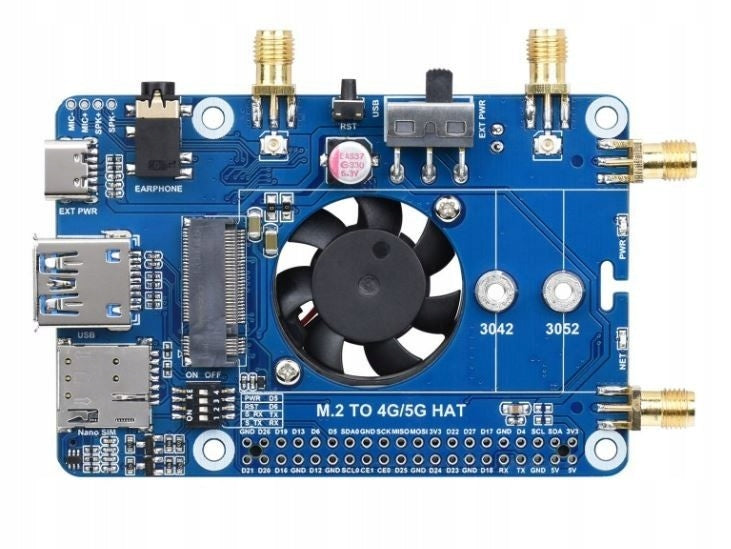

The base board is equipped with an M2 B Key connector, thanks to which it allows connection with various 4G or 5G communication modules with an M2 connector. The board also has a USB 3.1 port, audio jack, decoder and SIM card slot. The kit is connected to the Raspberry Pi using a standard 40-pin connector. The kit comes with a housing, antennas, and a cooling fan. Full documentation is available on the product wiki page.

Properties

• SIMCom 5G SIM8202G-M2 modem with Qualcomm SDX55 chip
• Frequency band:
• 5G SA Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
• 5G SA Sub-6G n41, n77, n78, n79
• LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
• LTE-TDD B34/B38/B39/B40/B41/B42/B48
• WCDMA B1/B3/B5/B8
• GNSS GPS, GLONASS, Beidou, Galileo and QZSS
• Data transfer rate:
• Sub-6G 4 Gb/s (download) and 500 Mb/s (upload)
• LTE 2 Gbps (download) and 200 Mbps (upload)
• HSPA 42 Mbps (download) and 5,76 Mbps (upload)
• Operating Systems Windows, Linux, Android
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 communication protocols
• SMS supports MT, MO, CB, Text, PDU
• Firmware Update Supports firmware update via USB port
• 2 x SIM socket 1,8 V/3,0 V
• 4 x SMA Antenna Connector
• On/off switch, LED indicator, reset
• Power supply 5 V, 3 A
• Module dimensions 85 x 56 mm

Comes with

• SIM8202G-M2
• M.2 TO 4G/5G HAT
• 4 x Outdoor Antenna
• 4 x IPEX Adapter
• USB cable
• USB3.0 adapter
• USB2.0 adapter
• GPS antenna
• Strip 2x20-pin
• Screw package
• SMA protective caps

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 21708
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5902186317383
