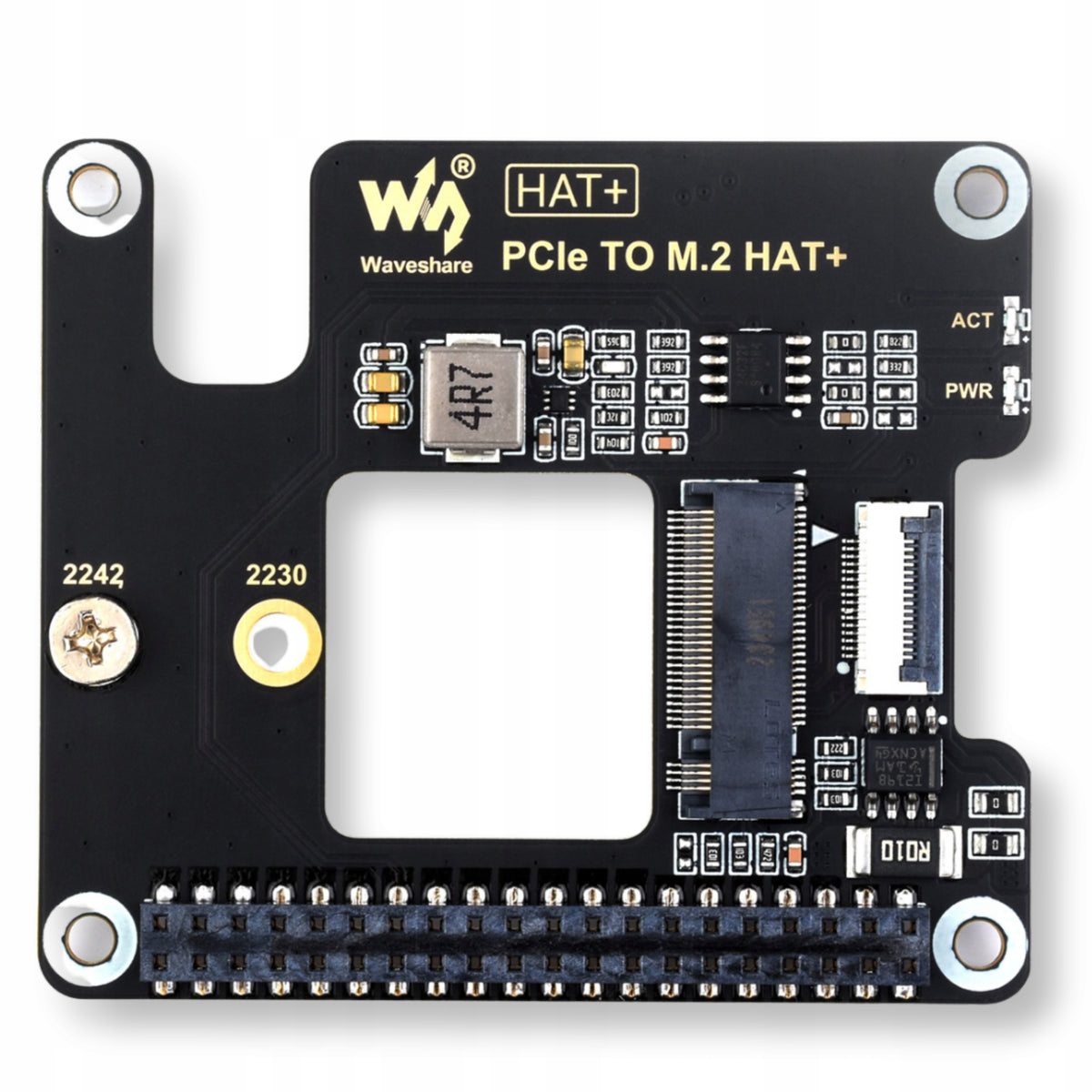

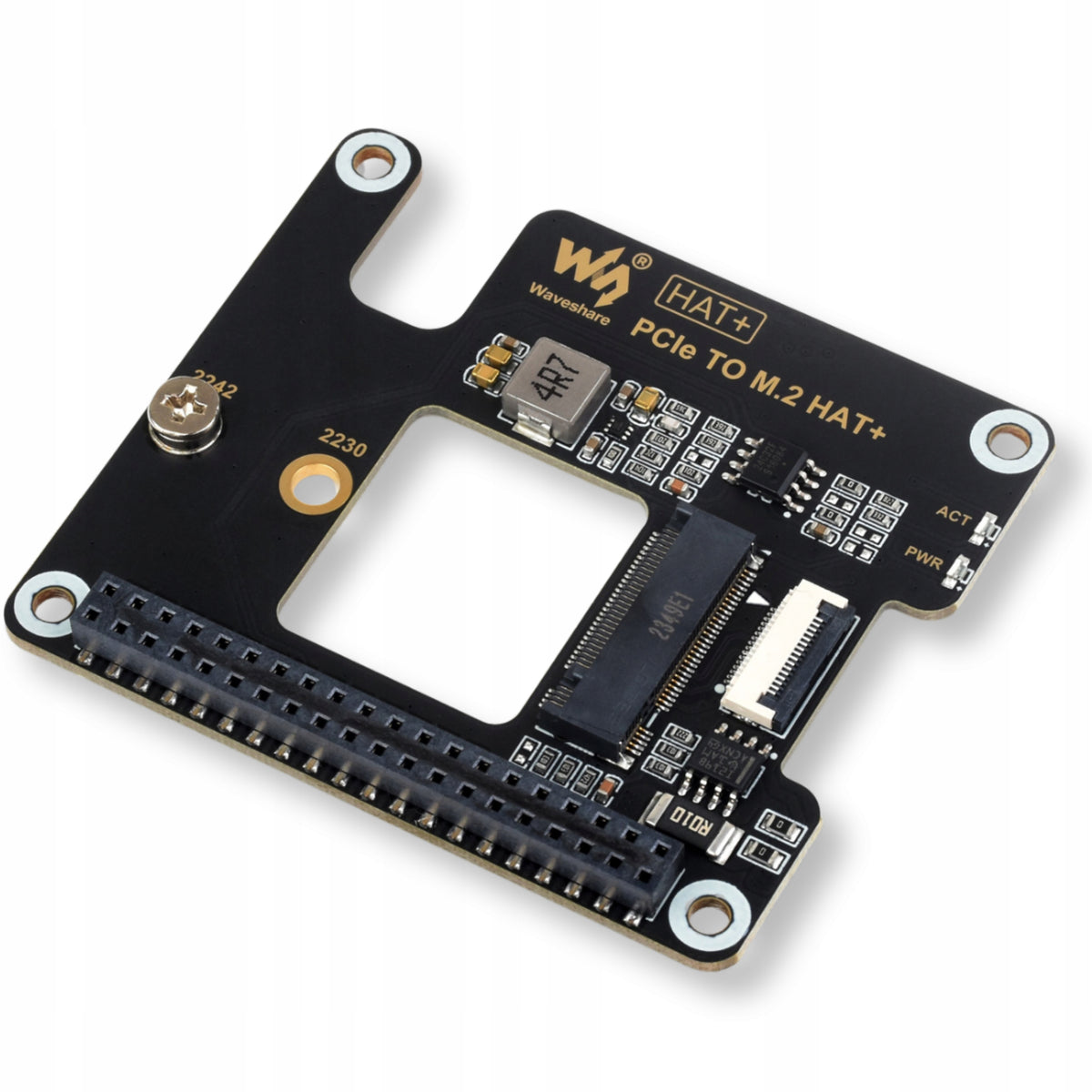

PCIe į M.2 adapteris, tinkantis Raspberry Pi 5, 2230/2242 diskams

Trumpai apie prekę

Prekė: PCIe į M.2 adapteris, tinkantis Raspberry Pi 5, 2230/2242 diskams. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Adapter PCIe na M.2 na dyski 2230/2242

It supports SSD M.2 drives with the NVMe protocol, offering high read/write speeds and work efficiency. Fits M.2 solid state disks with sizes 2230/2242.

Equipped with LED indicators informing about the operating status (continuous illumination of PWR when powered and blinking ACT during reading/writing), which allows you to easily assess the operating status. It has a HAT+ design with a built-in EEPROM chip and dedicated to PI5 fans, a ventilation hole that increases air flow and lowers the temperature of the SSD disk.

Manufacturer documentation: https://www. waveshare . com/wiki/PCIe_TO_M.2_HAT+

- Inner mesh panties

• NVMe protocol support for M.2 drives, fast read/write and high performance.
• Support for disks with M key.
• PCI-E×1 Gen2 or Gen3 mode.
• Compatible with Raspberry Pi 5 only
• Compatible with M.2 solid-state drives of sizes 2230/2242.
• Built-in operating controls, with PWR glowing continuous light during power supply and ACT flashing during reading/writing, so that the operating status is clear at a glance.
• HAT+ design with built-in EEPROM memory chip.
• Built-in power monitoring system to monitor the real-time operation status of the disk.
• Reserved vent for PI5 fans, increasing airflow and reducing the temperature of the solid-state drive.

Important: remember to correctly connect FPC to Raspberry and overlay. Reverse connection may result in damage to the overlay and minicomputer.

The cover is not compatible with the official case from Raspberry Pi.

Specifications
