Paviršinis lizdas 1x RJ45/8P8C UTP Cat.5E, LSA jungtys

Trumpai apie prekę

Prekė: Paviršinis lizdas 1x RJ45/8P8C UTP Cat.5E, LSA jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Stratos
• Modelis: 48880

Catalog No: 48880

The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48880.htm

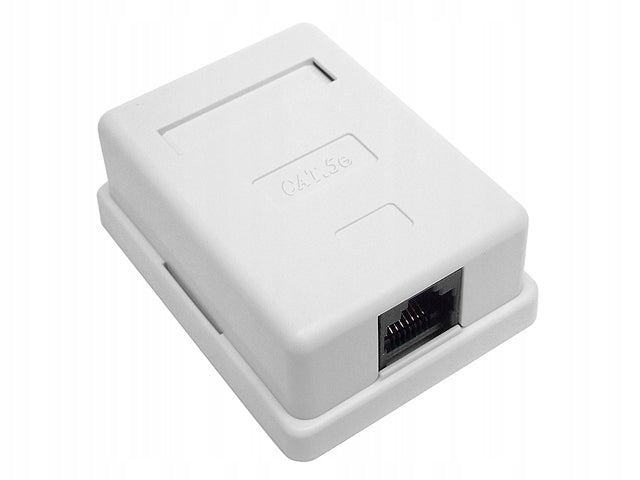

The offered item is an unshielded surface mounted wall socket with a single RJ45 cat.5e (class D) port used in computer Ethernet networks. The socket meets EIA/TIA 568 and ISO/IEC DIS 11801 standards and guarantees transmission frequency up to 100MHz. Color coding implemented according to the EIA/TIA 568A and 568B standards, i.e. the socket has the ability to connect twisted pair cables in both currently used standards.

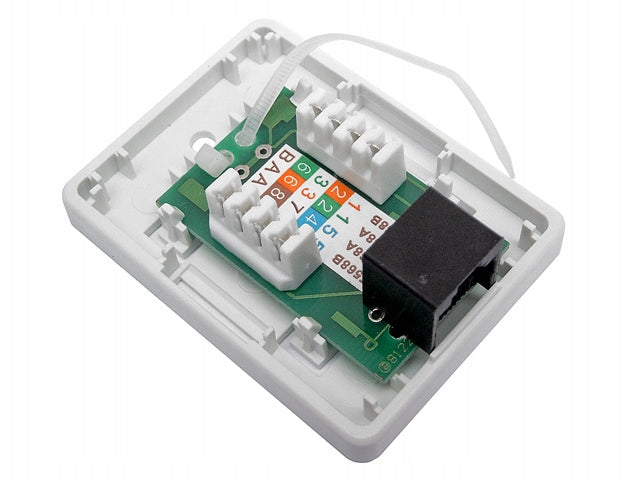

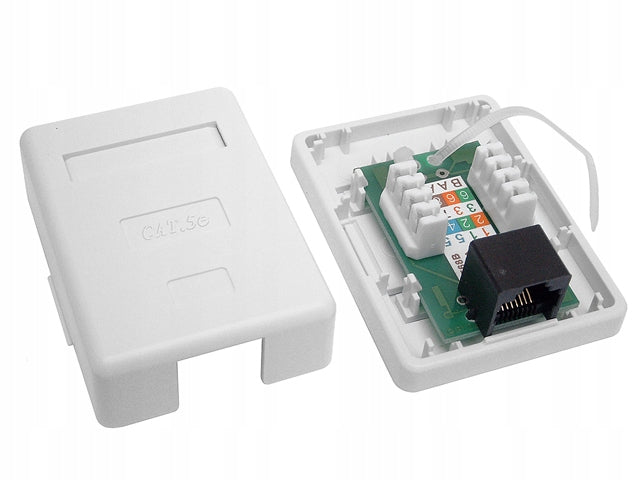

The RJ45 port is equipped with connection contacts made according to the LSA / KRONE standard, so pressers of this standard should be used for pressing. The socket has an embossing on the front to place a descriptive plate, the set includes two mounting screws and double-sided adhesive tape useful for fixing the socket.

Attention! We offer a large selection of LSA pressers necessary for the correct connection of twisted pair to the offered RJ45 sockets. You can find in our offer by typing 'LSA pusher' in the field 'search in user objects'.

• Connectors: 1xRJ45/8P8C female
• Color: White
• Category: 5e, Class D, EIA/TIA 568, ISO/IEC DIS 11801
• Bandwidth: 100MHz
• Contact Type: LSA/KRONE
• Colour coding of contacts: EIA/TIA 568A and 568B
• Socket dimensions (length/width/height): 66/50/25mm
• Mounting screw spacing: 25mm
• Weight: approx. 33g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
