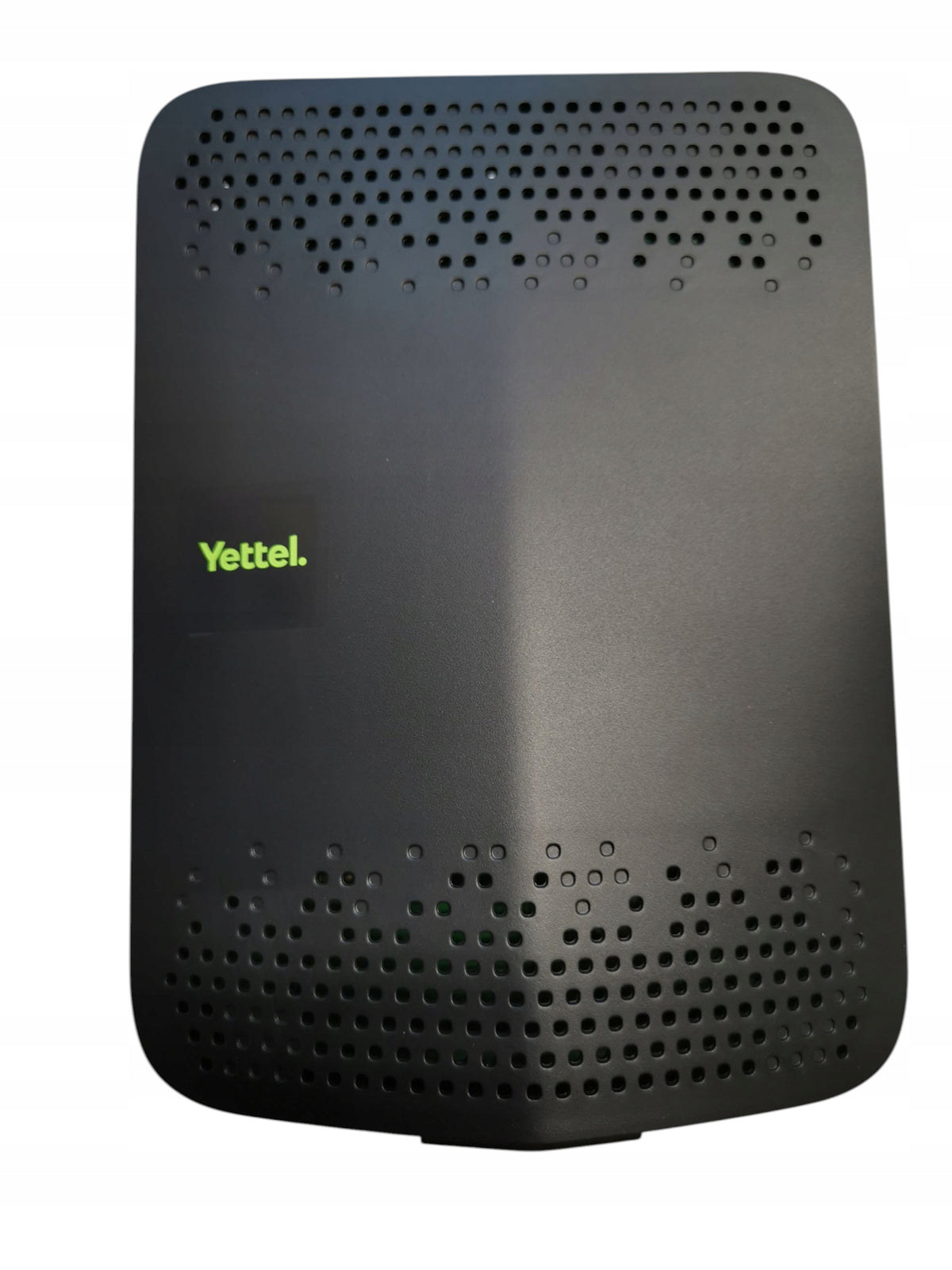

Optinis maršrutizatorius Kaon PG2141N

Trumpai apie prekę

Prekė: Optinis maršrutizatorius Kaon PG2141N. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Kaon
• Modelis: Kaon PG2141N

Kaon PG2141N – Router / ONT Wi‑Fi 5 with 4 × Gigabit LAN

Category: Desktop / ONT / Home Network Gateways

Kaon PG2141N is an advanced desktop router with ONT (Optical Network Terminal) function prepared for home installations or operator‑fiber optic. Equipped with powerful Wi‑Fi 5, four Gigabit LAN ports, WAN/fiber port and VoIP telephony capability. Ideal for demanding users who want high speeds and a stable connection.

Kaon PG2141N is a premium Korean router, great and budgetary, for advanced users with very good parameters compared to competing devices, giving up to ~1,7 Gbps in the 5 GHz band (mode 4×4).

Technical specification

Wireless network (Wi‑Fi):

• Standard: IEEE 802.11 a/b/g/n/ac (Wi‑Fi 5)
• 2,4 GHz band: 3×3 MIMO mode
• 5 GHz band: 4×4 MIMO mode
• Estimated speeds: up to ~1,7 Gbps in the 5 GHz band (4×4)
• Dual‑band simultaneous: 2,4 GHz + 5 GHz

Wired ports and interfaces:

• 4 × LAN 10/100/1000 Mbps (Gigabit Ethernet) ports
• 1 × WAN port: can be fiber optic/OLT (depending on ONT version)
• Antenna Connectors: Built-in
• Power Supply: 12V DC/2A (Typical)
• Power consumption: average about 17,6 W; maximum about 21,3 W

Network management and functions:

• Operating Modes: Router or ONT/Routing Bridge
• Security support: firewall, NAT, VLAN, IPv4/IPv6 Dual Stack
• Remote management: TR‑069 / TR‑181 (in operator installations)
• LED indicators: Power, PON/LOS (if GPON), LAN1‑4, WiFi 2,4G, WiFi 5G
• Buttons: WPS / WiFi ON‑OFF, Reset / Factory Default

Dimensions and construction:

• Dimensions: approximately 210 mm × 78 mm × 155 mm
• Weight: about 460 g
• Color: Black
• Design: Table device
• Wired interfaces located at the back

Key Features

• High performance Wi‑Fi 5 in the 5 GHz band thanks to 4×4 MIMO – great bandwidth and support for multiple devices
• Four Gigabit LAN ports – the convenience of connecting computers, consoles, TVs and other wired devices
• ONT function / fiber optic router – allows direct installation in the FTTH network as an end device
• Extensive network functions – also ready for semi‑professional environments
• Energy-efficient design – despite high functionality, the device operates within a reasonable power range

Content of the set

• Kaon PG2141N – router / ONT
• 12V DC/2A Power Supply
• Ethernet cable (CAT5e or higher)
• Quick start instructions

Kaon PG2141N is a premium device for demanding users and fiber optic installations that combines high-performance Wi‑Fi 5 and powerful wired connections.
