Trumpai apie prekę
Prekė: OLED ekranas Pico-OLED-2.23, 2,23" modulis. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 19750

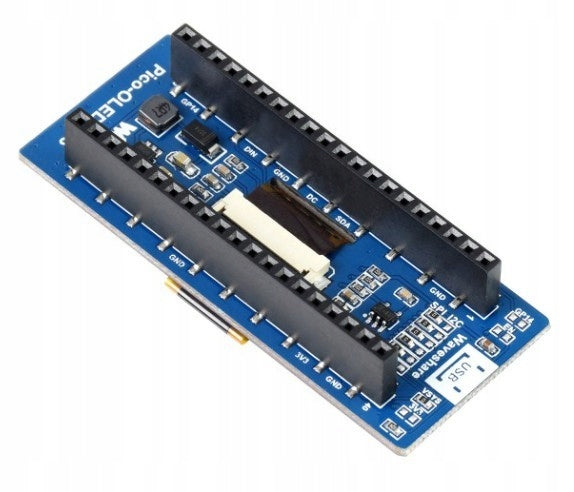

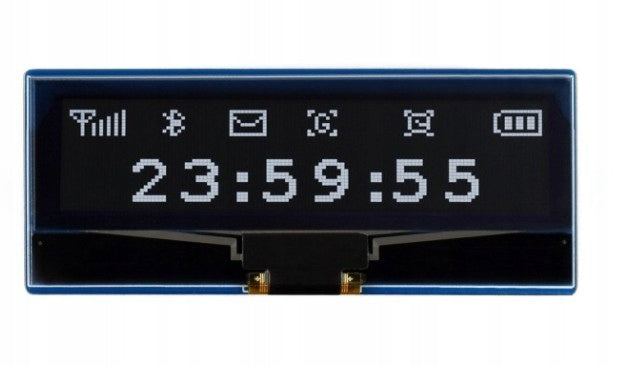

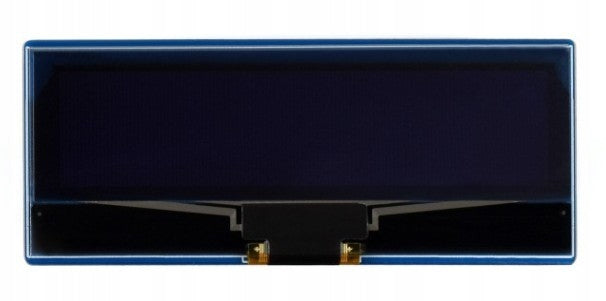

Pico-OLED-2.23 - module with OLED display 2,23" 128x32 for Raspberry Pi Pico
Description
Module with black and white OLED display with a diagonal of 2,23" and a resolution of 128x32 px designed to work with Raspberry Pi Pico. It has a built-in SSD1305 controller that realizes communication via SPI or I2C interface. The module is compatible with 3,3 V systems. Full documentation with examples is available on the product wiki page.
Attention!
The kit does not include Raspberry Pi Pico. They must be purchased separately.
Properties
- Display Type: OLED
- Diagonal 2,23"
- Resolution: 128x32 px
- Interface: SPI, I2C
- Spot size: 0,41 × 0,39 mm
- Display Color: Black, White
- SSD1305 controller
- Voltage: 3,3 V
- PCB Dimensions: 63 x 26 mm
- Display dimensions: 55,02 x 13,1 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 19750 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906623425587 |
| Parametry | Batteries included | no |
