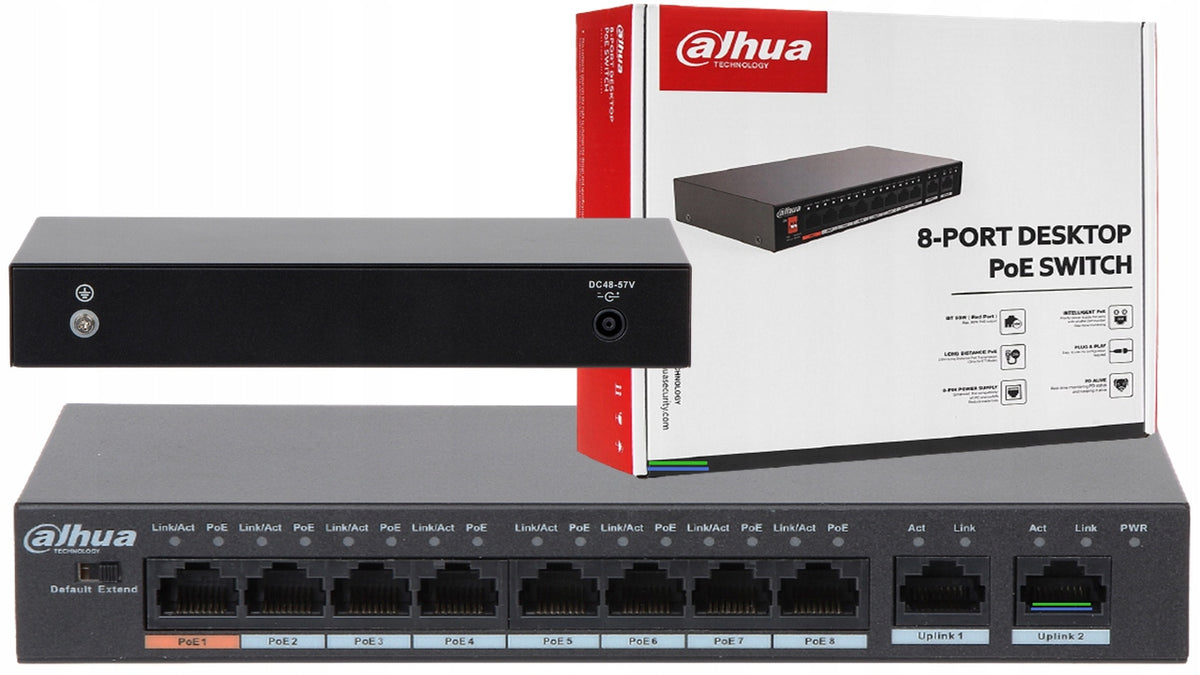

Nekeliamasis komutatorius Dahua DH-PFS3010-8ET-96

Trumpai apie prekę

Prekė: Nekeliamasis komutatorius Dahua DH-PFS3010-8ET-96. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: PFS3010-8ET-96

8xPoE PoE Switch, 2xUpLink, 1xHiPoE

This is version 1 of this switch, we have version 2 on another listing.

The PFS3010-8ET-96 PoE Switch is an industrial-grade device that provides smooth network transmission at 10 / 100 / 1000 Mbps. The device is ideal for building a network of IP cameras with power supply in the PoE 802.3af / 802.3at standard.

• Number of ports 10 (8 PoE ports + 2 Uplink ports)
• Support MDI/MDIX self-adaptation
• RJ45 port supports 10/100/1000 Mbps self-adaptation
• Supports IEEE802.3af and IEEE803.3at power standards
• Metal housing
• Supports 60W Hi-PoE
• DC 48-57V power supply

Model PFS3010-8ET-96

Ethernet ports 8*10/100Mbps PoE ports 2*10/100/1000Mbps ports

PoE budget Port1≤60W, Port2-8≤30W, Total≤96W

PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Capacity 5.6Gbps

Switching packages 4.17Mpps

Package buffer 4Mb

MatC 16K array size

Flow Control Enable by default

Working in an environment with humidity 10%~90%

Power supply DC48~57V (power supply included)

Overvoltage protection Common Mode 2KV

Differential Mode 0.5KV

Working temperature -10°C~+55°C

Weight 0.49kg

Dimensions 190mm×100mm×30mm

• original product of the brand Dahua
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have doubts, we will be happy to advise and help

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Dahua
Parametry	Number of ports	10
Parametry	EAN (GTIN)	6939554904707
Parametry	Manufacturer code	PFS3010-8ET-96
