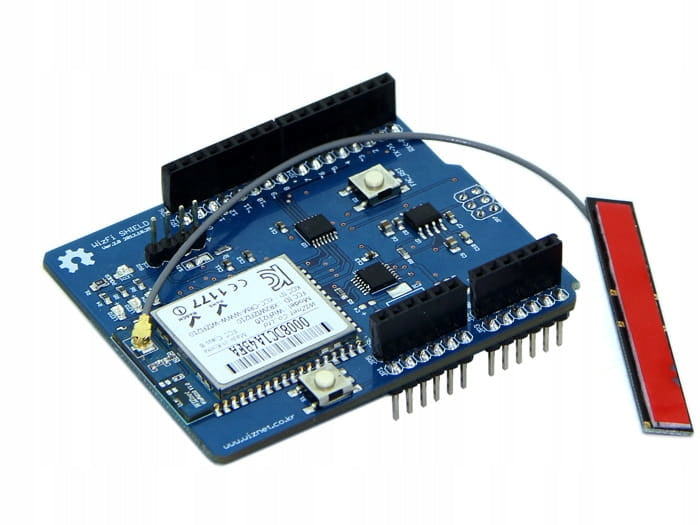

Modulis WizFi Shield WizFi210

Trumpai apie prekę

Prekė: Modulis WizFi Shield WizFi210. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: 113990002

WizFi shield original from WIZnet.

⭐ WizFi Shield uses the fully certified Wi-Fi WizFi210 module to provide Arduino with wireless capabilities. SPI interface is used to enable faster transmission and release Arduino UART. All software and hardware materials are freely available and open source.

Features:

✅ Very low power consumption (34μA in standby mode)

✅ Works with standard 802.11b/g/n access point at speeds up to 11Mbps (802.11b)

✅ Security protocol: WEP, WPA/WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP

▶ Specification

• Radio protocol: IEEE 802.11b/g/n compliant
• Supported data rates: 11, 5.5, 2, 1 Mbps (IEEE 802.11b)
• Modulation: DSSS and CCK
• RF operating frequency: 2,4 - 2,497 GHz
• Antenna options: Chip antenna and U.FL connector for outdoor antenna
• Network protocols: UDP, TCP/IP (IPv4), DHCP, ARP, DNS, client and HTTP/HTTPS(**)
• Power consumption (typical): Standby = 34,0 μA, Reception = 125,0 mA, Transmission = 135,0 mA
• RF output power (typical): 8dBm ± 1dBm
• I/O interface: UART, SPI, I2C WAKE, ALARM, GPIO
• Power source: 5V
• Dimensions: 68 x 66 x 19 mm
