Trumpai apie prekę
Prekė: Maršrutizatorius Planet ICG-2510W-LTE-EU, pagal užsakymą. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: Planet
- Modelis: ICG-2510W-LTE-EU
- Plotis: 56 mm
- Aukštis: 4 mm

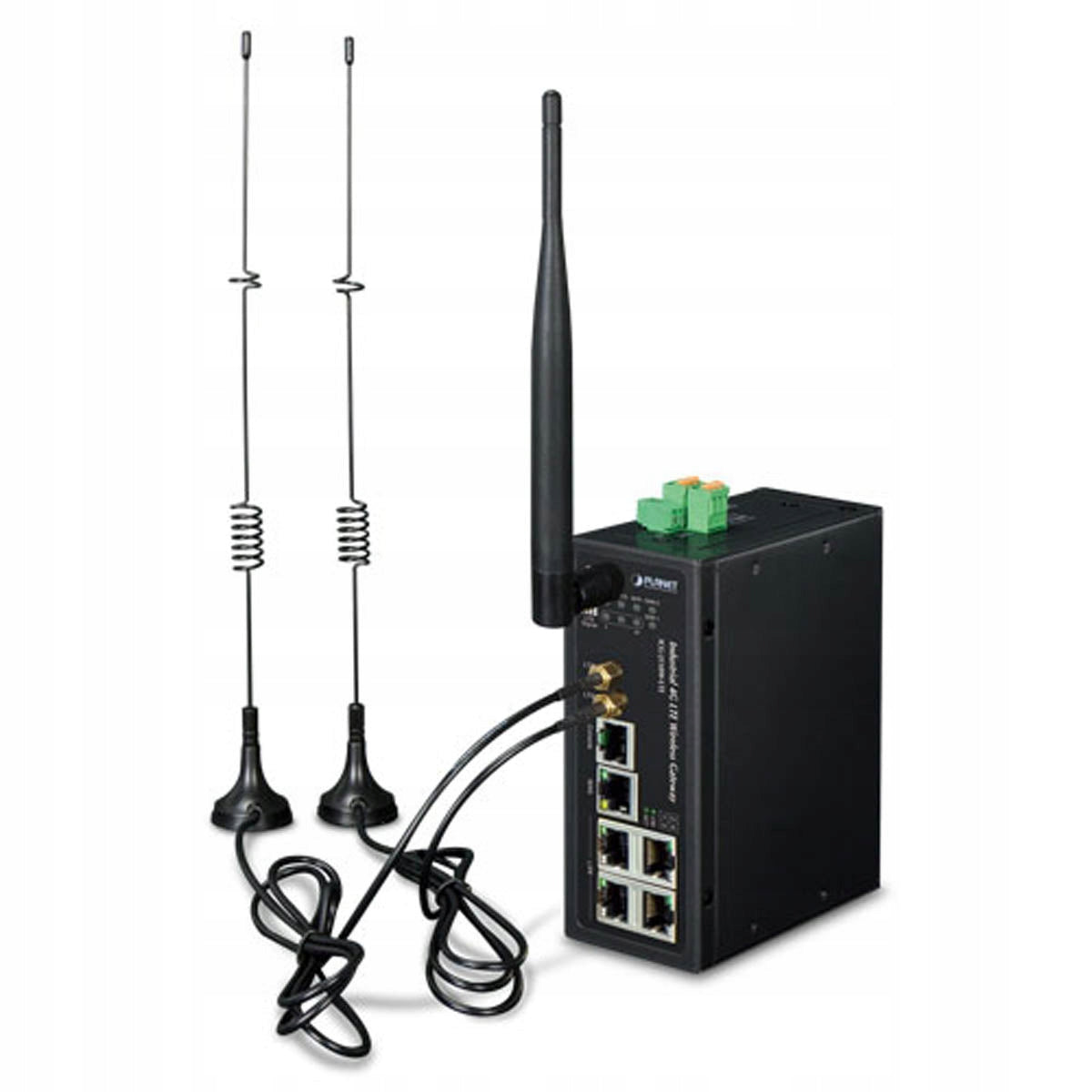

Planet ICG-2510W-LTE-EU on request
Planet
PLANET ICG-2510W-LTE – industrial LTE router with 5-port Gigabit switch, 802.11ac Wi-Fi and Modbus support
PLANET ICG-2510W-LTE is an industrial LTE gateway that combines the functions of an advanced router, gigabit switch and Wi-Fi access point in one device. Optimized to work in harsh environments, it supports remote IoT, M2M and industrial applications requiring high reliability and flexible connectivity.
Why choose a router from Planet?
- Dual SIM LTE
Automatic switching between operators ensures uninterrupted connectivity.
Built-in Wi-Fi 802.11ac (2,4/5 GHz)
enables simultaneous operation in AP, Client or Repeater mode.
5 Gigabit Ethernet ports (4 LAN + 1 WAN)
fast, reliable wired communication in industrial networks.
Support Modbus, VPN and DDNS
integration with automation systems, remote management and secure communication.
DI/DO and RS232/RS485 connectors
easy connection of sensors and control devices.
Solid IP30 design, wide temperature range (-40°C to +75°C)
guarantee of work in difficult conditions.
Management via HTTP/HTTPS, SNMP, SSH, Telnet
flexible administration from local or remote level
Power supply 9 to 36V DC
compliant with industry standards, ideal for use in vehicles and machinery
Flexible LTE and Wi-Fi connectivity for industrial IoT systems
PLANET ICG-2510W-LTE supports LTE connectivity with two SIM slots, which ensures continuity of connection even in the event of a failure of the main operator. In addition, the device supports Wi-Fi 802.11ac in 2.4GHz and 5GHz mode, which enables integration with wireless networks in industrial applications, automation and monitoring.
Gigabit 5-port switch with PoE support
The device is equipped with a 5-port Gigabit switch (4x LAN, 1x WAN), which allows for easy integration with existing wired systems. With support for auto-MDI/MDI-X and Store-and-Forward technology, data transmission is reliable and efficient.
Advanced industrial functions: DI/DO, RS232/RS485, Modbus
The ICG-2510W-LTE is designed with automation in mind – offers RS232/RS485 serial port, 2 digital inputs (DI), 1 digital output (DO) and relay. With support for Modbus TCP, the device can be integrated into industrial systems requiring remote control and monitoring.
Secure and remote management
With support for VPN (PPTP, L2TP, OpenVPN, IPSec, GRE) and advanced filtering options (URL, packets, MAC), the device provides secure connections to the network. Remote management is possible via HTTPS, SSH, SNMP, Telnet and PLANET Smart Discovery, which facilitates configuration and diagnostics.
Resistance to industrial conditions
IP30 housing, metal construction and operating temperature range from -40 to 75°C guarantee reliability in harsh environments. Additional protections such as ESD (15kV DC) and surge protection (1.5kV DC) protect your device from damage in demanding applications.
Technical data:
- Ethernet ports: 4x LAN 10/100/1000BASE-T RJ45, 1x WAN 10/100/1000BASE-T RJ45
- SIM slots: 2 mini-SIM slots
- Serial interface: 1x RS232/RS485 (DB9 to RJ45)
- Antennas: 2 LTE 5dBi antennas, 1 Wi-Fi 2.4/5GHz antenna
- DI/DO/Relay: 2x DI, 1x DO, 1x relay
- Power Supply: 9 – 36V DC, 1.5A
- Power consumption: 8.4W
- LTE standards: EU Model: B1/B3/B5/B7/B8/B20, B38/B40/B41; US Model: B2/B4/B12
- Wi-Fi: IEEE 802.11 b/g/n/ac, up to 300Mbps
- VPN: PPTP, L2TP, OpenVPN, IPSec, GRE
- Management: HTTPS, SSH, SNMP, Telnet, PLANET NMS
- Housing: IP30, DIN rail mounting
- Dimensions: 45 x 107.6 x 132.84 mm
- Working temperature: -40 ~ 75°C
- Quantity per package: 10 pcs
- Height: 13.28 cm
- Width: 4.5 cm
- Depth: 10.76 cm
- Weight: 0.564 kg
- Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
- EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Planet |
| Parametry | Mode of operation | Router |
| Parametry | Wireless operation standard | 802.11ac (Wi-Fi 5) |
| Parametry | Internal modem | 4G LTE |
| Parametry | Number of LAN (RJ-45) ports | 4 |
| Parametry | LAN port operating standard | 10/100/1000 Mbps |
| Parametry | Width | 56 mm |
| Parametry | Height | 4 mm |
| Parametry | Depth | 116 mm |
| Parametry | EAN (GTIN) | 4711605284684 |
| Parametry | Manufacturer code | ICG-2510W-LTE-EU |
| Parametry | Model | ICG-2510W-LTE-EU |
| Parametry | The highest standard supported | 802.11ac (Wi-Fi 5) |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
