Maršrutizatorius MikroTik SXTsq Lite2 RBSXTsq2nD, 2 vnt.

Trumpai apie prekę

Prekė: Maršrutizatorius MikroTik SXTsq Lite2 RBSXTsq2nD, 2 vnt.. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: SXTsq Lite2
• Plotis: 129 mm
• Aukštis: 129 mm

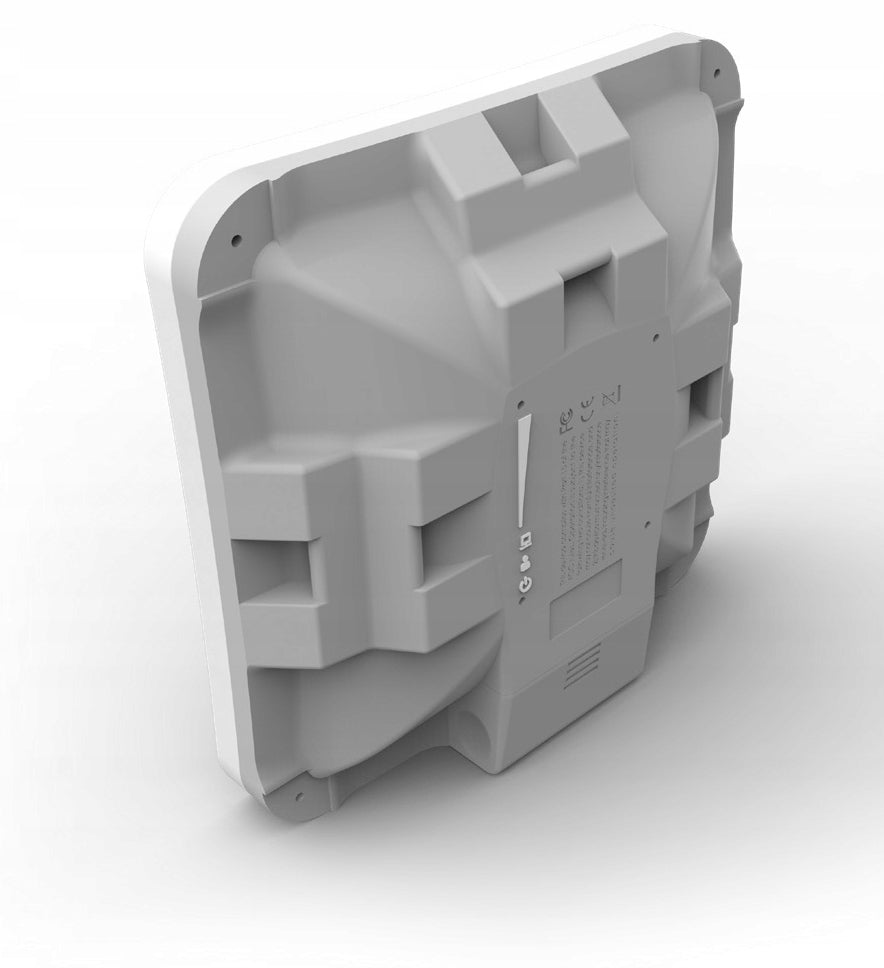

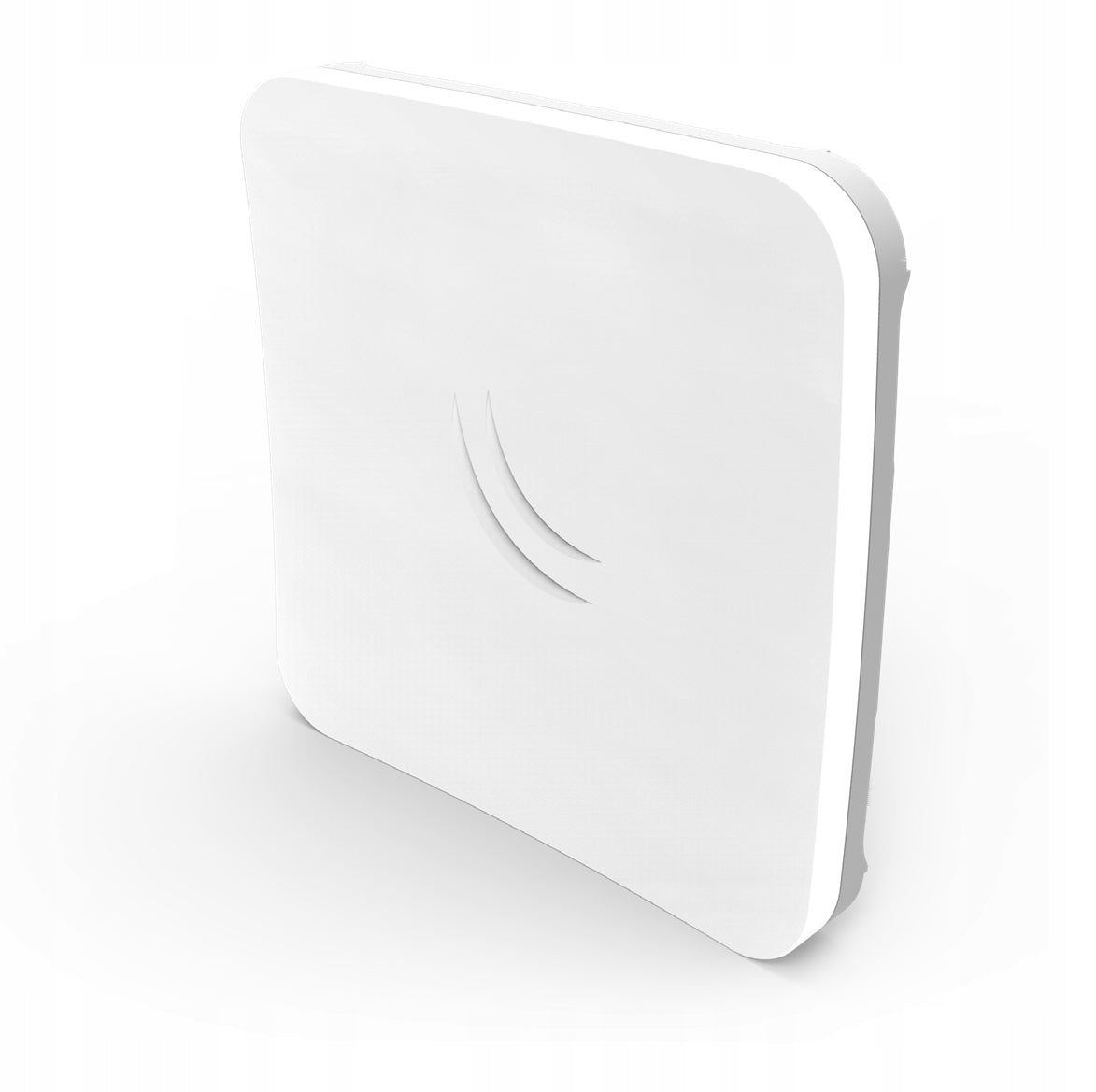

MikroTik SXTsq Lite2 client device

SXTsq Lite2 is a compact, lightweight, wireless outdoor device with a built-in antenna,

which is ideal for point-to-point connections or for use as a CPE unit. It is equipped

in one 10/100 Mbit Ethernet port. The device operates in the 2,4 GHz band, supports IEEE 802.11b/g/n standard

and uses 2x2 MIMO (dual-chain) technology. The maximum theoretical bandwidth is 300 Mbps.

SXTsq stands out for its weather resistance and ease of installation.

SXTsq Lite2 - twice as thin antenna

SXTsq Lite2 antenna is modeled on the previous model - SXT Lite2. The new antenna, like its predecessor, has a 60° wide beam, but its design has been improved and the size has been drastically reduced - the SXTsq is twice as thin.

Easy installation and configuration

In the housing there are holes for direct attachment of the clamp band, which allow you to mount the device in three different places, also on horizontal handrails.

The grounding protects the SXTsq Lite2 from atmospheric discharges.

MikroTik SXTsq Lite2

• One 10/100 Mbit Ethernet port
• Powered by passive PoE
• Input voltage range of 10-30 V DC
• 24 V, 0.38 A power supply and PoE injector

The most important features

• Maximum transmitting power of 30 dBm
• Integrated antenna with a gain of 10 dBi
• Operation in the 2.4 GHz band
• Dual polarity (dual-chain/2x2 MIMO)
• Passive power supply via PoE
• Easy installation with All-in-One housing
• LEDs indicating signal strength
• ESD protection - up to 10 kV ESD on the radio

SPECIFICATION

Features / filters

• Working frequency: 2.4 GHz
• Number of LAN ports: 1x [10/100M (RJ45)]
• Maximum wireless transmission speed: 300 Mbps
• LAN standard: Fast Ethernet 10/100Mbps
• Wireless network standards: IEEE 802.11a, IEEE 802.11n,
• CPU frequency: 650 MHz
• RAM: 64MB
• Type of power supply: Passive PoE
• Device type: Client device
• Antenna Gain: Below 10dBi

Basic technical parameters

• Product code: RBSXTsq2nD
• Architecture: MIPSBE
• CPU: QCA9533
• Number of processor cores: 1
• CPU frequency: 650 MHz
• Dimensions: 129 mm x 129 mm x 34 mm
• RAM: 64 MB
• User memory: 16 MB Flash
• Network interface: 1 x RJ-45 10/100 Mbps Fast Ethernet
• Operating frequency range: 2412-2484 MHz
• IEEE protocols: IEEE 802.11b/g/n
• Polarization: Double (2x2 MIMO/dual-chain)
• Antenna gain: 10 dBi
• Main beam width: 60°
• PoE power supply: Passive PoE
• PoE supply voltage range: From 10 to 30 V DC
• Maximum power consumption: 5 W
• Weight: 295 g
• Operating system: RouterOS
• Admissible operating temperature range (tested): -40°C to 70°C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	MikroTik
Parametry	Mode of operation	Router
Parametry	Band	2,4 GHz
Parametry	Internal modem	no modem
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100 Mbps
Parametry	Antenna	built-in
Parametry	Additional features	MAC cloning
Parametry	Width	129 mm
Parametry	Height	129 mm
Parametry	Depth	34 mm
Parametry	Product weight with unit packaging	0.492 kg
Parametry	EAN (GTIN)	4752224004581
Parametry	Manufacturer code	RBSXTsq2nD
Parametry	Model	SXTsq Lite2
Parametry	The highest standard supported	802.11n (Wi-Fi 4)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11n (Wi-Fi 4),802.11g,802.11b
