Maršrutizatorius MikroTik RouterBOARD RBcAP2nD, 2 vnt.

Trumpai apie prekę

Prekė: Maršrutizatorius MikroTik RouterBOARD RBcAP2nD, 2 vnt.. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: cAP
• Plotis: 240 mm
• Aukštis: 180 mm

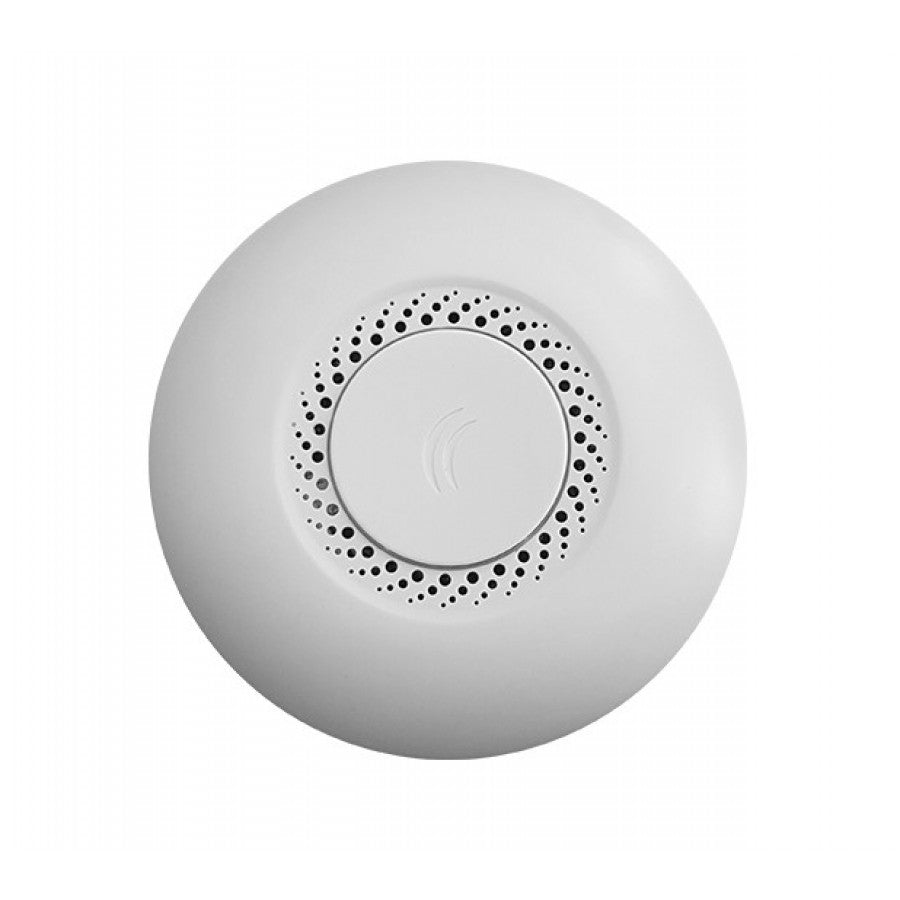

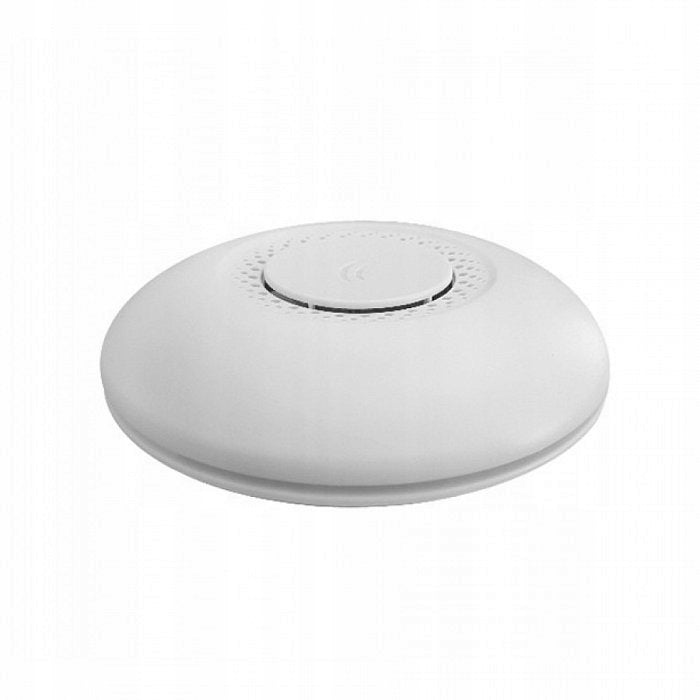

The cAP-2nD platform is the first “ceiling” Access Point MIMO 2x2 from MikroTik.

Discreet appearance makes this device applicable in public places – hospitals, hotels, airports, shops, etc.

cAP 2nD operates in 802.11b/g/n standards and is powered by passive or active (802.3af/at) PoE.

It is an ideal application for the CAPsMAN controller, which allows you to centrally manage all access points from one place.

Unlike traditional software controllers, which require a separate PC/MAC to work, CAPsMAN works on any RouterBOARD device, so no separate machine with a controller is required.

Everything you need for assembly is included with the unit – ceiling/wall mount, PoE adapter, power supply, and even screws and mounting pins.

Main features of the device:

• Wall or ceiling mounting
• Simple, unobtrusive appearance (smoke detector appearance)
• Operation on 2,4GHz frequency
• PoE – 11-57V – passive or 802.3af/at
• CAPsMAN controller working on any RouterBOARD device
• RouterOS software with level 4 license

Technical data:

• Processor – QCA9533 650 MHz
• RAM - 64MB RAM
• Drive - NAND memory for the operating system (permanently built into the board)
• LAN port – 1 x 10/100Mbit/s Fast Ethernet port with Auto-MDI/X support
• MiniPCI Slots - None
• Radio module – one, built-in – IEEE 802.11b/g/n up to 300Mbit/s (2x2)
• Radio module sensitivity: 802.11g: -96dBm @ 1Mbit/s to -74dBm @ 54Mbit/s; 802.11n: -93Bm @ MCS0 to -70dBm @ MCS7
• Radio module power: 802.11g: 22dBm @ 1Mbps to 18dBm @ 54Mbps; 802.11n: 20dBm @ MCS0 to 16dBm @ MCS7
• Built-in antennas: yes, 2dBi gain
• USB port – none
• Additional functionalities - reset button
• Power supply – PoE 11-57V DC (24V DC 0.38A power supply included), 802.3af/at or passive PoE
• Power consumption – 4W (max.)
• Dimensions - width 185mm, height 31mm
• Operating temperature – from -40oC to +70oC

The device comes with a 24V DC 0.38A power supply, PoE adapter, wall/ceiling mounting bracket, screws and mounting pins.
