LTE Cat-1/3G/2G modulis su GNSS SIM7600E, skirtas Raspberry Pi, Waveshare 17954

Trumpai apie prekę

Prekė: LTE Cat-1/3G/2G modulis su GNSS SIM7600E, skirtas Raspberry Pi, Waveshare 17954. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 17954

HAT LTE Cat-1/3G/2G module with GNSS SIM7600E for Raspberry Pi - Waveshare 17954

Description

SIM7600E LTE Cat-1 HAT is a module extending the capabilities of Raspberry Pi with communication via GSM/GPRS mobile networks. It uses Simcom's SIM7600E chip, thanks to which it is possible to make and receive calls (it is possible to attach a microphone and headphones via the jack), send and receive SMS messages, use wireless Internet. It also has built-in positioning support within GPS navigation systems, BeiDou, Glonass, GALILEO, QZSS. The module is controlled by AT commands via the UART of the Raspberry Pi computer. It has rich support in the form of libraries for Raspberry Pi, Arduino, STM32. Full documentation and configuration examples are available on the product page.

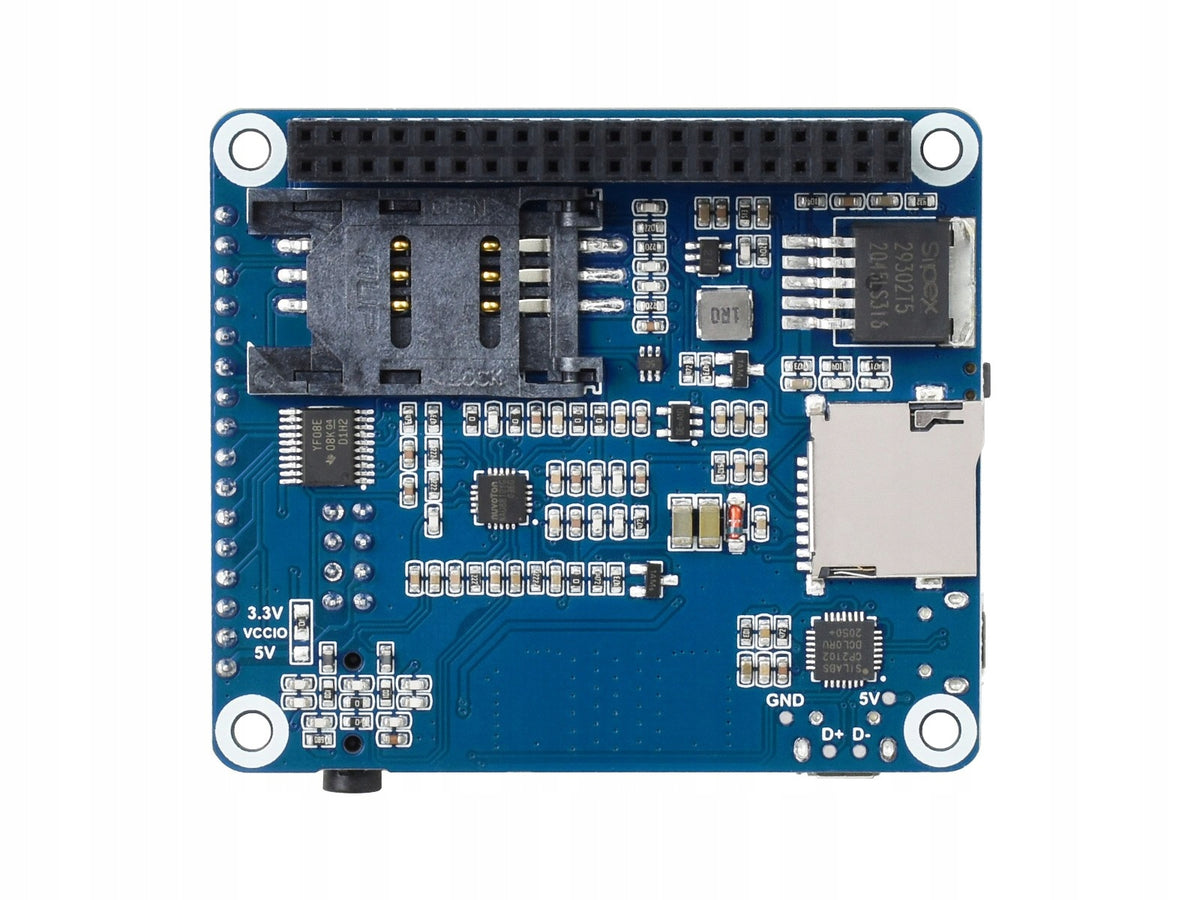

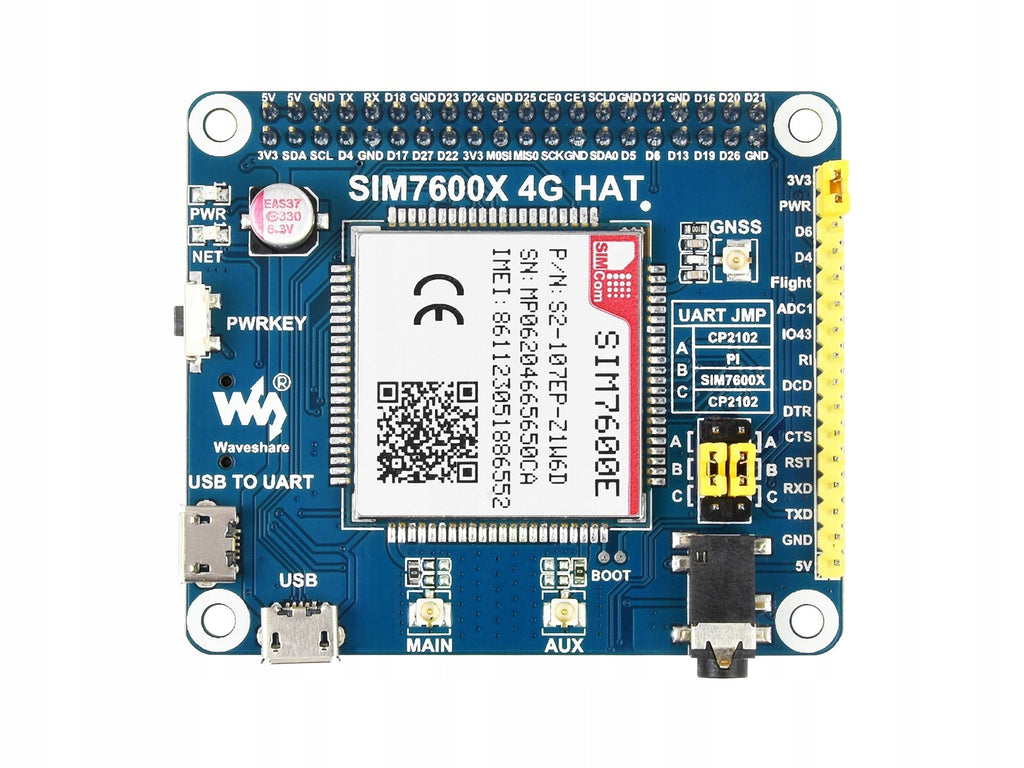

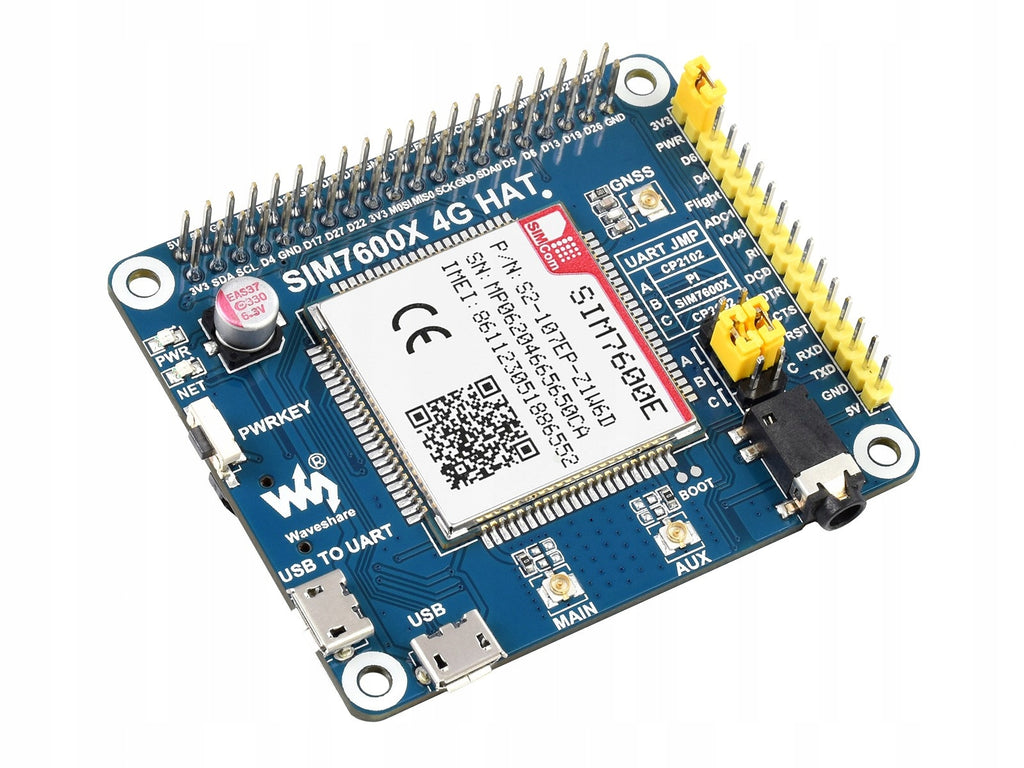

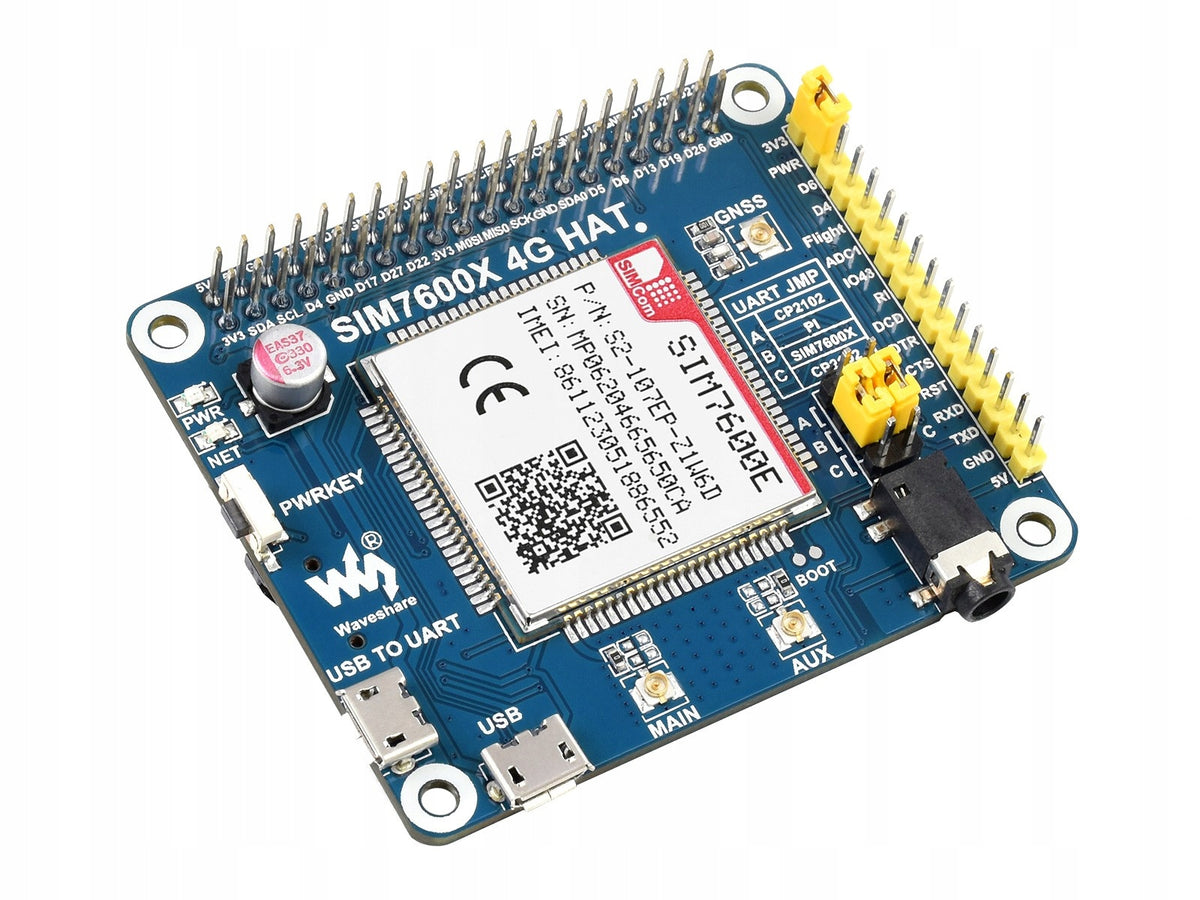

1. SIM7600E 13.USB-UART

2. CP2102 14. MAIN Antenna Connector

3. Audio decoder NAU8810 15. AUX Antenna Connector

4. Voltage level converter 3,3V/5V 16. GNSS Antenna Connector

5. MP2128DT 17. Power Switch

6. SPX29302 18. GSM Connection Indicator

7. GPIO 19 connector. Power Indicator

8. Control connector 20. Voltage Selection Jumper

9. SIM socket 21. Jumper UART

10. MicroSD 22 socket. Power jumper

11. Connector Jack 3,5mm 23. USB pads

12. USB 24. BOOT

Properties

• Based on chip: SIM7600E
• Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
• Supports GNSS positioning (GPS, GLONASS, BeiDou, QZSS)
• Built-in USB interface for AT command testing, GPS positioning data
• Connector with output UART interface to connect to hosts such as Arduino/STM32
• Internal voltage translator, 3,3 V by default, allows switching to 5V using 0Ω resistor
• SIM card slot
• 2x LED indicators
• Transmission Rate: 300bps ~ 4Mbps
• Control via AT commands (Extended AT commands 3GPP TS 27.007, 27.005 and SIMCOM)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• 3,5 mm Jack connector for connecting a headset
• Frequency band:
• LTE Cat-1: LTE-TDD: B38 / B40 / B41, LTE-FDD: B1/B3/B5 / B7 / B8 / B20
• 3G: UMTS/HSPA+: B1/B5/B8
• 2G: GSM/GPRS/EDGE: 900/1800MHz
• 16-channels
• Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou)
• Cold start: 35 s
• Hot start: 1 s
• SMS: MT, MO, CB, Text, PDU
• Power Supply: 5V
• Operating voltage: 5 V/3,3 V (3,3 V by default)
• Operating temperature: -30~80°C
• Dimensions: 56,21 x 65,15 mm

Comes with

• SIM7600E LTE Cat-1 HAT
• LTE antenna
• External GPS Antenna (B)
• 2 x MicroUSB cable - USB
• Mounting Distance Set (2-Pack)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 17954
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5902186329591
