LTE antena MikroTik SXT LTE7 SXTR&R11e-LTE7, CPE, PoE

Trumpai apie prekę

Prekė: LTE antena MikroTik SXT LTE7 SXTR&R11e-LTE7, CPE, PoE. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: SXT LTE7
• Plotis: 140 mm
• Aukštis: 140 mm

SXT client device with LTE cat.7, 3G/4G/LTE CPE, 9dBi gain antenna, 2x Fast Ethernet ports, 2x microSIM slots, 650MHz processor, 64MB RAM, PoE, PSU, RouterOS L3, band aggregation

• work in 3G/4G/LTE bands
• bandwidth up to 300 Mbps when downloading data and 100 Mbps when sending
• 2x microSIM card slots
• 1x miniPCI-e slot
• band aggregation
• LEDs indicating range
• 2x Fast Ethernet ports 10/100 Mbps
• PoE function (PoE-in on Ether1, PoE-out on Ether2)
• 9 dBi gain antenna
• PoE power

MikroTik SXT LTE7 kit (SXTR&R11e-LTE7)

MikroTik SXT LTE7 kit (SXTR&R11e-LTE7) is the successor to the SXT LTE6 kit (SXTR&FG621-EA) equipped with the module R11e-LTE7, the same modern Category 7 LTE chip that can be seen in the MikroTik Chateau LTE7 (D53G-5HacD2HnD-TC&R11e.

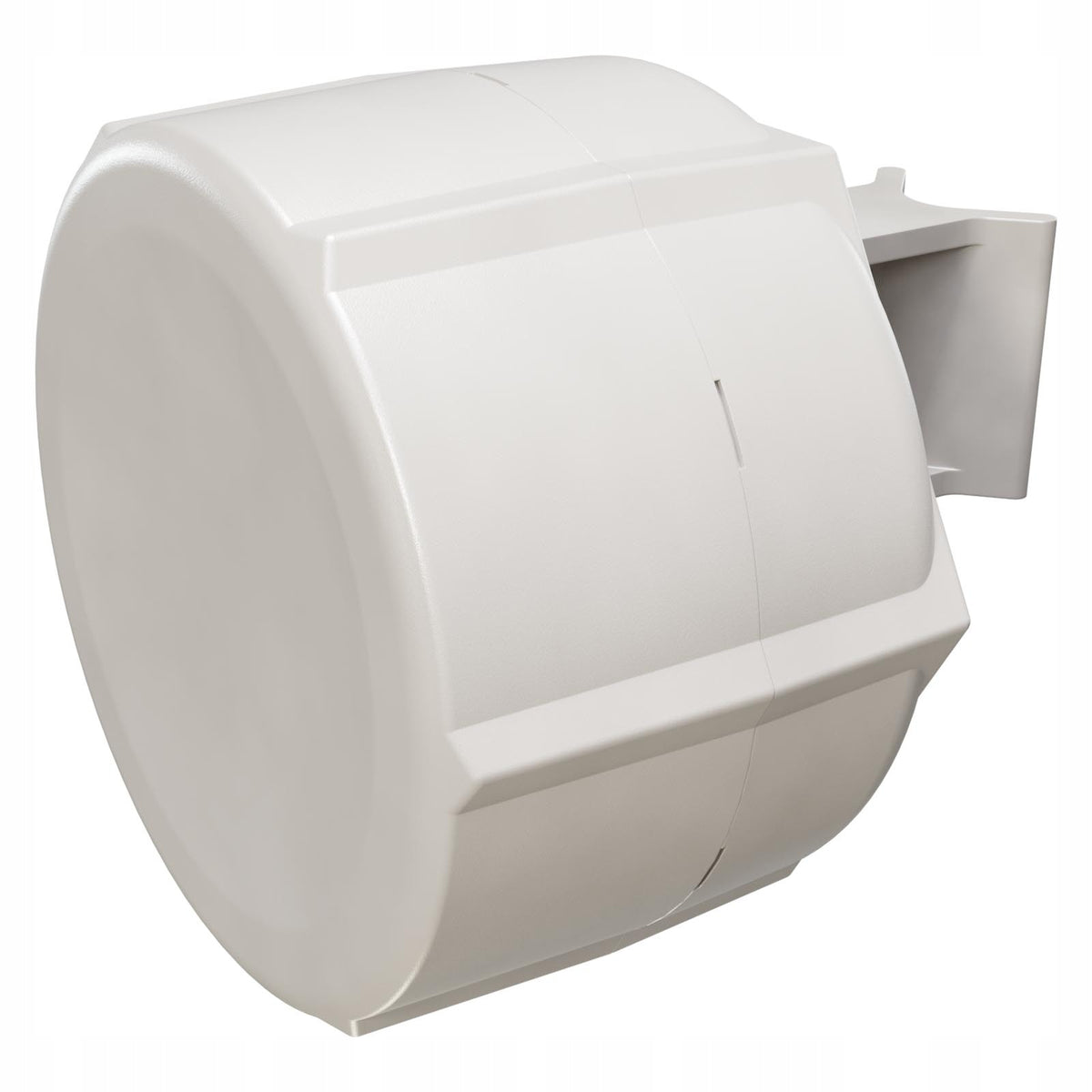

MikroTik SXT LTE7 kit is a rugged external CPE LTE device with a new R11e-LTE7 modem, with additional support for 32 (1500 MHz) and 28 (700 MHz) bands. It provides stable, high-speed internet where phones fail – ideal for farms, off-grid connections and rural estates.

Now with better uplink, PoE input/output and wide power range 12 to 57 V. Mount, connect and stay online. Faster data transfer. Less delays. The same proven SXT design that remains hidden in sight.

The new MikroTk SXT LTE7 kit has a built-in 3G/4G/LTE modem o max. transmission bandwidth 300 Mbps when downloading data and 100 Mbps when sending them. The device is equipped with a QCA9531 processor with a clock speed of 650 MHz and 64 MB of RAM.

LTE cat. 7 supports bands:

• 1/3/5/7/8/20/28/32/38/40/41
• and supports the function of band aggregation (carrier aggregation).

It is equipped with two Micro-SIM and slot miniPCI-e sockets. It never hurts to have additional options when it comes to cellular coverage. In addition, the LTE modem enables the aggregation of bands (carrier aggregation), so that SXT can use multiple LTE bands simultaneously. This is a huge advantage when there are many mobile users in the area. It provides better responsiveness in a crowded environment and higher performance for weaker signals in rural areas.

The device is adapted for outdoor installation, perfectly suited for places where it is impossible to get good cellular coverage. The quality of the connection is informed by LEDs, thanks to which we can set the SXT in the right place and direction.

SXT LTE7 kit has a antenna with a gain of 9 dBi ensuring a good connection in places where other devices can not cope.

SXT LTE7 has 2x Fast Ethernet ports and PoE function (PoE-in on Ether1, PoE-out on Ether2). This means the SXT can power other devices or be powered by other devices, making cable management much easier.

The device comes with a 24V 1.2A power supply , but can also support a wide voltage range of 12-57V and is compliant with the 802.3af/at standard .

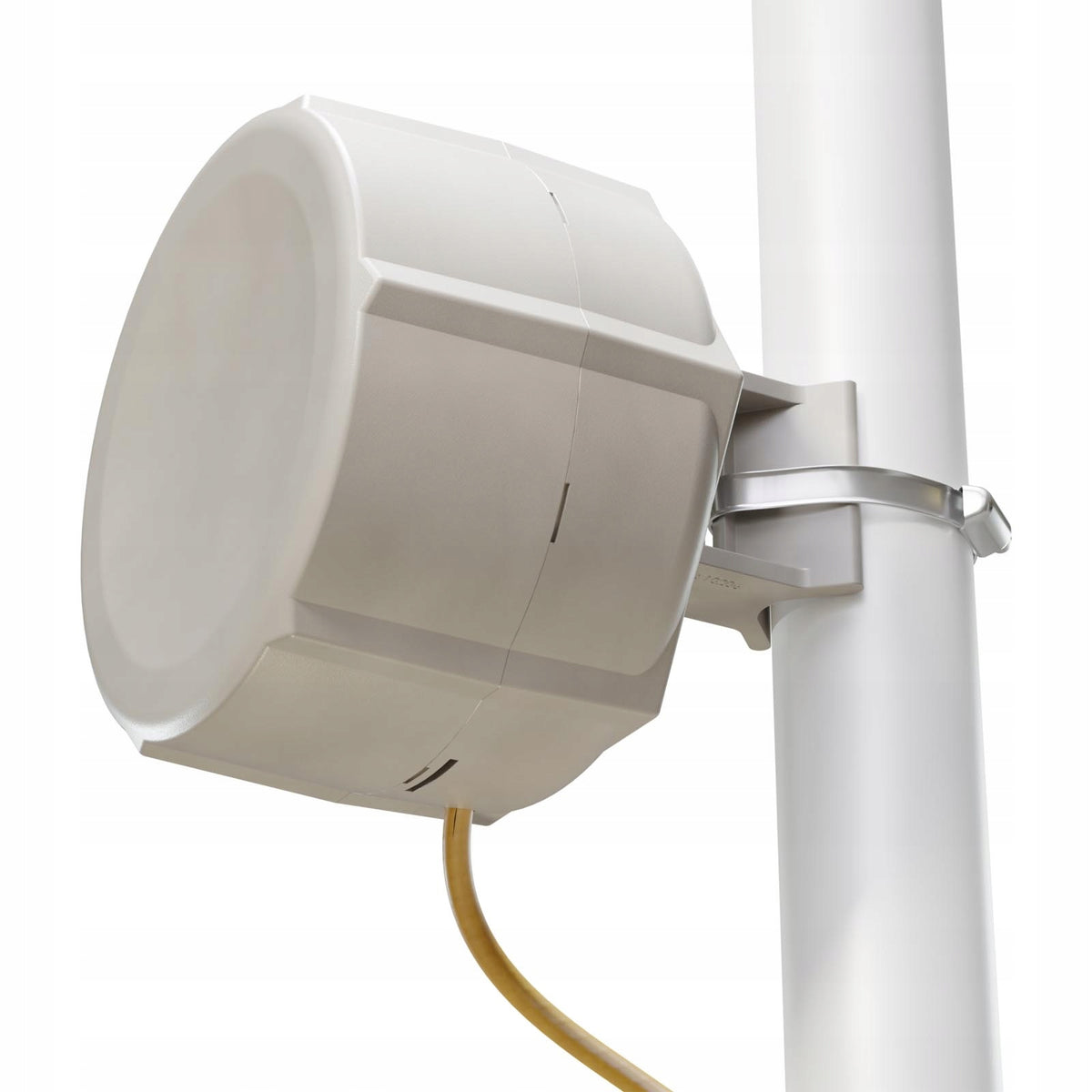

The set also includes a Gigabit PoE injector, a metal cable tie and a pole/mast mounting bracket.

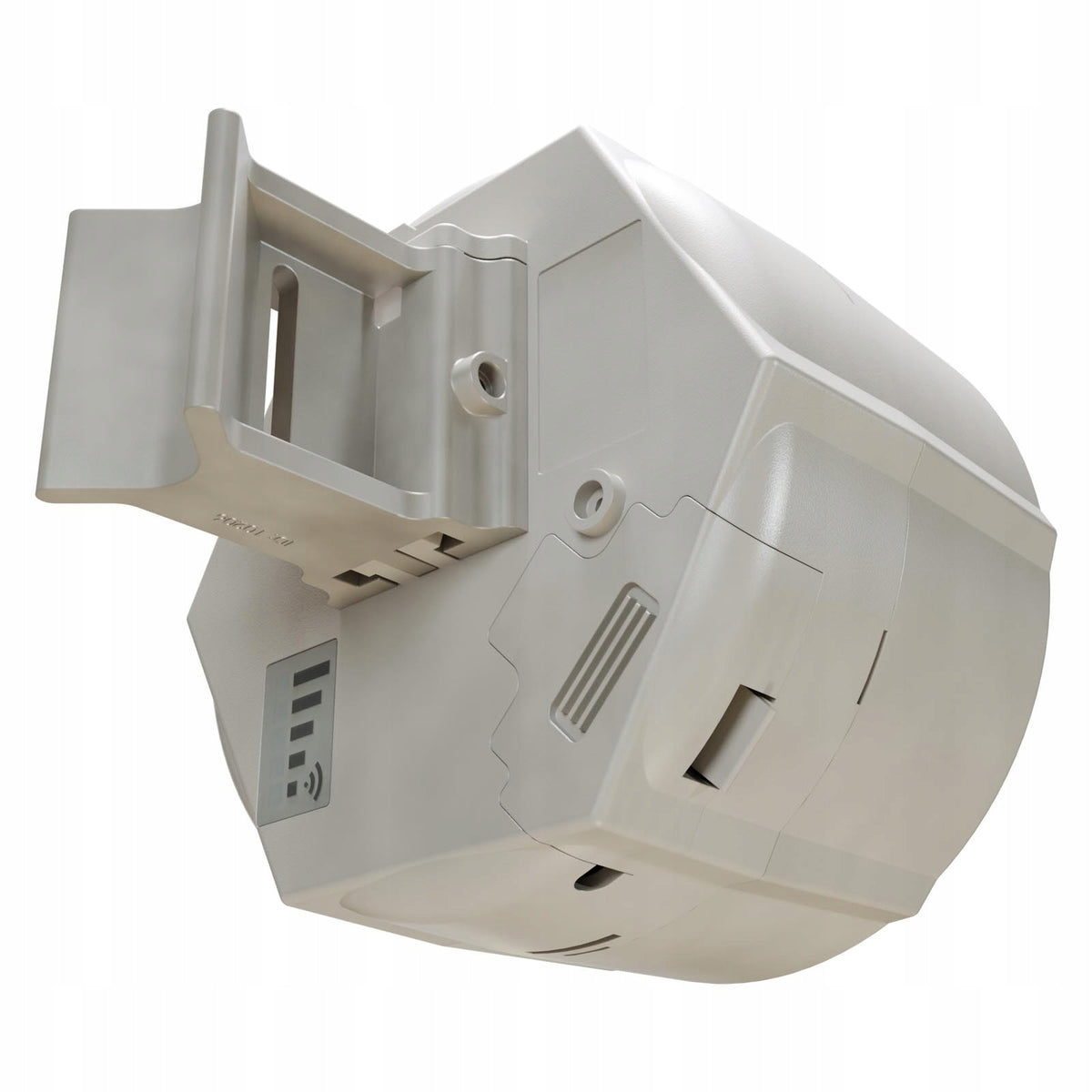

The device can be mounted on the wall using MikroTik quickMOUNT (QM) or MikroTik quickMOUNT PRO (QMP) mounts, also available in our offer. .

All new CAT7 LTE devices also support 2x2 MIMO Downlink technology and carrier aggregation. This means that they can use multiple LTE bands at the same time. This is a huge advantage when there are many mobile users in the area. This provides better responsiveness in a crowded environment and higher performance for weaker signals in rural areas.

• Processor
• QCA9531
• Architecture
• MIPSBE
• Number of cores
• 1
• Clocking
• 650 MHz
• RAM
• 64 MB DDR2
• Embedded memory
• 16 MB
• Type of built-in memory
• Flash
• Ethernet port
• 2x Fast Ethernet 10/100 Mbps ports
• Slots SIM
• 2x microSIM
• MiniPCI-e slots
• 1
• Power Input
• PoE-in (on port eth1)
• Power Output
• PoE-out (on port eth2)
• max. per output port (input < 30 V): 600 mA,
• max. per port output (input > 30 V): 400 mA
• Voltage range
• 12-57 V DC (passive PoE 802.3af/at on Ether port1)
• Maximum power consumption
• 7 IN
• 24 W (with load)
• Power supply
• 24V 1.2A
• Max. output to port (input < 30 V)
• 600 mA
• Max. output total
• 600 mA
• License
• Level 3
• Operating system
• RouterOS v7
• Certificates
• CE/RED, EAC, ROHS
• Dimensions
• 140 x 140 x 56 mm
• Admissible operating temperature
• From -40 to 60°C
• Properties of wireless transmission
• LTE modem
• R11e-LTE7
• TAC
• 35312597
• LTE
• 7 (300 Mbps downlink, 100 Mbps uplink)
• LTE bands FDD
• 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
• LTE TDD bands
• 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
• 3G bands
• 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
• Category 3G
• R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• MIMO downlink
• 2x2
• MIMO uplink
• 1x1
• Supported combinations of 2xCA
• B1+B1/3/5/7/8/20/28/32/40/41 (100 MHz)
• B3+B1/3/5/7/8/20/28/32/40/41 (100 MHz)
• B5+B1/3/5/7/28/40/41 (100 MHz)
• B7+B1/3/5/8/20/28
• B8+B1/3/7/20/32/40/41 (100 MHz)
• B20+B1/3/7/32/38/40
• B28+B1/3/5/7/32
• B38+B38
• B40+B40
• B41+B41 (100 MHz)
• Supported 2×CA (UL) LTE bands (adjacent bands only)
• B1+B1
• B3+B3
• B5+B5
• B7+B7
• B8+B8
• B38+B38
• B40+B40
• B41+B41
