Prekė: LCD ekranas modulis Pico-ResTouch-LCD-2.8. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 19804

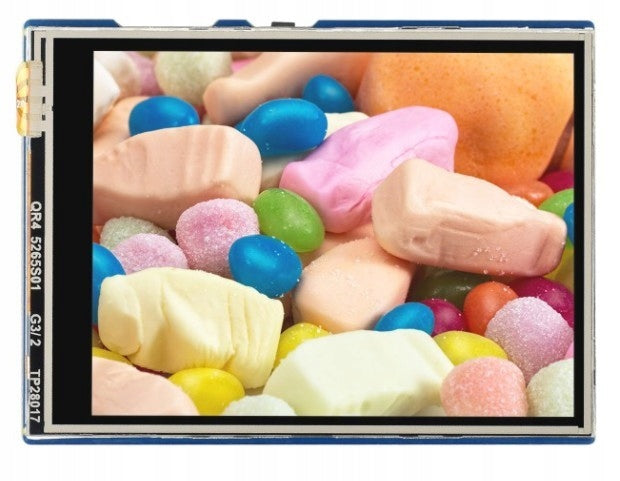

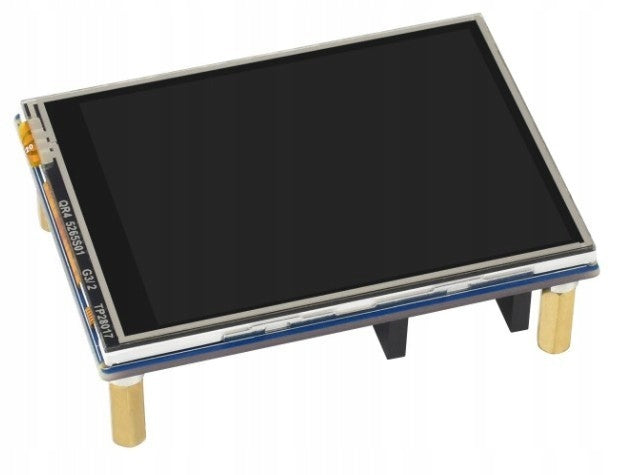

Pico-ResTouch-LCD-2.8 - module with LCD display IPS 2,8" 320x240 with touch screen for Raspberry Pi Pico
Description

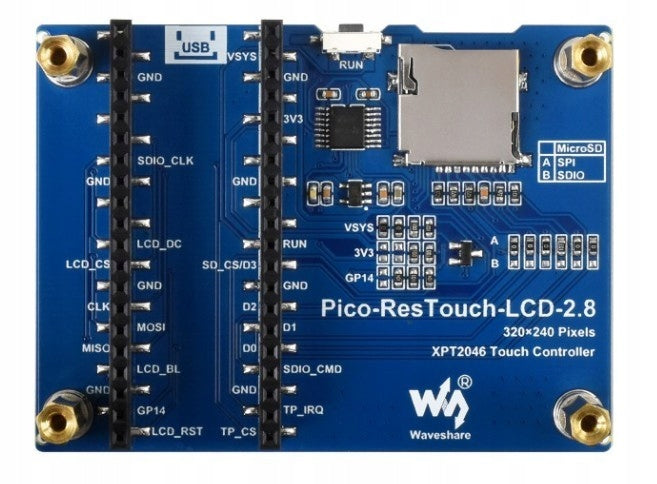

Module with color IPS LCD display with a diagonal of 2,8" and a resolution of 320x240 px designed to work with Raspberry Pi Pico. It is equipped with a resistive touch screen, has a built-in ST7789 controller and XPT2046 controller, which realize communication via SPI interface. It can display content in the full 262K color gamut, and a microSD card slot is placed on the board. The module is compatible with 5 V systems. Full documentation with examples is available on the product wiki page.
Properties
- Display Type: LCD IPS
- Diagonal 2,8"
- Resolution: 320x240 px
- Interface: SPI
- Resistive touch screen
- Spot size: 0,18 × 0,18 mm
- Display Color: RGB 262K
- Wide viewing angle
- Controller ST7789
- XPT2046 Touch Screen Controller
- Voltage: 5 V
- PCB Dimensions: 70,2 x 50,2 mm
- Display dimensions: 57,6 x 43,2 mm
Comes with
- Pico-ResTouch-LCD-2.8
- Set of distances
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 19804 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5904978304502 |
| Parametry | Batteries included | no |
