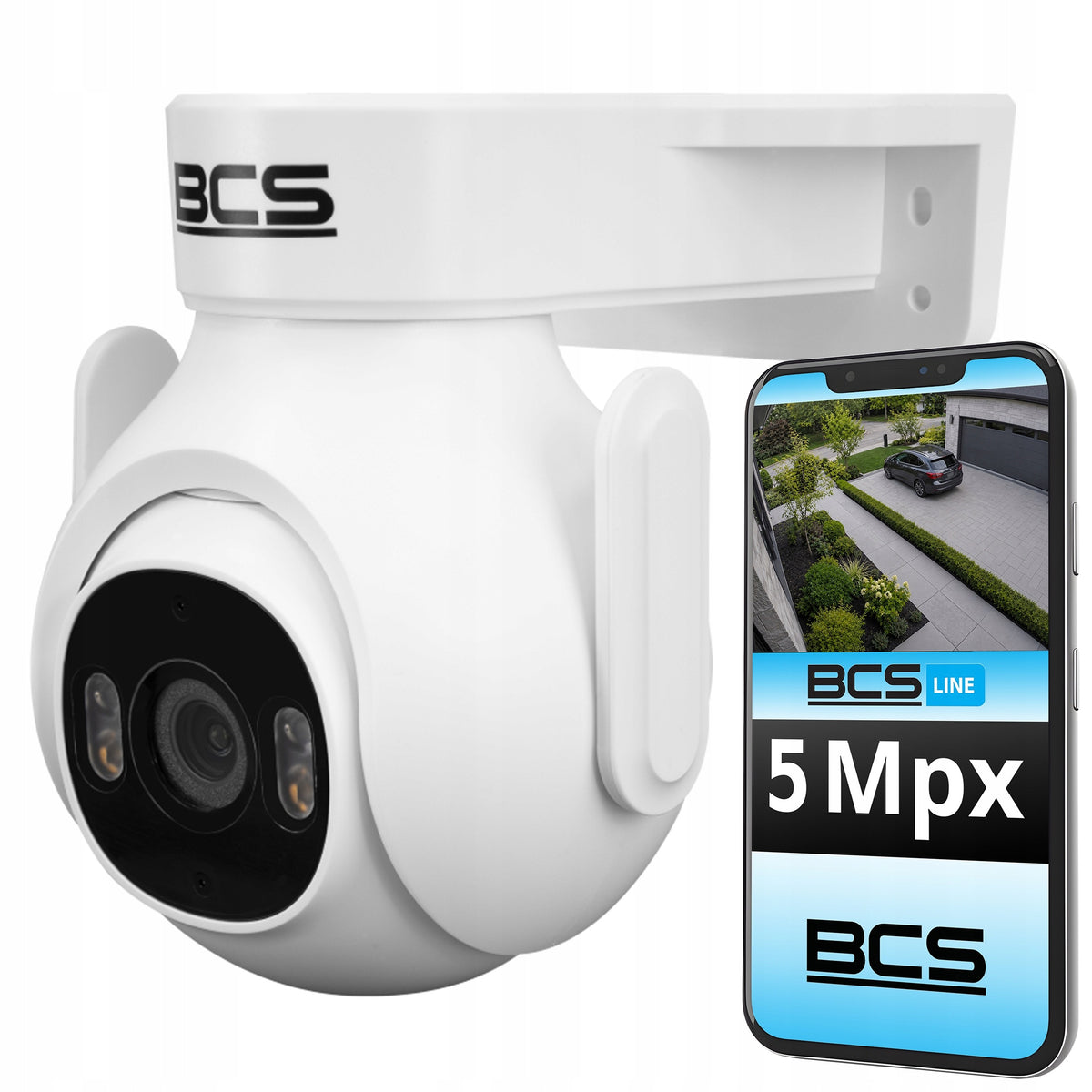

Lauko WiFi kamera BCS, 5 Mpx, suktinė, judesio sekimas

Trumpai apie prekę

Prekė: Lauko WiFi kamera BCS, 5 Mpx, suktinė, judesio sekimas. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-PTHOME05

⬇ Wi-Fi 6 outdoor rotating camera BCS-L-PTHOME05 5 Mpx – home and business monitoring with AI, automatic tracking and active deterrence ⬇

💡 Why should you buy from us?

By buying from us, you gain not only proven equipment, but also professional support at every stage of the purchase. Thanks to this, you can easily choose the right solution, start devices faster and more convenient to use them every day.

🏢 We are one of the largest Polish companies specializing in the distribution and sale of monitoring systems, alarm systems and consumer electronics.

📘 We prepare our own detailed operating instructions for all our products, so that it will be easier for you to go through the independent process of commissioning and configuration of devices.

📱 The products we sell work on mobile applications without cumbersome advertising.

🛠 We have a technical support department that will be able to help you with most technical problems by phone or e-mail.

✅ By choosing our offer, you gain not only the product, but also experience, help and comfort of purchase.

⭐ The most important features

✅ High image resolution 5 Mpx – detailed image in 2880 × 1620 resolution

✅ Rotating head – remote adjustment of the observation direction in the range of 355° horizontally and 90° vertically

✅ Human and vehicle recognition – more effective detection of significant events and reduction of unnecessary alarms

✅ Automatic tracking – the camera automatically follows the detected object moving in its field of view

✅ Perimeter protection – reaction to intrusion into the area and crossing the designated line

✅ IR night light and white light up to 30 m – monitoring after dark in black and white or colour mode

✅ Active deterrence – optical-acoustic alarm with warning white light

✅ IP66 protection class – housing adapted to work outdoors all year round

⚡ What else?

✅ Wi-Fi 6 and wired RJ-45 connectivity – flexible camera connection to your home or business network

✅ Built-in microphone and speaker – listening to the environment and conducting a two-way conversation

✅ Saving to microSD card up to 256 GB – local recording without the need for a recorder

✅ H.265 image compression – less memory card space consumption and more efficient transmission

✅ 3,6 mm object with 78° viewing angle – wide view of the observed terrain

✅ Patrol after saved positions – the camera itself circulates between the set places

✅ BCS Line application – image preview, camera control and playback of recordings from the phone

✅ Power supply 12 V DC – power supply included

⚡ Application of the camera – where it works best

Rotating Wi-Fi 6 BCS-L-PTHOME05 camera is suitable for monitoring home, property, company and other outdoor objects. Head rotation, human and vehicle recognition and automatic tracking make it easy to control the environment and react quickly to events. IP66 protection class and operating range from −20 °C to +50 °C allow for external installation throughout the year.

▶ Home and property – control of entrance, driveway and surroundings of the building

▶ Garden or plot – preview of the area during absence

▶ Company and facilities – supervision of the entrance and economic area

▶ Parking and driveway – observation of vehicles and people nearby

▶ Construction – monitoring of terrain, materials and equipment

▶ Cottage – remote control of the facility throughout the year

⚡ Remote access from the phone via the BCS Line application

You can connect to the camera using your phone or tablet after installing the BCS Line app. You can check the live image, control the rotation of the camera and view the recorded recordings – no matter where you are.

What do you gain in the BCS Line app?

✅ Live view – quick check of the camera image

✅ Camera control – rotating the head horizontally and vertically

✅ Event notifications – information after detection of a human or vehicle

✅ Access to recordings – viewing materials from microSD card

✅ Two-way audio – listening to the surroundings and talking through the camera

✅ Android and iOS support – the application works on phones and tablets

⚡ Fuller view of the property – rotating camera head

The rotating design allows you to observe a larger area than the fixed model. From within the app, you rotate the head horizontally and vertically to check the entrance, gate, driveway or other place around the building.

✔ 355° horizontal rotation – almost full wheel from one mounting point

✔ Vertical 90° tilt – frame from the ground to the upper line of the observed terrain

✔ Control from the phone – change the observed area from anywhere

✔ Patrol after saved positions – the camera circulates between the set places without the participation of the operator

⚡ Automatic tracking – the camera follows the movement

When the camera recognizes a human or vehicle, it rotates the head itself and follows it, helping to keep the object in the frame longer. You don’t have to hold your phone in your hand during this time.

✔ Tracking the detected object – the camera rotates behind a human or vehicle

✔ Human and vehicle recognition – tracking starts after recognition, not with every movement

✔ Less unnecessary reactions – the camera does not chase every change in the frame

✔ Work without support – the function also works when you are not looking at the preview

⚡ Human and vehicle detection – notifications that make sense

The camera distinguishes ordinary movement from the presence of a human and a motor vehicle. Thanks to this, the phone speaks when something important is actually happening, and not with every change of lighting or moved branch.

✔ Human recognition – camera means a person in the frame and sends a notification

✔ Recognition of a motor vehicle – separate detection of a car in the driveway or parking lot

✔ Less false alarms – irrelevant events do not reach the phone

✔ Notifications in the application – information goes to the phone immediately after the event

⚡ Perimeter protection – reaction to entering the designated area

In addition to detecting objects, the camera keeps an eye on the boundaries you set in the application. It reacts when someone crosses the indicated line or enters a protected area – for example, at a gate, gate or along a fence.

✔ Crossing the line – alarm after crossing the designated limit

✔ Intrusion into the area – reaction after entering the protected zone

✔ Boundaries set in the application – you can adjust them to the gate, gate or fence

✔ Cooperation with active deterrence – detected event can trigger an alarm

⚡ Monitoring also after dark – IR illumination and white light up to 30 m

The camera uses infrared and white LED light with a range of up to 30 meters. Thanks to this, it provides a clear image even after dark and allows you to adjust the way of illumination to the place and situation.

✔ Infrared mode – discreet monitoring with black and white image, without constant illumination

✔ White light mode – colorful and more detailed image after dark

✔ Lighting range up to 30 m – includes driveway, gate or part of the garden

✔ Mechanical infrared filter – automatic transition between day and night mode

⚡ Two-way conversation and active deterrence

The camera has a built-in microphone and speaker, allowing for two-way audio communication. From the app, you can hear what’s happening at the camera and then immediately speak to the person in front of the lens.

The same speaker supports active deterrence – when an event is detected, the camera can trigger an audible alarm and a warning white light.

✔ Two-way audio communication – you listen and speak through the camera

✔ Optical-acoustic alarm – reaction to detected event without operator

✔ Warning white light – signal that the area is being observed

✔ Practical application – conversation with a courier, guest or reaction to an undesirable presence

⚡ Outdoor work all year round – IP66 protection class

The housing has IP66 protection class: full protection against dust and resistance to strong water jets. The camera operates in the range from −20 °C to +50 °C with air humidity up to 95%, so frost, heat and humid mornings do not interrupt monitoring.

✅ IP66 protection class – protection against rain, snow, dust and dust

✅ Working from −20 °C to +50 °C – a range covering typical Polish winter and summer heat

✅ Moisture up to 95% – fog and morning dew do not affect the operation of the device

✅ Dimensions 116 × 138 × 139 mm – a compact body that does not dominate the facade

✅ Weight 0,4 kg – low load on the substrate

✅ White housing – neutral colour suitable for bright walls and insteps

⚙ Camera technical specification

• Model: BCS-L-PTHOME05, line BCS LINE
• Type: outdoor Wi-Fi IP camera, rotating
• Resolution: 5 Mpx, 2880 × 1620
• Converter: 1/3" CMOS
• Lens: fixed focal length 3,6 mm, F1.6
• Angle of view: level 78°, vertical 40°, diagonal 93°
• Rotation range: level 0 to 355°, vertical 0 to 90°
• Automation: automatic tracking, patrol after saved positions
• Intelligent functions: recognition of man and motor vehicle
• Perimeter protection: intrusion into the area, crossing the line
• Night light: IR LED up to 30 m and white light up to 30 m
• Color night vision: yes, using white LEDs
• Active deterrence: optical-acoustic alarm, white warning light
• Day/night mode: mechanical ICR infrared filter
• Video compression: H.265
• Stress: 2 — main 2880 × 1620, additional 640 × 360
• Bitrate: 80 to 4096 kbps
• Image functions: DWDR, automatic white balance, 180° image rotation
• Audio: built-in microphone and speaker, two-way communication, G.711A
• Memory: microSD card up to 256 GB
• Application: BCS Line (Android, iOS)
• Wi-Fi: IEEE 802.11b/g/n/ax, 2,4 GHz, Wi-Fi 6
• Wired network: RJ-45 10/100 Mbps
• Power supply: 12 V DC 1 A, max. 4,5 W, power supply included
• Protection class: IP66
• Working conditions: from −20 °C to +50 °C, humidity up to 95%
• Dimensions: 116 × 138 × 139 mm
• Weight: 0,4 kg
• Housing color: white

⭐ FAQ – Frequently Asked Questions and Answers

❓ How to connect the camera to the phone?

Just download the BCS Line app, then add a camera and point to your Wi-Fi network. Once your device is paired, you have full access to the image and camera features on your smartphone.

❓ Is the camera suitable for outdoor mounting?

Yes. The housing has an IP66 rating, and the operating range includes temperatures from −20 °C to +50 °C.

❓ Do I need a DVR for the camera?

No. The camera records itself to a microSD card and connects to your phone without additional devices.

❓ Can the camera be connected with a cable instead of Wi-Fi?

Yes. The camera has an RJ-45 10/100 Mbps Ethernet port, so you can choose a wired connection.

❓ Which memory card should I choose?

The camera supports microSD cards up to 256 GB. For full resolution recording, we recommend a speed class of at least V30.

❓ Does the camera power through a network cable?

No. The camera requires 12 V DC power – the appropriate power supply is included.

❓ What is active deterrence?

When an event is detected, the camera can trigger an audible alarm and a warning white light, indicating that the area is being observed.

❓ Does the camera distinguish humans from animals?

The camera recognizes a human and a motor vehicle, thus reducing the number of event notifications irrelevant.
