Lauko prieigos taškas CUDY AP1300

Trumpai apie prekę

Prekė: Lauko prieigos taškas CUDY AP1300. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Cudy
• Modelis: AP1300 Outdoor
• Plotis: 11 mm
• Aukštis: 33 mm

Cudy AP1300 Outdoor Access Point – Reliable Outdoor Wi-Fi

The Cudy AP1300 Outdoor is an advanced AC1200 Wi-Fi access point that provides a fast, dual-band outdoor connection. Equipped with Beamforming technology, MU-MIMO and support for up to 100 simultaneous connections, it is ideal for parks, farms, parking lots or other outdoor spaces. The IP65 enclosure protects the device from rain, dust and extreme temperatures, ensuring stable operation even in the most demanding weather conditions. With PoE technology and Mesh functionality, the AP1300 enables you to easily extend your network coverage, offering a seamless Wi-Fi experience across large areas.

AC1200 Dual Band Wi-Fi with Beamforming Technology

The Cudy AP1300 Outdoor supports high-speed dual-band Wi-Fi 5, offering speeds of up to 867 Mbps in the 5 GHz band and 300 Mbps in the 2,4 GHz band. With Beamforming technology, the Wi-Fi signal is precisely routed to connected devices, which improves connection quality and range. Additionally, the MU-MIMO feature allows you to operate multiple devices simultaneously, minimizing latency and increasing productivity. If one access point is not enough, the AP1300 allows you to create Mesh networks, allowing you to seamlessly and efficiently extend your Wi-Fi coverage anywhere.

Durability in all weather conditions

The IP65 standard Cudy AP1300 Outdoor enclosure provides full protection against rain, dust and other external factors, making it an ideal solution for outdoor applications. The device is resistant to extreme temperatures from -40°C to 65°C, and is equipped with protection against surges (4 kV) and electrostatic discharges (8 kV). These features ensure that the AP1300 can reliably operate in the most demanding environments, providing a stable Wi-Fi connection in all weather conditions.

Easy installation and advanced power options

The Cudy AP1300 Outdoor is designed for easy installation and versatile mounting options. The set includes a mounting kit for installation on a wall or pole. With support for power supply via PoE (802.3at/af or 48-57V Passive PoE), the device eliminates the need for additional power cables, which simplifies installation. The Gigabit Ethernet port allows for a high-speed wired connection, while the automatic restart scheduler feature ensures uninterrupted operation of the device. AP1300 is a reliable and easy to configure access point that will meet the expectations of even the most demanding users.

Specification

Features

• 2,4 GHz: Yes
• 5 GHz: Yes
• 6 GHz: No
• Maximum data transfer rate: 867 Mbit/s
• Maximum data transfer rate (2.4 GHz): 300 Mbit/s
• Maximum data transfer rate (5 GHz): 867 Mbit/s
• Data transfer rate over Ethernet LAN: 100 Mbit/s, 1000 Mbit/s
• Communication standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
• Frequency range: 80 MHz
• MIMO: Yes
• Type of MIMO: Multi User MIMO
• Adjust AP Mode Features: Lattice Networks
• Wi-Fi Multimedia (WMM) / (WME): Yes
• Fast roaming: Yes
• Frequency limit: Yes
• Working Modes: Wireless Access Point, Wireless Router, Wireless Extender, WISP
• Wireless insulation: Yes
• Band control: Yes
• Service Quality of Service (QoS): Yes
• BeamForming: Yes
• Maximum external range: 170 m

Protection

• Encryption / security: WPA-PSK, WPA2-PSK
• MAC Address Filtering: Yes
• Service set identifier (SSID) functions: Multiple SSIDs

Ports and interfaces

• Number of Ethernet LAN ports (RJ-45): 1

Power

• PoE support: Yes
• Supported Power over Ethernet (PoE): Active PoE, Passive PoE
• Operating voltage: 24 - 57 V

Design

• Purpose: Rod, Wall
• Product color: White
• IP rating: IP65
• Reset button: Yes
• WPS button: Yes

Antenna

• Antenna type: External
• Antenna functions: Detachable antenna
• Number of antennas: 2
• Type of antenna plug: RP-SMA

Efficiency

• Set of chips: MT7621DA+MT7613B+MT7603E
• Embedded Processor: Yes
• CPU clocking: 880 MHz
• Flash memory size: 16 MB
• Internal storage capacity: 128 MB
• Operating system: Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Weight and sizes

• Product width: 100 mm
• Product depth: 53,7 mm
• Product height: 240 mm
• Antenna width: 2,16 cm
• Antenna depth: 1,55 cm
• Antenna height: 19,8 cm

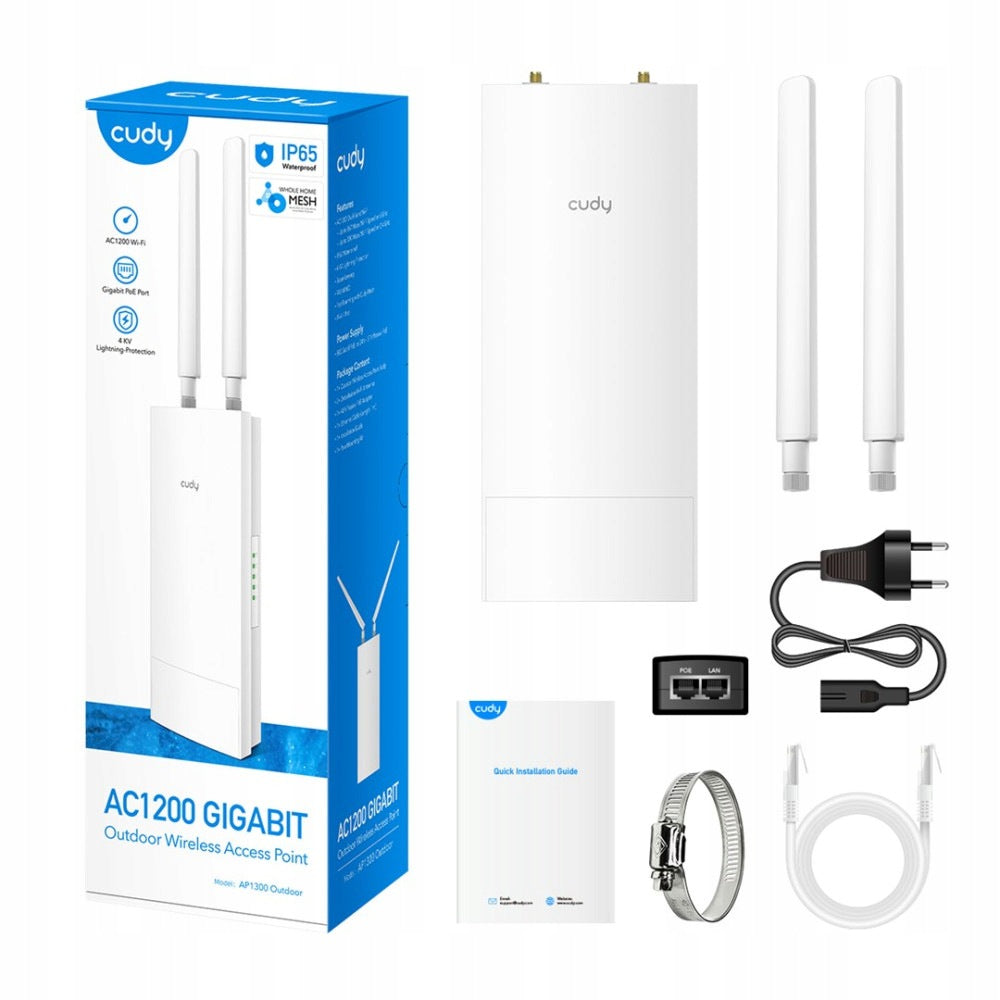

Contents of the pack

• PoE adapter included: Yes
• Wires: LAN (RJ-45)
• Assembly kit: Yes
• Short instruction manual: Yes
• Antenna included: Yes

Working conditions

• Relative humidity range: 10 - 90%
• Temperature range (operation): -20 - 60 °C
• Temperature range (storage): -40 - 70 °C
• Admissible relative humidity: 5 - 90%

Product Features:

• Operating system: Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
• 6 GHz: No
• Flash memory size: 16 MB
• WPS button: Yes
• Number of antennas: 2
• Antenna type: External
• Service set identifier (SSID) functions: Multiple SSIDs
• Frequency limit: Yes
• Purpose: Rod, Wall
• Product width: 100 mm
• Internal storage capacity: 128 MB
• PoE support: Yes
• Admissible relative humidity: 5 - 90%
• BeamForming: Yes
• Supported Power over Ethernet (PoE): Active PoE
• Communication standards: IEEE 802.11n
• Encryption / security: WPA-PSK
• Assembly kit: Yes
• Product height: 240 mm
• Temperature range (storage): -40 - 70 °C
• Product depth: 53,7 mm
• Maximum external range: 170 m
• Wi-Fi Multimedia (WMM) / (WME): Yes
• IP rating: IP65
• Working Modes: Wireless Access Point, Wireless Router, Wireless Extender, WISP
• Antenna functions: Detachable antenna
• Data transfer speed over Ethernet LAN: 1000
• Product color: White
• CPU clocking: 880 MHz
• MAC Address Filtering: Yes
• Number of Ethernet LAN ports (RJ-45): 1
• Maximum data transfer rate (5 GHz): 867 Mbit/s
• Operating voltage: 24 - 57 V
• Temperature range (operation): -20 - 60 °C
• Band control: Yes
• Maximum data transfer rate: 867 Mbit/s
• Antenna included: Yes
• Service Quality of Service (QoS): Yes
• Maximum data transfer rate (2.4 GHz): 300 Mbit/s
• Set of chips: MT7621DA MT7613B MT7603E
• Wireless insulation: Yes
• Short instruction manual: Yes
• Type of MIMO: Multi User MIMO
• Reset button: Yes
• Frequency range: 80 MHz
• Wires: LAN (RJ-45)
• PoE adapter included: Yes
• Warnings: Do not expose to prolonged moisture.
• Fast roaming: Yes
• 2,4 GHz: Yes
• Antenna depth: 1,55 cm
• Adjust AP Mode Features: Lattice Networks
• Antenna width: 2,16 cm
• 5 GHz: Yes
• Relative humidity range: 10 - 90%
• Type of antenna plug: RP-SMA
• Embedded Processor: Yes
• Antenna height: 19,8 cm
• MIMO: Yes
• Manufacturer: Cudy
• Model: AP1300 Outdoor
• Working Mode: Access Point
• Band: 2,4 GHz, 5 GHz
• Additional Features: Dual WAN
• Antenna: built-in
• Wireless operation standard: 802.11ac (Wi-Fi 5)
• Highest supported standard: 802.11ac (Wi-Fi 5)
• LAN port operating standard: 10/100/1000 Mbps
• Built-in modem: no modem
• Depth: 9
• Number of LAN ports (RJ-45): 1
• Width: 11
• Height: 33
• Management: website

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Cudy
Parametry	Mode of operation	Access Point
Parametry	Wireless operation standard	802.11ac (Wi-Fi 5)
Parametry	Internal modem	no modem
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Additional features	Dual WAN
Parametry	Width	11 mm
Parametry	Height	33 mm
Parametry	Depth	9 mm
Parametry	Product weight with unit packaging	0.869 kg
Parametry	EAN (GTIN)	6971690792893
Parametry	Manufacturer code	AP1300 Outdoor
Parametry	Model	AP1300 Outdoor
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11ac (Wi-Fi 5)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Band	2,4 GHz,5 GHz
