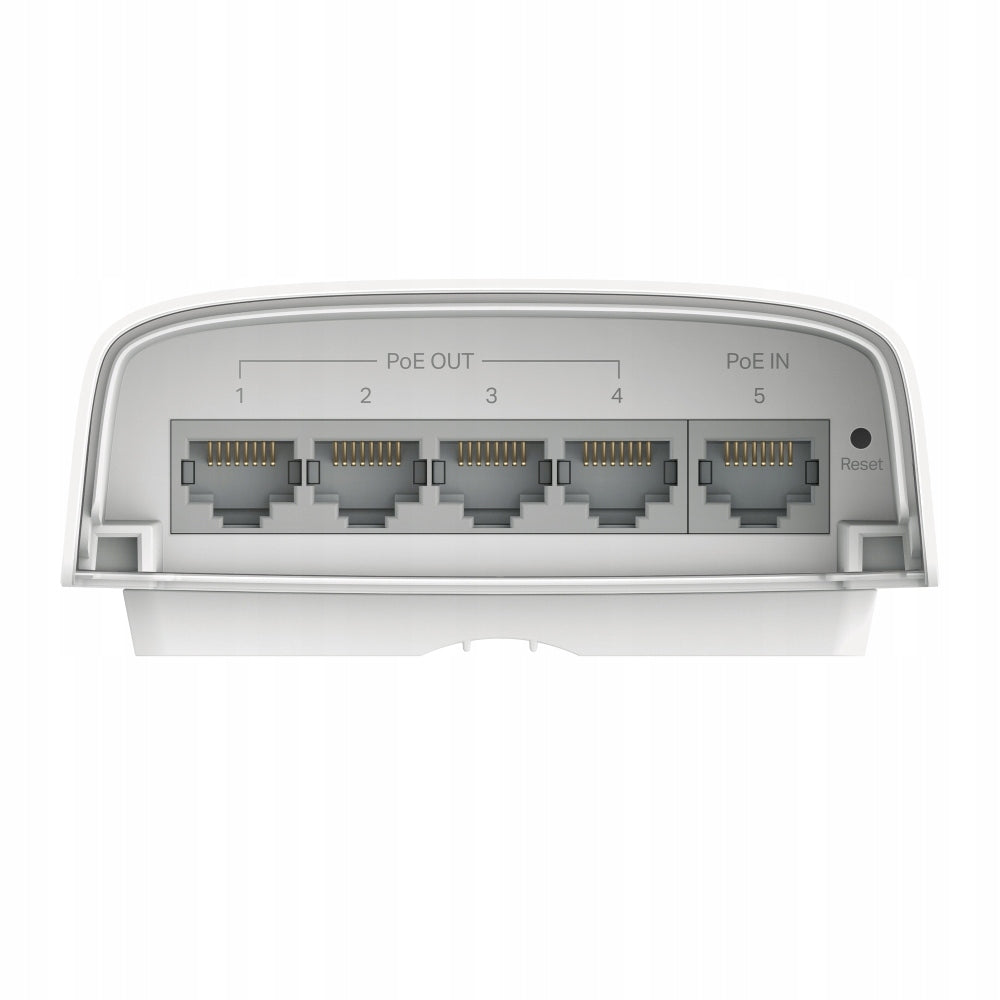

Lauko komutatorius TP-LINK SG2005P-PD, POE-IN

Trumpai apie prekę

Prekė: Lauko komutatorius TP-LINK SG2005P-PD, POE-IN. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 601291389

• Manufacturer: TP-LINK
• Manufacturer code: SG2005P-PD
• EAN code: 4897098689486

NOTE! Important Information!

SG2005P-PD Omada Smart Switch, 5 Gigabit Ports Including 1 PoE++ IN Port and 4 PoE+ OUT Ports

• Up to 200 m PoE transmission: The PoE Passthrough standard allows you to increase the PoE transmission range (source to device) from 100m to a maximum of 200m (up to 100m to switch + up to 100 meters from switch), without losing gigabit speeds. It is ideal for remote surveillance cameras and access points.
• 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 64W / 44W / 19W/ 6W output PoE power supply during power supply - according to 802.3bt Type 4 (90W), 802.3bt Type 3 (60W), 802.3at and 802.3af PoE standard, respectively
• Resistance to weather conditions: IP55 protection class and UV resistant housing. The permissible temperature in the range from -40 to 60 °C and protection against atmospheric discharge 4kV ensures stable operation even in difficult conditions outside the building.
• Easy installation: Placing the unit on a wall or pole is hassle-free, thanks to the included mounting kit.
• Centralized cloud management: Integration with Omada SDN enables cloud access, remote management and multi-location management.
• Value and capability enhancement features: Static Routing, Access Control List (ACL), QoS, and VLAN.

PoE switch powered by PoE:

• Simple deployment of networks outside the building
• Omada Smart Gigabit Switch
• 1 input PoE++ IN port
• 4 Output PoE+ OUT Ports
• Powered by PoE++/PoE+/PoE
• Total PoE power supply 64 W on 4 output PoE+ ports
• Double PoE range to 200m without losing gigabit speeds
• Gigabit ports
• Easy installation - Pole/wall mounting
• Water and UV resistant housing
• Centralized management of multiple locations
• Static routing

PoE Passthrough standard that allows you to increase the PoE transmission range to a maximum of 200m, without losing gigabit speeds. Eliminate the limitations of access to the electrical network and transfer data along with power with a single cable, thereby simplifying installation and reducing deployment costs. Increase the PoE transmission range (source to device) from 100m to a maximum of 200m without losing gigabit speeds. It is ideal for remote surveillance cameras and access points. 1 input, gigabit PoE++ IN4 port output, gigabit PoE+ ports OUTSupport up to 64W / 44W / 19W / 6W output PoE power supply during power supply - according to 802.3bt Type 4 (90W), 802.3bt Type 3 (60W), 802.3at and 802.3af PoE standard, respectively. The PoE-PD switch automatically detects the required PoE power of your devices and protects non-PoE devices from damage. Weather-resistant housing designed for outdoor useThe IP55 enclosure protection class assessed on the basis of penetration tests ensures that the durable and weather-resistant housing will protect the switch from harsh conditions outside the building. Easy installation, tailored to your needsThe compact design of the switch allows it to be easily and flexibly mounted, for example on an external junction box. The set includes elements for mounting on a wall or pole. Additional value and capabilities

• Static routing - Facilitates the routing of internal traffic for more efficient use of network resources.
• Access Control List (ACL) - The ACL acts as a virtual administrator, allowing all connected devices to obtain data according to user-defined network rules and helps you create the network regulations you need.
• QoS - Prioritize traffic based on QoS by ensuring smooth operation of latency-sensitive applications such as voice and video calls.
• VLAN Secure and flexible management - VLAN enables logical grouping of device management across different physical LANs, increasing data security and reducing data transmission overloads.

Software control of network infrastructure (SDN) with access from the cloudThe software control platform for network infrastructure (SDN) Omada integrates the operation of network devices, including access points, switches and network gateways, providing comprehensive central management from the cloud. Omada enables you to create a highly scalable network - fully controlled with a single interface.

• Switch class: SMART
• Application: Home and small office
• Switching modes: L2,L2+
• Network architecture : GigabitEthernet
• Number of ports 10/100/1000 Mbps: 5
• Number of PoE+ ports: 4
• Number of PoE++ ports: 1
• Console port: No
• Forward mode: Store-and-forward
• Capacity: 10 Gbps
• Transfer speed: 7.44 Mpps
• Package buffer: 4.1 MB
• MAC address table size: 8000
• Support Jumbo frames: Yes
• Jumbo frame size: 9 KB

• Stackable: No
• Number of VLAN Groups: 4000
• VLAN: VLAN Groups - Max. 4K VLAN Groups, 802.1Q VLAN Tagging, MAC Address VLAN: 12 entries, Protocol VLAN, GVRP, Voice VLAN
• Supported Protocols and Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• QoS: Supports 802.1p CoS/DSCP Prioritization, 8 Priority Queues, Queue Weight Configuration, Smoother Performance, Bandwidth Control - Port/Flow-Based Rate Limiting, Prioritization Scheduling Mode: SP (Strict Priority), WRR (Weighted Round Robin), Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Storm Control
• Management, Monitoring, and Configuration: Omada App, Centralized Management, Cloud Access, Zero-Touch Provisioning (ZTP), Management Panel Features: GUI, CLI, SNMP v1/v2c/v3, SNMPTrap/Inform, RMON (Groups 1, 2, 3, 9), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Utilization Monitoring, Cable Diagnostics, EEE, SNTP, System Log
• L2 Features: 16 IP Interfaces - Supports IPv4/IPv6 Interface, Static Routing - 32 Static IPv4/IPv6 Routes, DHCP Server, DHCP L2 Relay, Static ARP Entries, Proxy ARP, Gratuitous ARP, Loopback Detection, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED, Flow Control - 802.3x Flow Control, DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, Link Aggregation: Static Link Aggregation, Up to 8 Aggregation Groups and Up to 8 Ports per Group, LACP 802.3ad, Spanning Tree Protocol (STP): STP 802.1D, RSTP 802.1w, MSTP 802.1s, STP Security: TC Protection, BPDU Filtering/Protection, Root Protection, Mirroring: Port Mirroring, CPU Mirroring, One-to-One Transmission, Many-to-One Transmission, Flow-Based Ingress/Egress/Both
• Enclosure Type: Desktop
• Fan: No
• Power Consumption: 71.5 W
• Environmental Requirements: Operating Temperature: -40~60°C (-40~140°F); Storage Temperature: -40~70°C (-40~158°F); Operating Humidity: 10%~90% RH, Non-Condensing; Storage Humidity: 5%~90% RH, Non-Condensing
• Certifications: CE, FCC, RoHS
• Included Accessories: SG2005P-PD, Mounting Kit, Installation Guide
• Power Supply: Powered by PoE 802.3af/at/bt Power Source, PoE IN Port (Port 5) Compliant with 802.3af/at/bt, PoE OUT Ports (Ports 1-4) Compliant with 802.3af/at PoE, Total PoE Power Budget: 64 W when powered by 802.3bt Type 4 (90 W), 44 W when powered by 802.3bt Type 3 (60 W), 19 W when powered by 802.3at, 6 W when powered by 802.3af
• Dimensions: 100 x 38.5 x 170 mm
