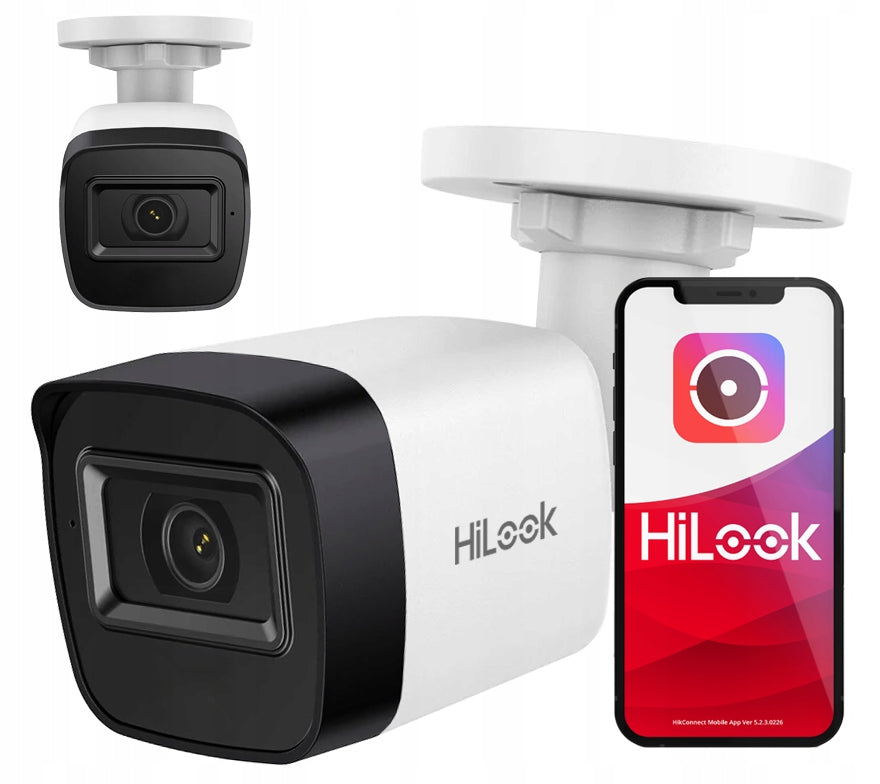

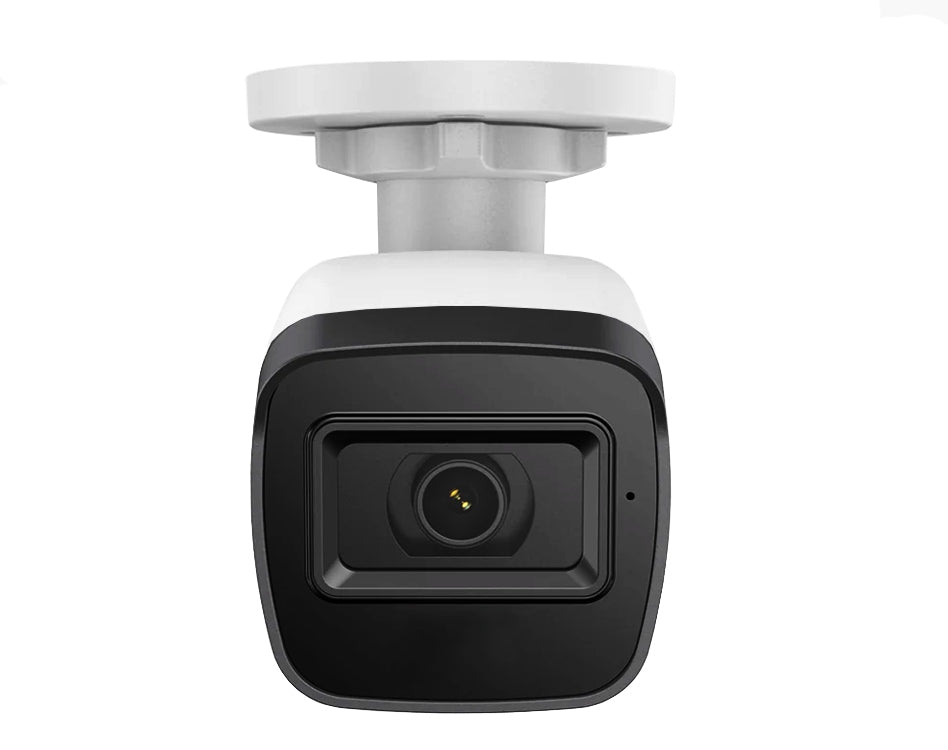

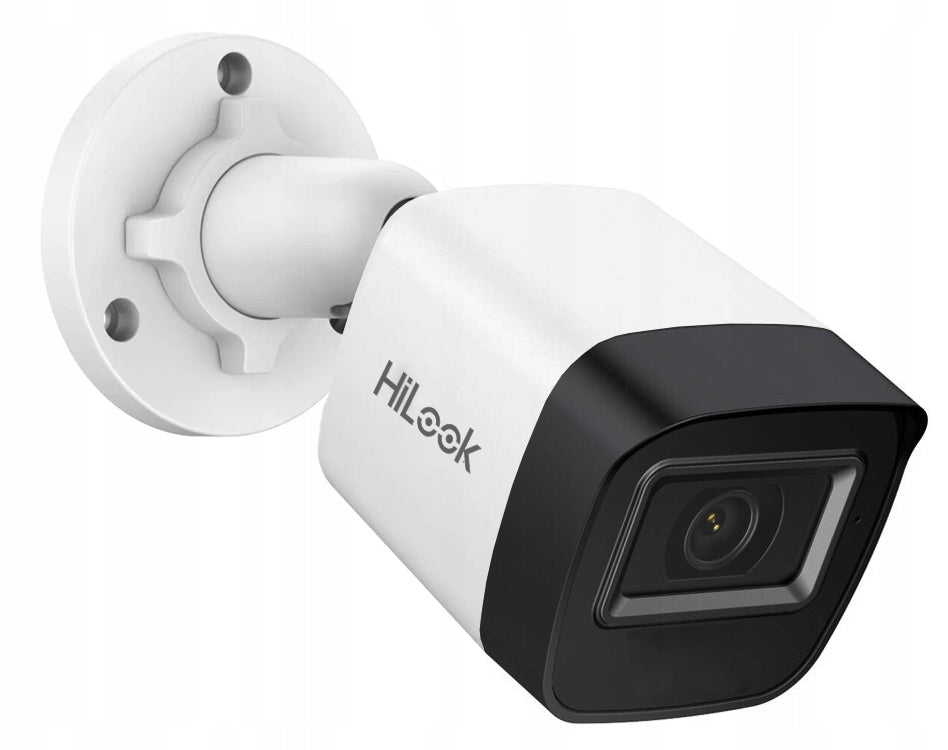

Lauko IP kamera HiLook IPCAM-B2-P, 2 MP, 2.8 mm, Full HD, PoE

Trumpai apie prekę

Prekė: Lauko IP kamera HiLook IPCAM-B2-P, 2 MP, 2.8 mm, Full HD, PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPCAM-B2 HiLook Series

2Mpx / 2,8mm / IR20m / PoE / IP67 / Mobila application

Key features of the camera:

✅ High image resolution and wide recording angle - 1920x1080p (2Mpx) and 100 degrees

✅ IR illuminator with a range of 20 meters, made in black glass technology

✅ Motion detection function, allowing for precise viewing of recordings and saving disk space

✅ Cooperation with Hikvision IP systems and other via ONVIF protocol

✅ Easy installation and operation from the browser WEB, iVMS-4200 or smartphone app

✅ Tight housing IP67, providing full protection against dust and moisture, allowing the camera to be mounted outdoors

• Model: IPCAM-B2-P
• Converter: CMOS 1/2.9” 2MPx
• Image resolution: 1920 × 1080p
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic
• Power Supply: 12V or PoE
• Protection class: IP67

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• Live image preview
• remote playback of recordings from the recorder
• Creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications of events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPCAM-B2-P camera is equipped with automatic night mode - this means that when the lighting in the environment drops, the cameras go into black and white mode, supported by an infrared illuminator. This function allows you to record images via 24/7 in any lighting conditions.

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

• Transducer: 1/2.9" 2 MP CMOS
• PAL/NTSC system
• Number of pixels 1920x1080p
• Sensitivity 0.01 Lux@(F1.2, AGC on. ), 0 Lux with IR
• Electronic shutter 1/3 s to 1/100, 000 s
• Function Day & Night IR cut filter
• 3D DNR Noise Reduction
• Digital WDR
• Synchronization Internal synchronization
• Auto/Color/BW (Black and White)
• Lens: 2.8mm
• Viewing angle: ~100°
• Video compression Main stream: H.265/H.264 Understream: H.265/H.264/MJPEG
• Video Bit Rate 32 Kbps to 8 Mbps
• Main stream Max. Number of video frames

- 50Hz: 25fps (1920 × 1080, 1280 × 720)

- 60Hz: 25fps (1920 × 1080, 1280 × 720)

• Substream max. Number of video frames

- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Image Improvement: BLC, 3D DNR
• Image settings: saturation, brightness, contrast, sharpness, AGC, white balance adjustable by dedicated software or browser
• Switching Day/Night : Auto, Schedule, Day, Night
• Alarm excitation: motion detection, video tampering, network disconnection, IP address conflict
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Power supply: 12 VDC ± 25%, PoE (802.3af, class 3)
• Power consumption: 12 VDC, 0.5 A, max. 5 W, PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
• Protection class IP67
• Material: plastic
• Range: IR up to 20 m
• Size 60,9 x 57,9 x 138,8 mm

Specifications
