Lauko IP kamera BCS BCS-V-EIP16FSR3L3(2)

Trumpai apie prekę

Prekė: Lauko IP kamera BCS BCS-V-EIP16FSR3L3(2). Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-V-EIP16FSR3L3(2)

• 1/2.4" 6Mpx PS CMOS sensor
• SkyLight technology
• NightColor technology
• Support for two encoding streams
• 3200x1800 resolution
• H.265 / H.265+ / H.264 / H.264+ / MJPEG compression
• Mechanical ICR Infrared Filter
• Functions AGC, AWB, BLC, HLC, WDR(120dB), 3D DNR
• Motion detection, privacy mask
• 2.8mm F1.6 Lens
• Built-in microphone
• IR illuminator range up to 30m
• White light illuminator (LED) range up to 30m
• IP67 Outdoor Enclosure
• Operating conditions -30°C ~ +60°C
• DC 12V, PoE(802.3af) power supply
• Adapters suitable for camera: BCS-V-ADD, BCS-ADU-B, BCS-V-AWDE

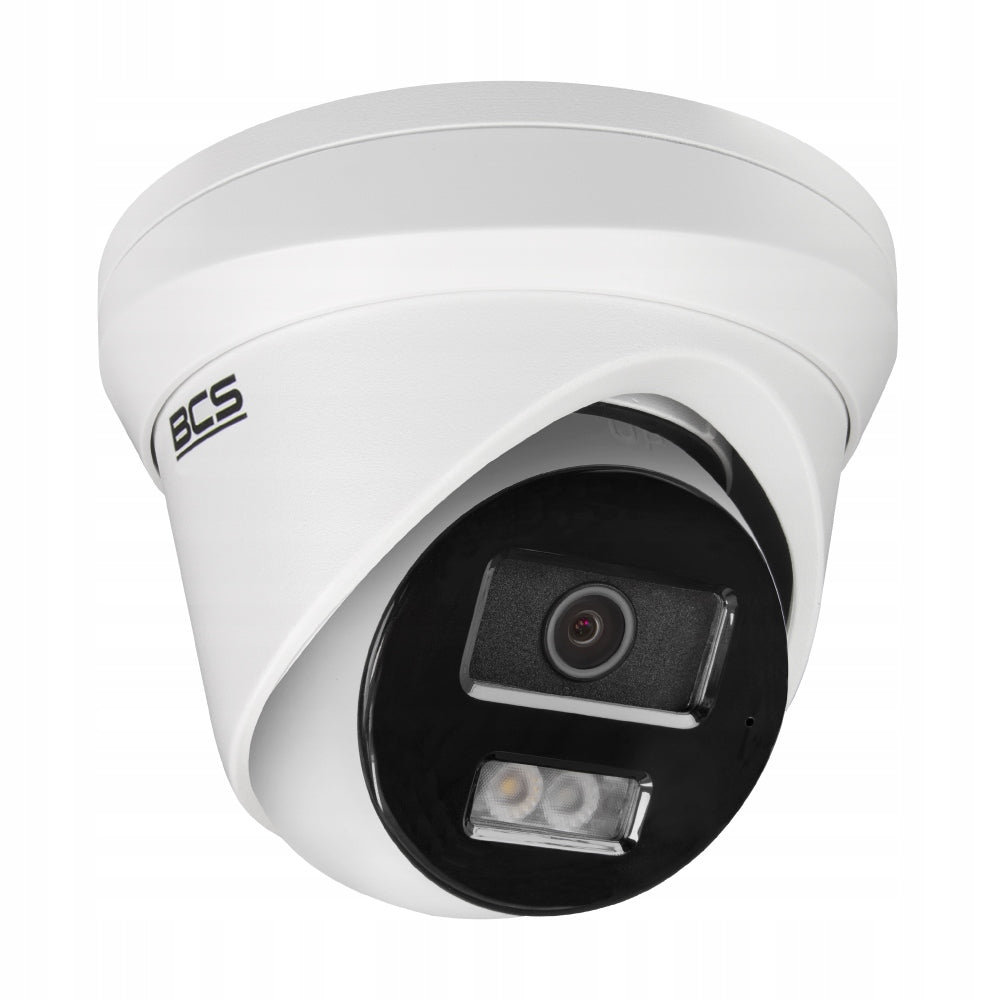

Dome network camera BCS VIEW 6Mpx with 2.8mm lens. Equipped with IR LED + White Light illuminator with a range of 30m that allows the camera to present good quality image in complete darkness. In addition, the 3D DNR function also improves image quality even in insufficient lighting, minimizing the resulting noise, which allows for better identification of recorded objects. The camera supports smart features such as motion detection and privacy masks. External housing with IP67 protection class. The camera is powered by DC 12V and via PoE.

Function WDR 120dB| 3D DNR|HLC|BLC | AGC | AWB

WDR 120dB (Digital Wide Dynamic Range) - wide dynamic range thanks to which, the camera allows for better reproduction of brightness and contrast in various lighting conditions, providing a clear and accurate image. WDR is particularly useful in situations where there are significant differences between light and dark areas in an image.

3D DNR (Digital Noise Reduction) - digital noise reduction in the camera, which means that the camera digitally reduces the noise in the photo for a cleaner and more detailed image. 2D/3D means that these are two different noise reduction algorithms, and 3D mode is more effective because it also takes into account movement in the scene.

BLC (Backlight Compensation) - compensation of background lighting in the camera, which means that the camera adjusts the exposure to compensate for the background problem being too bright relative to the object that is captured in the photo.

AGC (Automatic Gain Control) is the automatic adjustment of signal gain when necessary. If the signal level is too low, AGC increases its gain, and if it is too high, it in turn reduces the gain to avoid overdrive.

AWB (Automatic White Balance) is responsible for automatically adjusting the white balance in the image to ensure natural and accurate color reproduction. It works by analyzing the color of light in the frame and adjusting its color temperature so that all colors in the image look natural. Thanks to this, regardless of whether the camera is set in daylight, artificial light or other light source, the image will always have a natural and faithful color reproduction.

The model is equipped with NightColor technology, which allows you to record color video even in very low light conditions. The camera has a high-sensitivity image sensor and a lens with a bright aperture of F1.0, thanks to which it allows you to get a clear image with a minimum light intensity of 0.001 lux.

SkyLight technology provides excellent visibility both day and night. With advanced image processing and optimization in harsh lighting conditions, SkyLight-enabled cameras guarantee detailed and clear recordings. Whether external or internal facilities are monitored, SkyLight delivers reliable quality, supporting safety and security at the highest level.

• Image sensor: 1/2.4" PS CMOS
• Max. resolution: 3200 x 1800 (6 Mpx)
• Speed: max. 20 fps @ 6 Mpx
• Lens: Fixed focal length
• Focal length: 2.8 mm
• Viewing angle: 105° horizontal, 55° vertical
• Hybrid illuminator: YES
• Illuminator range: Up to 30 m
• Sensitivity: 0.005 Lux (F1.6, AGC) 0 Lux (on illuminator)
• Day/night: YES
• Mechanical Infrared Filter (ICR): YES
• Image compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• WDR 120 dB: YES
• SMD: NOT
• IVS: NOT
• Features: Day/night, DNR, AWB, AGC, AES, BLC, HLC, ROI, Privacy Zones
• Ethernet interface: 10 / 100 Mb/s
• Audio support: YES
• Built-in microphone: YES
• SD / microSD card: NOT
• Housing Color: Bright
• Housing: IP67
• External housing: YES
• Operating temperature: -30...+60 °C
• Power supply: 12 V DC, PoE 802.3af
• Power consumption: max. 6.5 W
• Dimensions: ø 110 x 89.2 mm
• Weight: 0.34 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.4 kg
Parametry	EAN (GTIN)	5904890712591
Parametry	Manufacturer code	12155
Parametry	Brand	BCS
Parametry	Model	BCS-V-EIP16FSR3L3(2)
Parametry	Kind	external
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
