Lauko bevielis prieigos taškas UBIQUITI LITEBEAM LBE-5AC-Gen2

Trumpai apie prekę

Prekė: Lauko bevielis prieigos taškas UBIQUITI LITEBEAM LBE-5AC-Gen2. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ubiquiti
• Modelis: LiteBeam 5
• Plotis: 310 mm
• Aukštis: 170 mm

UBIQUITI LITEBEAM LBE-5AC-Gen2

UBIQUITI

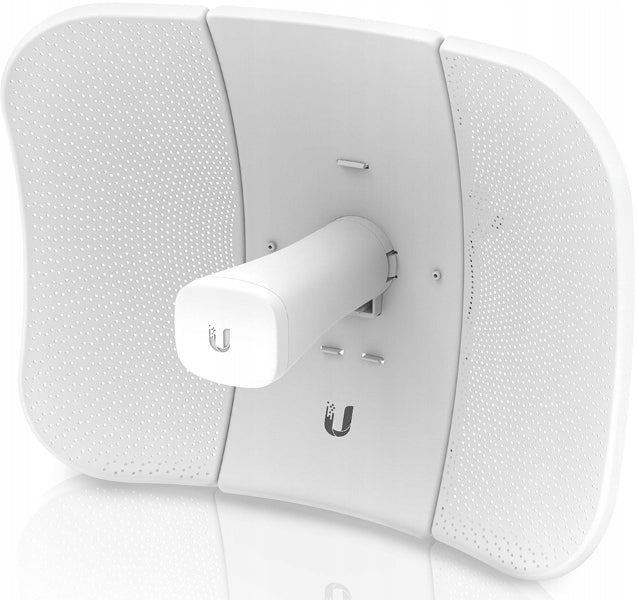

UBIQUITI LITEBEAM LBE-5AC-Gen2

Model: LBE-5AC-GEN2 Key Features

• Operation in the 5 GHz band
• Antenna with a gain of 23 dBi
• Narrow main beam
• AC standard
• Double polarity
• Transmission power up to 25 dBm
• 2,4 GHz radio for configuration

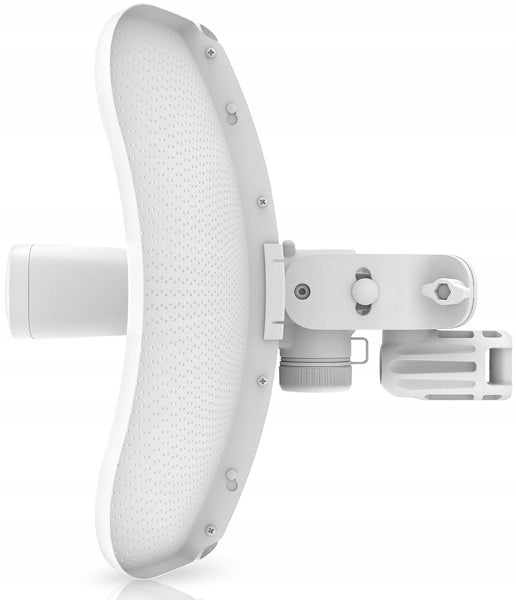

• Handle for adjusting the angle of inclination in the vertical and horizontal plane

Purpose

Ubiquiti LBE-5AC-GEN2 is a complete radio system designed for the 5GHz band operating in the 802.11ac standard in 2x2 MIMO technology. Expanded with a radio in the 2,4GHz band designed for configuration. The antenna is characterized by a gain of 23dBi. The device is equipped with an integrated radio module with up to 25dBm power and one Gigabit Ethernet 10/100/1000Mbps port. LBE-5AC-GEN2 is characterized by high efficiency and extraordinary range up to 30km. The device is powered by passive PoE (power supply included).

Technical specification

• LITEBEAM 5AC GEN2:
• Working frequency: 5150 - 5875 MHz (2412 - 2462 MHz - for configuration)
• Energy Gain: 23 dBi
• Processor: MIPS 74 Kc
• RAM: 64 MB DDR2
• Network interface: 1 gigabit 10/100/1000 Mbps Ethernet port
• Input voltage: 24 V (± 10%)
• Power supply: Passive PoE (pins 4, 5+; 7, 8-)
• Maximum power consumption: 7 W
• Power supply included: 24 V PoE power supply, 0.3 A Gigabit Ethernet port
• Assembly: On the pole
• Wind resistance: Max. 200 km/h
• Wind resistance: 275 N at 200 km/h
• ESD/EMP protection: 24 kV
• Dimensions: 358x271,95x272,5 mm
• Weight: Without handle: 800 g With handle: 980 g
• Admissible operating temperature: -40 to 70°C
• Admissible air humidity: 5%-95% non-condensing
• Certificates: CE, FCC, IC

• PROPERTIES OF WIRELESS TRANSMISSION:
• Broadcasting power:
• : Modulation,Tx
• airMAX ac: Array,25 dBm
• 2x QPSK (1/2): 25 dBm
• 2x QPSK (3/4): 25 dBm
• 4x 16QAM (1/2): 25 dBm
• 4x 16QAM (3/4): 25 dBm
• 6x 64QAM (2/3): 25 dBm
• 6x 64QAM (3/4): 24 dBm
• 6x 64QAM (5/6): 23 dBm
• 8x 256QAM (3/4): 21 dBm
• 8x 256QAM (5/6): 21 dBm
• Reception sensitivity:
• : Modulation,Rx
• airMAX ac: Array,-96 dBm
• 2x QPSK (1/2): -95 dBm
• 2x QPSK (3/4): -92 dBm
• 4x 16QAM (1/2): -90 dBm
• 4x 16QAM (3/4): -86 dBm
• 6x 64QAM (2/3): -83 dBm
• 6x 64QAM (3/4): -77 dBm
• 6x 64QAM (5/6): -74 dBm
• 8x 256QAM (3/4): -69 dBm
• 8x 256QAM (5/6): -65 dBm
