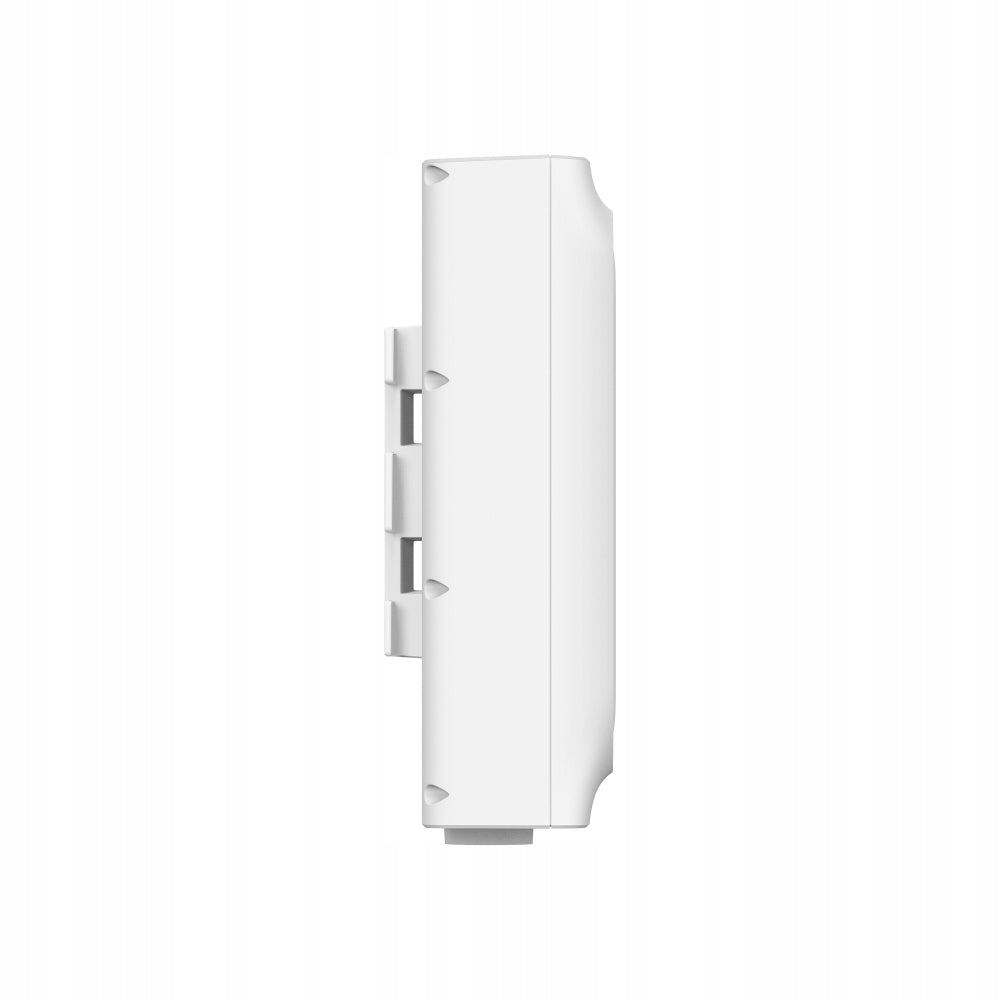

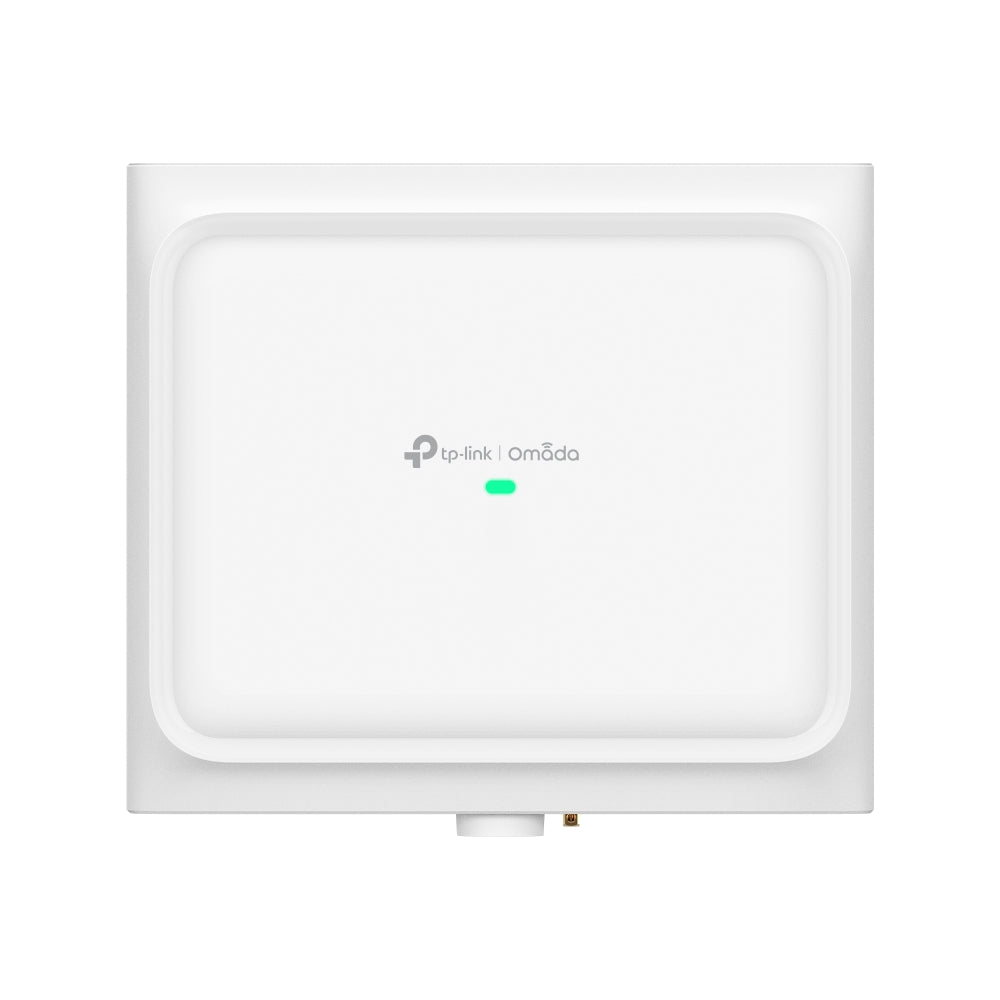

Lauko belaidis tinklo prieigos taškas TP-Link EAP772 Omada WiFi 7

Trumpai apie prekę

Prekė: Lauko belaidis tinklo prieigos taškas TP-Link EAP772 Omada WiFi 7. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP772-Outdoor

EAP772-Outdoor

• External Wi-Fi 7: Speed up to 9,3 Gb/s†
• 6 GHz unlocked by AFC: AFC allows access to the 6 GHz band for outdoor applications△
• Around range in 3 bands: Up to 300m2 range*
• Professional design of the device: IP68 rating, 1 RJ45 PoE+ 2.5G PoE+ port and 2,4 GHz dual polarization antennas
• Simple and quick installation: Wall/pole mounting and one-click configuration in Omada SDN
• Advanced features: Centralized management, Mesh and Smooth roaming

HARDWARE FEATURES

Ports

1 RJ45 2.5G Ethernet port (Support 802.3at PoE input)

Buttons

Reset

Power supply

• 802.3at PoE

Power consumption

21,5W (via PoE)

Dimensions (S x G x W)

230 × 207,5 × 69,7 mm

(9,1× 8,2 × 2,8 inches)

Antennas

• 2,4 GHz: 2× 4 dBi

• 5 GHz: 2× 6 dBi

• 6 GHz: 2× 6 dBi

GNSS

L1 receiver (1575,42 MHz) supporting GPS, Galileo, GLONASS and BeiDou signal

Receiver Sensitivity: -164dBm (Tracking)

GPS Antennas: Integrated, omnidirectional 3dBi antennas

Bluetooth

BLE 5.2

Weatherproof housing

IP68

Installation

Can be mounted on a pole/wall (mounting kit included)

WIRELESS TRANSMISSION PROPERTIES

Coverage coverage

Up to 300m2

Number of simultaneous clients

380+**

Wireless standards

IEEE 802.11be/ax/ac/n/g/b/a

Frequency of work

2,4 GHz, 5 GHz and 6 GHz

Transmission speed

688 Mbps (2,4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)†

Wireless transmission functions

• 4K-QAM

• OFDMA

• Multi SSID: 24 (8 for each band)

• On. /off wireless network transmitter

• Automatic channel selection

• Transmission power control (based on dBm)

• QoS (WMM)

• MU-MIMO

• MLO

• 320MHz

• Omada Mesh§

• Smooth roaming (802.11k/v/r)§

• Band control

• Bandwidth load balancing

• Airtime Fairness

• Beamforming

• Speed limitation

• Reboot schedule

• Wireless network scheduler

• Wireless network statistics based on SSID/AP/Customer

• Static IP address/Dynamic lP address

Wireless transmission security

• Authentication via the welcome page§

• Access control

• Filter wireless MAC addresses

• Wireless client isolation

• SSID to VLAN mapping

• Detection of unauthorized APs

• Support 802.1X

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE

Transmission power

• CE:

Internal mode: < 20 dBm (2,4 GHz, EIRP), < 23 dBm (5 GHz, band 1 and band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP)

External mode: < 20 dBm (2,4 GHz, EIRP) < 28 dBm (5 GHz, band 3, EIRP)

MANAGEMENT

Omada app

Yes

Centralized management

• Cloud-based Omada Controller

• Omada hardware controller

• Omada software controller

Access to the cloud

Yes. Requires the use of the Omada Controller.

Email notifications

Yes

Access control by MAC addresses

Yes

SNMP

v1, v2c

System Journal

Yes

SSH

Yes

Management by browser

Yes

Management of L3

Yes

Multi-site management

Yes

VLAN management

Yes

Maintenance-free ZTP configuration

Yes. Requires the use of a cloud-based Omada Controller.

OTHER

Certificates

CE, FCC, RoHS

Contents of the pack

EAP772-Outdoor

• Sealing kit

• Mounting kit

• Installation instructions

System requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Working environment

Permissible operating temperature: -30 – 70 ℃ (-22 – 158 ℉)

Permissible storage temperature: -40 – 70 ℃ (-40 – 158 ℉)

Permissible air humidity: 10 to 90%, non-condensing

Permissible storage humidity: 5 to 90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	1210002602280
Parametry	Manufacturer code	EAP772-Outdoor
Parametry	Model	EAP772-Outdoor
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11be (Wi-Fi 7)
Parametry	Wireless operation standard	802.11be (Wi-Fi 7),802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
