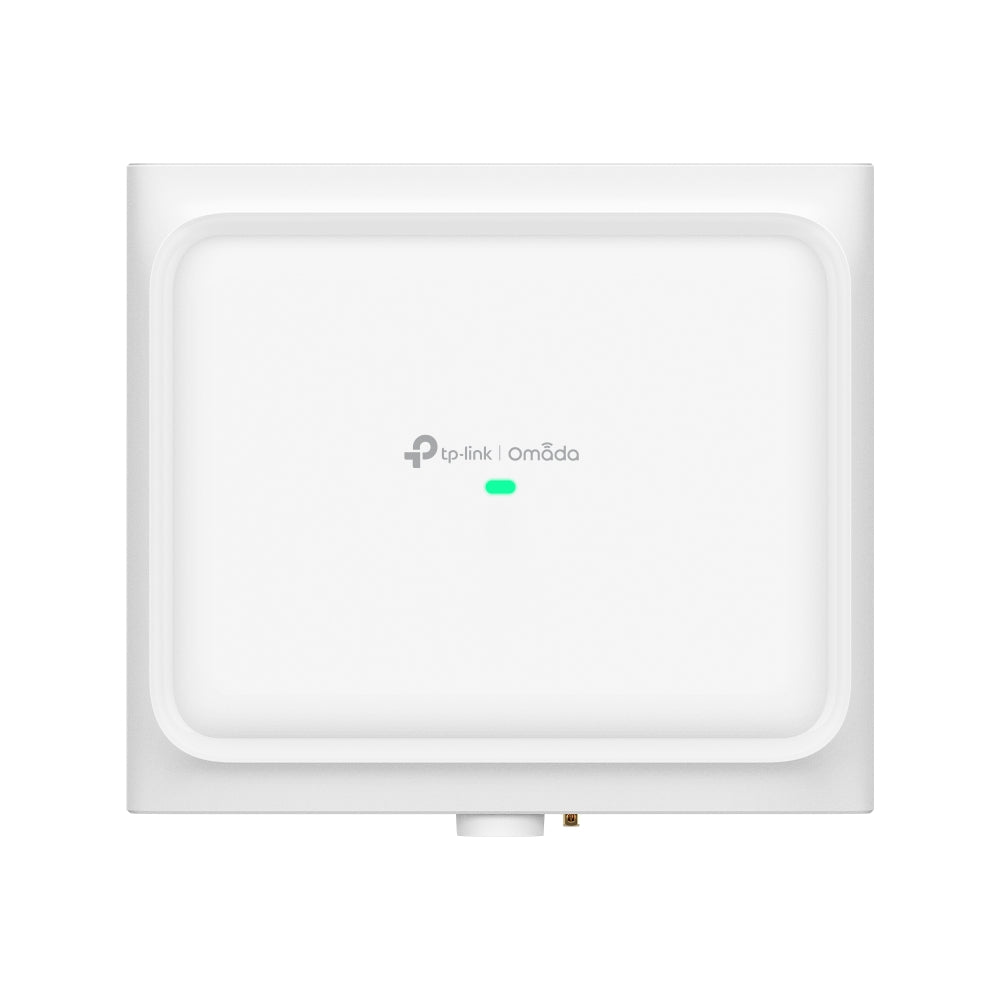

Lauko belaidis prieigos taškas TP-Link EAP650 D120 Omada

Trumpai apie prekę

Prekė: Lauko belaidis prieigos taškas TP-Link EAP650 D120 Omada. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP650 D120
• Plotis: 230 mm

EAP650 D120-Outdoor

• Excellent Wi-Fi speed 6: Up to 2402 Mbps in the 5 GHz band and up to 574 Mbps in the 2,4 GHz band. †
• Large, directional range: Built-in high gain directional antennas for precise and long signal range*
• Ideal for warehouses and outdoor applications: IP68 rated and can be operated at temperatures from -30°C to +70°C
• Smooth roaming 802.11k/v/r: Provides uninterrupted connections for AGV and handheld scanners§
• Flexible deployment: Supports PoE 802.3at and Omada Mesh technology
• Centralized management in the cloud: Control everything from a single interface using the Omada app or the Web interface

HARDWARE FEATURES

Ports

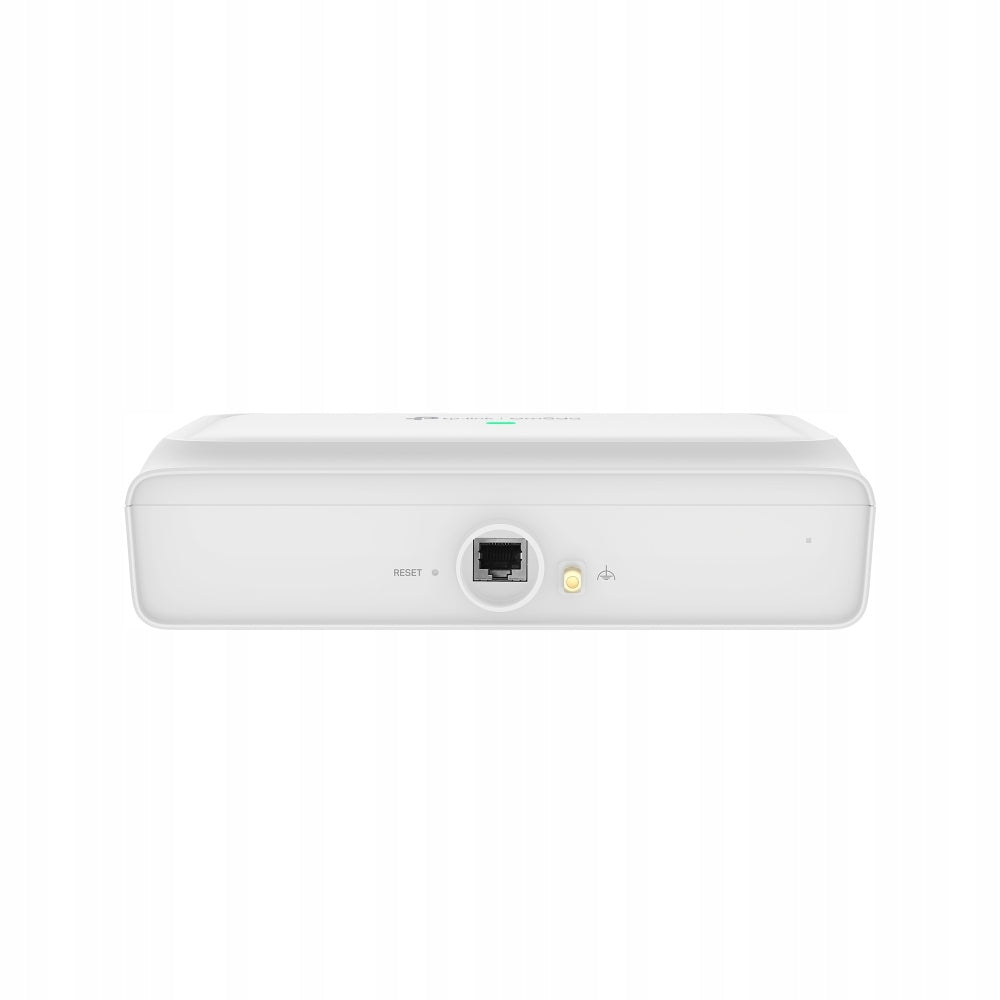

1 gigabit Ethernet port (with support for 802.3at PoE or 48V Passive PoE)

Buttons

Reset

Power supply

• PoE 802.3at

• Passive PoE 48V

Power Consumption

• 12,5W (802.3at PoE or Passive PoE)

Dimensions (S x G x W)

207,5 × 58 × 230 mm

(8,2 × 2,3 × 9,1 inches)

Antennas

Built-in Directional Antennas:

• 2,4 GHz: 2× 8 dBi

• 5 GHz: 2× 10 dBi

Beam width: 120° horizontally, 30° vertically

Bluetooth

Yes

Weatherproof housing

IP68

Assembly

Optional accessory holder APM-100:

Vertical adjustment ±45° and horizontal adjustment ±45°

Note: Optional accessory holder not included and must be purchased separately

PROPERTIES OF WIRELESS TRANSMISSION

Coverage coverage

• 2,4 GHz: 200+ m*

• 5 GHz: 500+ m*

Number of simultaneous clients

250+**

Wireless standards

IEEE 802.11 a/b/g/n/ac/ax

Frequency of work

2,4 GHz, 5 GHz

Transmission speed

574 Mbps (2,4 GHz) + 2402 Mbps (5 GHz)†

Wireless transmission functions

• 1024-QAM

• DL/UL OFDMA

• Multi-SSID (up to 16 SSID, 8 for each band)

• On. /off. wireless transmission

• On. /off. SSID broadcasting

• Guest Network

• Automatic channel selection

• Transmission power control (based on dBm)

• QoS (WMM)

• 2×2 (2,4 GHz and 5 GHz) DL/UL MU-MIMO

• Omada Mesh§

• Smooth Roaming(802.11k/v/r)§

• Band control

• Bandwidth load balancing

• Airtime Fairness

• Beamforming

• RADIUS Accounting

• MAC authentication

• Restart schedule

• Wireless network scheduler

• Wireless network statistics

• Static IP/Dynamic IP

Wireless transmission security

• Authentication via the welcome page§

• Access control

• Filter wireless MAC addresses

• Wireless client isolation

• SSID to VLAN mapping

• Detection of unauthorized APs

• Support 802.1X

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption

Transmission power

• CE:

< 20 dBm (2.4GHz, EIRP)

< 23 dBm (5 GHz, band 1 and band 2, EIRP)

< 30 dBm (5 GHz, band 3, EIRP)

MANAGEMENT

Omada app

Yes

Copy and restore settings

Yes

NTP

Yes

Centralized management

• Omada hardware controller

• Omada software controller

• Cloud-based Omada Controller

• Omada app

Access to the cloud

Yes. Requires the use of the Omada Controller.

Email notifications

Yes

Diode switch

Yes

MAC address access control

Yes

SNMP

v1, v2c, v3

System Journal

Yes

SSH

Yes

Browser management

Yes

Managing multiple locations

Yes

Maintenance-free ZTP configuration

Yes. Requires the use of a cloud-based Omada Controller.

OTHER

Certificates

CE, FCC, RoHS

Content of packaging

• EAP650 D120-Outdoor

• Mounting kit

• Installation instructions

System requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Working environment

• Permissible operating temperature: -30℃–70℃ (-22℉–158℉)

• Permissible storage temperature: -40℃–70℃ (-40℉–158℉)

• Permissible air humidity: 10%–90%, non-condensing

• Permissible storage humidity: 5%–90%, non-condensing

Specifications
