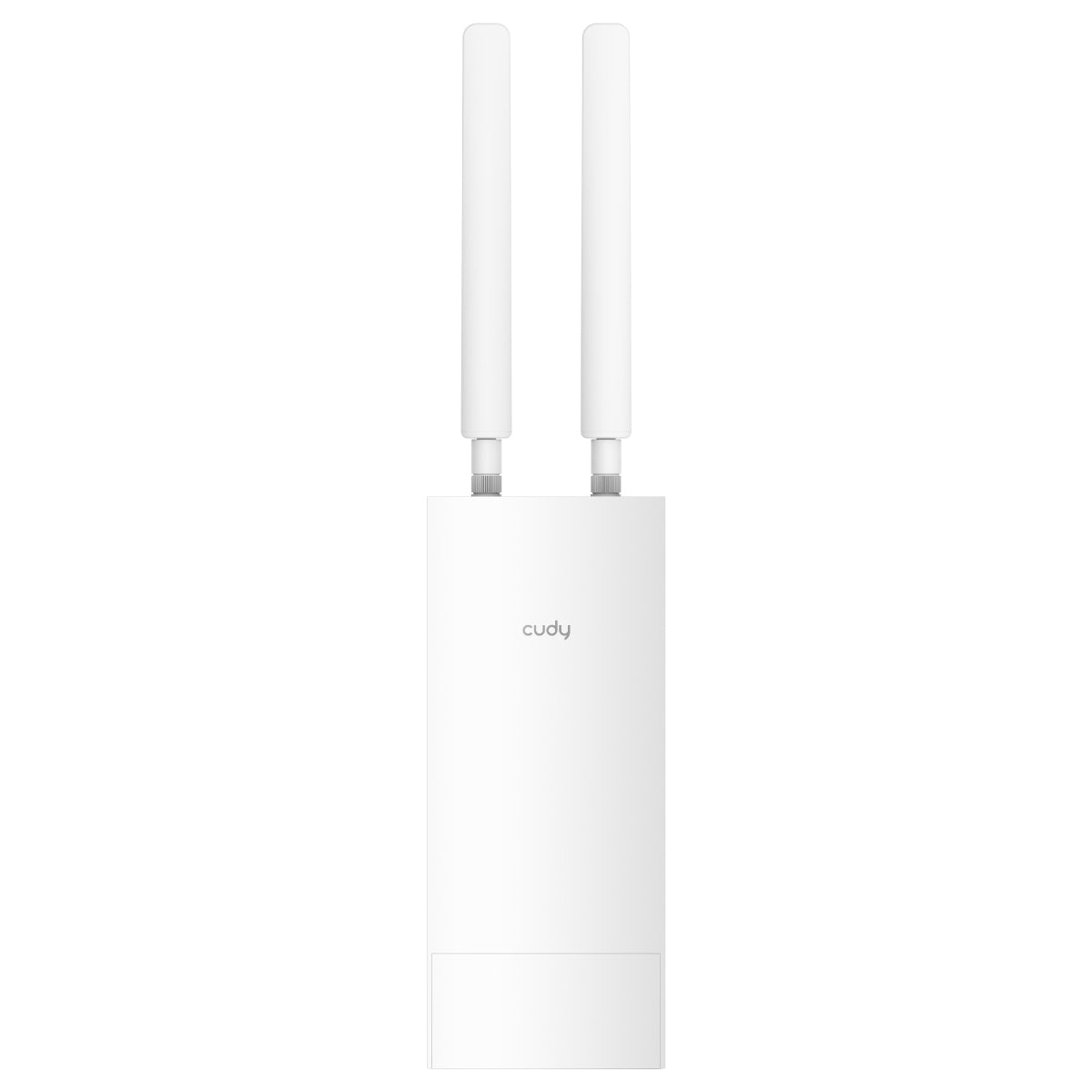

Lauko 4G AC1200 belaidis maršrutizatorius CUDY LT500

Trumpai apie prekę

Prekė: Lauko 4G AC1200 belaidis maršrutizatorius CUDY LT500. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Cudy
• Modelis: LT500_OD
• Plotis: 174 mm
• Aukštis: 225 mm

Cudy LT500 Outdoor is a rugged, external LTE router (Cat 4) with Wi‑Fi AC1200 features, weather resistant thanks to the IP65 tightness class. The device supports Cudy Mesh technology and secure VPN connections, which makes it an excellent choice for outdoor installations: on plots, in monitoring booths, on farms or time locations.

✅ Key features

• Modem 4G LTE Cat 4: download speed up to 150 Mb/s, upload up to 50 Mb/s (FDD/TDD)
• Wi‑Fi AC1200 dual-band: up to 867 Mbps in the 5 GHz band and 300 Mbps in the 2,4 GHz band, MU‑MIMO technology and Beamforming
• Externally resistant design: IP65, operating temperature from –20 °C to +60 °C (up to –40 °C with industrial grade SIM card), surge protection up to 4 kV and ESD up to 8 kV
• Power supply via PoE: passive 24 V PoE‑in (0,5 A) – power cable included
• Support for Cudy Mesh (can be connected to other APs), VPN Server and Client, DDNS, DNS Over TLS and Cudy mobile application and cloud control
• Supports up to 50 devices simultaneously

Technical specification

• Parameter: Specification
• CPU / RAM / Flash: 580 MHz single-core MIPS24KEC; 128 MB DDR2 RAM; 16 MB Flash
• Cellular network (4G LTE Cat 4): Max DL 150 Mbps, UL 50 Mbps; DL MIMO 2×2; EU/US/LA versions supporting different LTE/WCDMA bands
• Wi‑Fi: 802.11a/b/g/n/ac; 2.4 GHz: 300 Mb/s, 5 GHz: 867 Mb/s; 2T2R, Beamforming; range up to 170 m outdoors
• Ports: 1 × RJ45 10/100 Mbps (WAN/LAN/PoE-In)
• Power Supply: Passive PoE 24 V/0.5 A; AC 100‑240 VAC → 24 V/0.5 A DC power supply
• Working temperature: –20 °C to +60 °C (up to –40 °C with industrial SIM card)
• Moisture: 0 to 100 % non-condensing
• Electrical resistance: Surge 4 kV, ESD 8 kV (IEC/EN 61000‑4‑5, 4 kV RJ45)
• Dimensions / weight: 240 × 100 × 53.7 mm; weight ~420 g

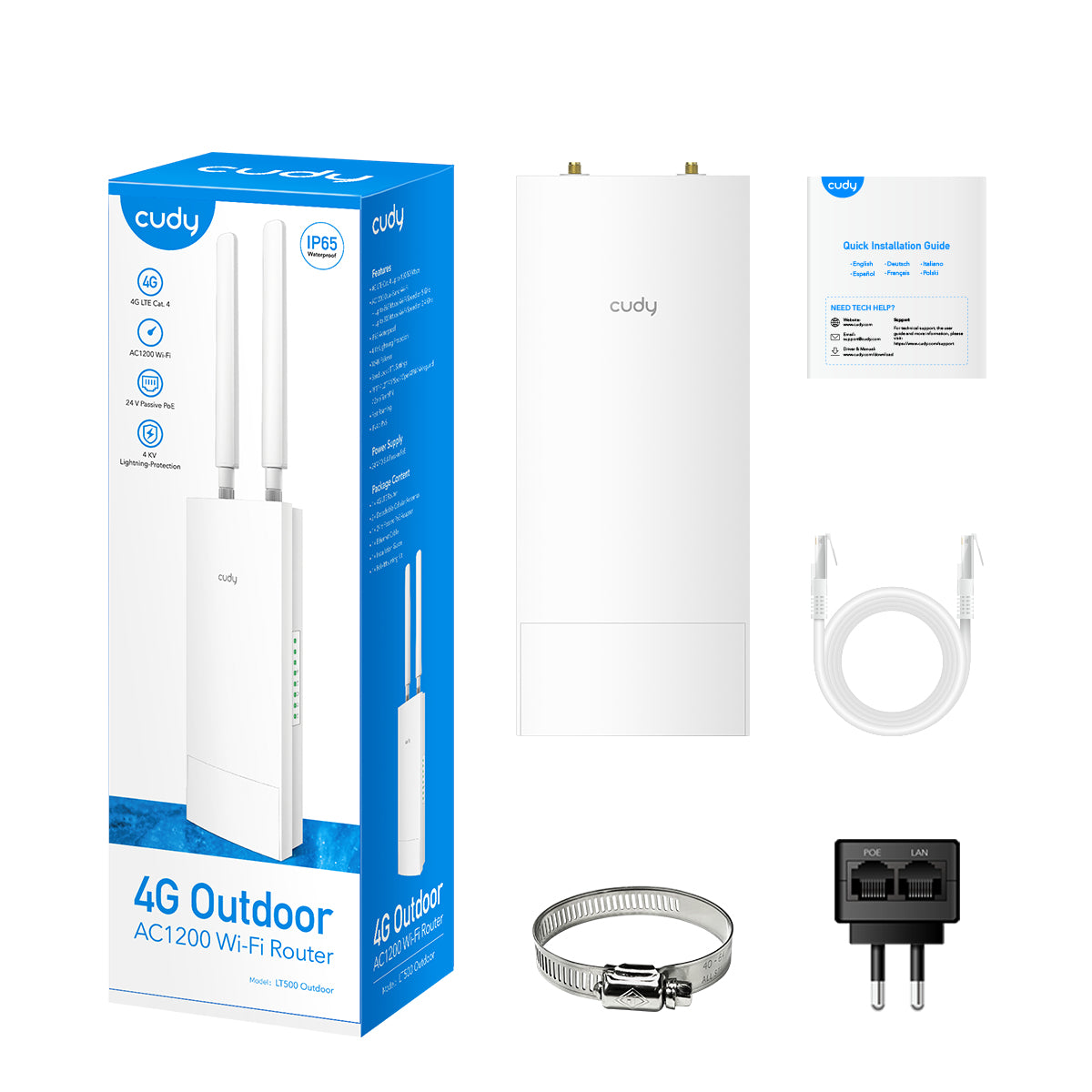

Contents of the pack

• 1 × Cudy LT500 Outdoor 1.0 (Outdoor Router, IP65)
• 2 × Detachable 4G LTE (SMA) antennas
• Passive PoE Adapter 24 V / 0.5 A
• RJ45 Ethernet Cable
• Mounting kit (pole/wall brackets)
• Quick start instructions

Typical applications

• External locations without Wi‑Fi power: gardens, plots, construction sites, parking lots
• Internet outages: LTE backup + WAN port as redundancy
• Installations with VPN (OpenVPN, WireGuard, IPSec, Zerotier) and DDNS
• Expansion of mesh networks in places with difficult topography,
