Kupolinė kamera Hilook THC-T127-LMC, 2MP, 2.8mm, 4in1, išmanus apšvietimas, 20 m

Trumpai apie prekę

Prekė: Kupolinė kamera Hilook THC-T127-LMC, 2MP, 2.8mm, 4in1, išmanus apšvietimas, 20 m. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: THC-T127-LMC

Clear Full HD picture and effective protection around the clock

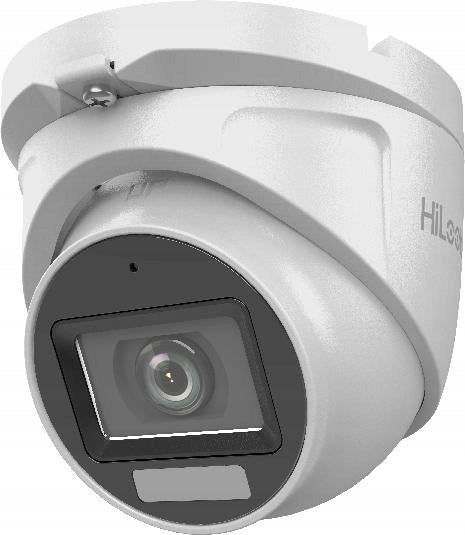

HiLook THC-T127-LMC (2.8 mm) is a modern 4in1 dome camera designed for analogue monitoring systems. It captures images in Full HD 2 MP (1920 × 1080) resolution, offering high-quality recordings both day and night. Thanks to Smart Hybrid Light technology, the device automatically selects the way to illuminate the scene, ensuring a clear image and effective identification of people and vehicles. The compact design and resistant housing of the IP66 make the camera perfect for both indoor and outdoor use.

The most important features of the product

• Full HD 2 MP resolution (1920 × 1080)
• 2.8 mm lens for a wide viewing angle
• Smart Hybrid Light technology
• Lighting range up to 20 m (IR and white light)
• Automatic switching between IR and white light
• Color image when a person or vehicle is detected
• Built-in microphone (Audio over Coax)
• DNR and DWDR technologies to improve image quality
• Support for TVI / AHD / CVI / CVBS standards (4in1)
• Resistance to dust and rain – protection class IP66

Full HD 2 MP Image

The camera is equipped with a high-quality image sensor enabling recording of material in resolution 1920 × 1080. This ensures that the recordings are sharp and detailed, making it easy to recognize people and monitor the protected object.

​

Smart Hybrid Light – Smart Lighting

Smart Hybrid Light technology combines the advantages of infrared and white light. The camera can operate in IR mode, white light mode or smart mode, which automatically activates LED lighting when a person or vehicle is detected. This allows you to get a color image only when you need it, reducing unnecessary illumination of the headlights.

Remote access from anywhere

Thanks to the cooperation with HiLookVision and Hik-Connect applications, the user can check the live image, play recordings and manage monitoring at any time using a smartphone, tablet or computer.

​

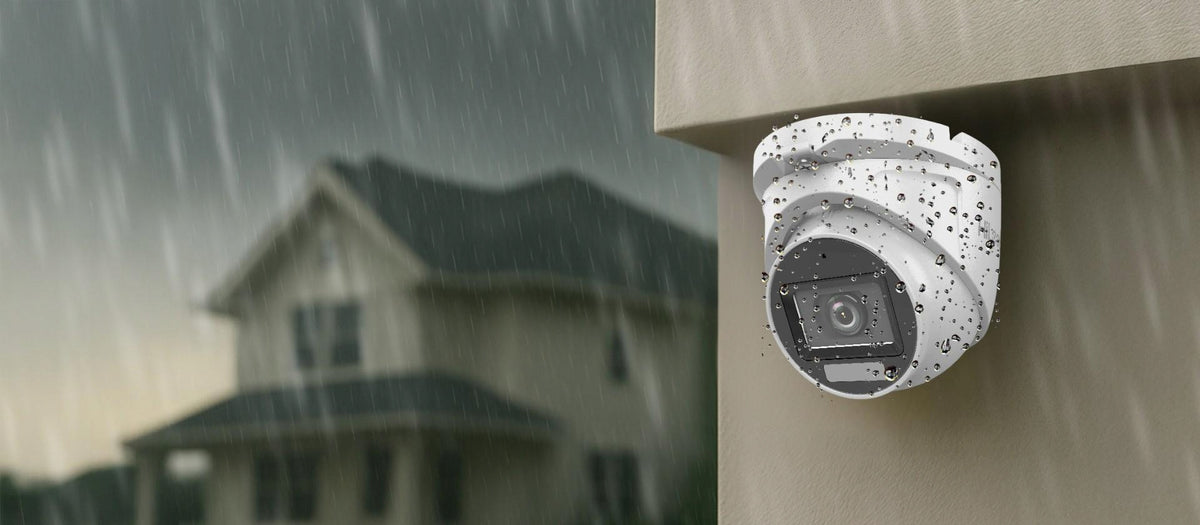

IP66 Resistant Design

The durable, IP66 certified metal housing effectively protects the device from dust, rain and other adverse weather conditions, ensuring reliable operation throughout the year.

Technical specification – HiLook THC-T127-LMC (2.8 mm)

Camera

• Image converter: 2 MP CMOS
• Maximum resolution: 1920 × 1080 (Full HD)
• Minimum illumination: 0.01 lx @ F2.0 (AGC ON), 0 lx with IR illuminator
• Snapshot: PAL: 1/25 s – 1/50 000 s, NTSC: 1/30 s – 1/50 000 s
• Day/night filter: ICR
• Signal system: PAL / NTSC
• Camera setting adjustment:Rotation (Mr.): 0°–360°
• Tilt: 0° to 75°
• Rotation: 0° to 360°

Lens

• Type: Fixed focal length
• Focal length: 2.8 mm
• Attachment: M12
• Angle of view (2.8 mm):Levels: 100°
• Vertical: 55°
• Diagonal: 116°

Illuminator

• Technology: Smart Hybrid Light
• Lighting type: IR + white light
• Infrared range: up to 20 m
• White light range: to 20 m


• Image adjustment: Brightness, sharpness, Smart IR
• Day/night mode: Auto / Colour / Black and white
• Digital WDR (DWDR)
• BLC
• HLC
• Global
• Automatic or manual white balance
• AGC (Automatic gain adjustment)

Video

• Supported standards: TVI / AHD / CVI / CVBS (4in1)
• Number of frames:TVI: 1080p @ 25/30 fps
• AHD: 1080p @ 25/30 fps
• CVI: 1080p @ 25/30 fps
• CVBS: PAL / NTSC

Audio

• Sound transmission via coaxial cable (Audio over Coax)

Power supply

• 12 V DC ±25%
• Maximum power consumption: 3.2 W

Housing

• Material: Metal
• Protection class: IP66
• Dimensions: Ø82.65 × 69.16 mm
• Weight: approx. 253 g

Working conditions

• Working temperature: from -40°C to +60°C
• Moisture: to 90% (non-condensing)
