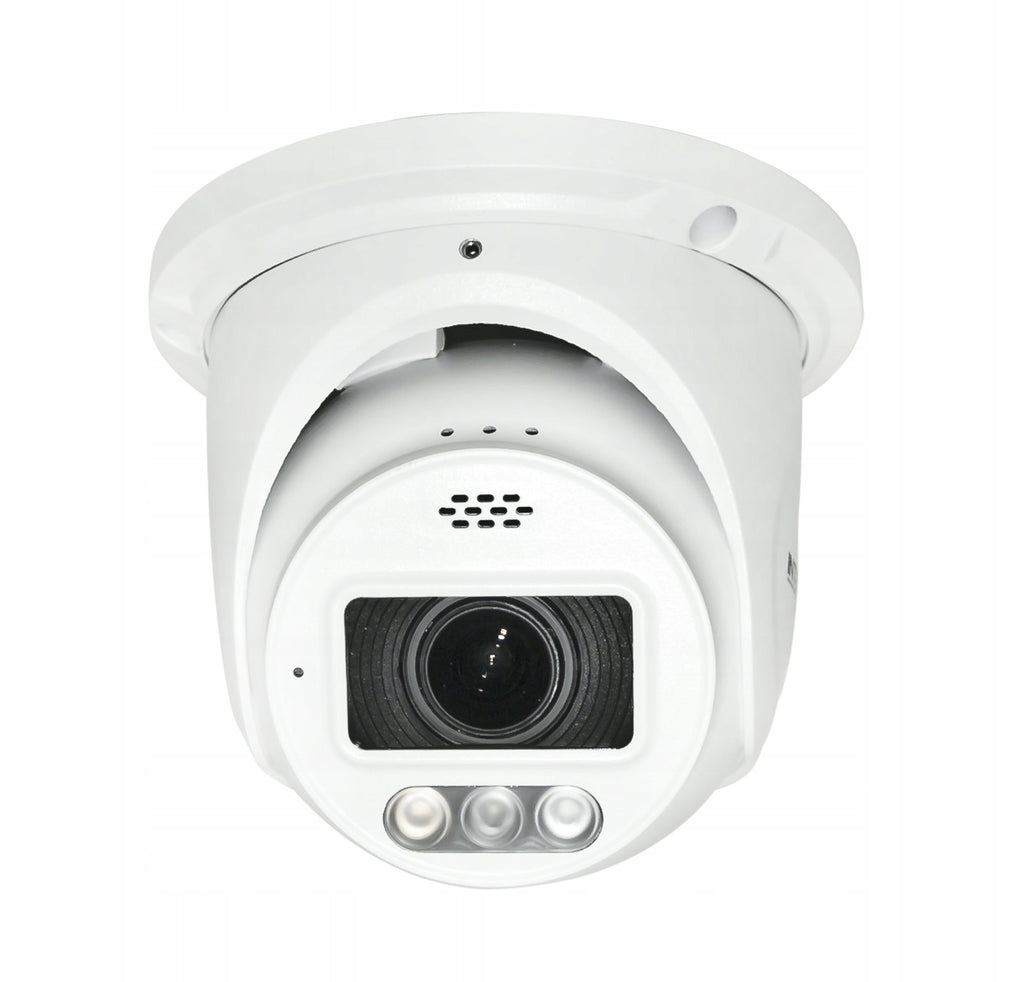

Kupolinė IP kamera Internec i6.6-C44440-ILUZMFSG, 4MP

Trumpai apie prekę

Prekė: Kupolinė IP kamera Internec i6.6-C44440-ILUZMFSG, 4MP. Kategorija: IP kameros.

• Gamintojas: no brand
• Modelis: I6.6-C44440-ILUZMFSG

4MP camera in a dome type housing with IR illuminator, LED and warning light (red-blue) for indoor and outdoor applications.

• High-performance H.265/H264 video compression with adjustable quality and data stream
• sensitive transducer for working in difficult lighting conditions
• WDR 120dB , Image Improvement Features: 3D DNR, BLC, HLC
• Infrared illuminator up to 40m and white LED light up to 40m
• built-in red-blue warning light
• Operating modes: 24H color with white light at night or day/night with IR illuminator
• 'smart white lighting' function at night: turn on the white light and switch the image to color after intrusion detection
• SMART ALARMS: deletion of an object, left object and intrusion, crossing a line with object type classification
• Micro SD/SDHC/SDXC card slot (up to 256GB)
• Built-in microphone and audio input
• Built-in speaker and audio output, voice messages
• warning light (red-blue)
• PoE 802.3at, DC 12V power supply

Technical data

• Model: i6.6-C44440-ILUZMFSG

Camera

• Purpose: Inside, outside
• Housing: Dome
• Converter: 1/3" CMOS
• Module adjustment: 3D

Lens

• Lens type: Variable focal length
• Lens automation: Motozoom, autofocus
• Focal length: 2,8 ÷ 12 mm
• Angle of view: 92° ÷ 31°
• Lens brightness: F1.4
• Minimum lighting: 0.004Lux (F1.4, AGC ON)
• Electronic snapshot: 1s ÷1/100 000s

Coding

• Supported video codecs: H.265+, H.265, H.264+, H.264, MJPEG
• Main stream: H.265+, H.265, H.264+, H.264
• Auxiliary stream: H.265+, H.265, H.264+, H.264, MJPEG
• Third stream: H.265+, H.265, H.264+, H.264, MJPEG
• Codec versions: H.265 (Main profile)
• Video bitstream: 64 Kbps ÷ 6 Mbps
• Additional encoder functions: ROI: 8 areas for the main stream


• Maximum image resolution: 2560 x 1440 px
• Image settings: Saturation, contrast, brightness, sharpness, white balance, shade
• Functions: Mirror, hallway mode, privacy masks, 180° rotation, custom text on image, watermark
• Image enhancement features: 3D DNR, WDR 120dB, BLC, HLC, ROI, AWB
• Day/night function: AUTO, BW, COLOR, IR cut-off filter, 3 levels of automatic switching, hourly switching schedule
• Main Stream Resolutions: 50Hz: 25fps (2560x1440, 2304x1296, 1920x1080, 1280x720), 60Hz: 30fps (2560x1440, 2304x1296, 1920x1080, 1280x720)
• Sub Stream Resolutions: 50 Hz: 25fps (1280x720, 704x576, 640x480, 352x288), 60 Hz: 30fps (1280x720, 704x480, 640x480, 352x240)
• Third Stream Resolutions: 50Hz: 25fps (640x480, 480x240, 352x288); 60Hz: 30fps (640x480, 480x240, 352x240)

Interface

• Menu language: PL, EN, DE, UA, ESP, others
• Audio functions: 1 input, 1 output, built-in microphone, built-in speaker
• Reset button: Yes
• Tool software: i6.6 Searcher
• PC client software: I6.6-VMS
• Mobile software: I6.6-MVS
• Browsers: Chrome 89+, Edge 89+, Firefox 87+, Safari 14+, Restrictions for preview without plugin: max. resolution in preview and playback: 1080p

Audio

• Audio compression: G.711
• Sound settings: Gain adjustment
• Audio messages: Number of built-in messages: 10, messages in Polish, possibility of uploading your own messages, number of own messages: 10

Record

• Support SD cards: Up to 256GB
• Write options: Recording with overwrite or to fill the media, continuous and alarm recording

Network

• Communication interface: RJ45 10M / 100M Ethernet
• Protocols: 802.1x, DDNS, DHCP, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, PPPoE, QoS, RTP, RTCP, RTMP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
• Compatible systems: Own protocol, ONVIF
• Security: Password protection, ability to define users, IP address filter, unauthorized login lock
• Max number of simultaneous connections: 6
• P2P: Yes

Analytics

• Image analysis: Intelligent white lighting, motion detection, motion detection with object classification, object left, line crossing, object removal, area intrusion, VCA with object classification
• Motion detection: Detection grid: 22x18 fields, filter: everything, vehicle, pedestrian, adjustable sensitivity 1-8
• Line crossing: 4 lines with definable sensitivity, directions A< > B, A->B, B->A, filter: motor vehicle, non-engine vehicle, pedestrian, definable sensitivity independently for different types of objects
• Intrusion into the area: 4 areas, filter: motor vehicle, non-engine vehicle, pedestrian, definable sensitivity independently for different types of objects
• Object deletion: 1 area, definable time
• Object left: 1 area, definable time
• Intelligent white lighting: 4 areas, default filter: pedestrian , optional filter: motor vehicle, non-engine vehicle, definable sensitivity independently for different types, definable lighting time
• Alarms: Motion detection, line crossing, intrusion, object deletion, object left, full disk, write error, IP address conflict, disconnection from IP network
• Emergency responses: Recording trigger, sending an email, voice message, photo dump on FTP/SD, warning light (red-blue)

Illuminator

• Built-in illuminator: IR, white light
• IR illuminator range (up to): 40 m
• LED illuminator range (up to): 40 m
• Illuminator functions: Off, smart IR, automatic power adjustment, intelligent white lighting
• Wavelength: 850 nm

General

• AC/DC power supply: 12 VDC
• PoE Standard: 802.3af
• Maximum power consumption: 11 W W
• Housing material: Metal
• Housing color: White
• Protection class: IP66
• Working temperature: -30°C ÷ 60°C
• Ambient humidity: Max. 95% (non-condensed)
• Dimensions: Ø 130.7 x 110.2 mm
• Elements included: Mounting pins, choke
