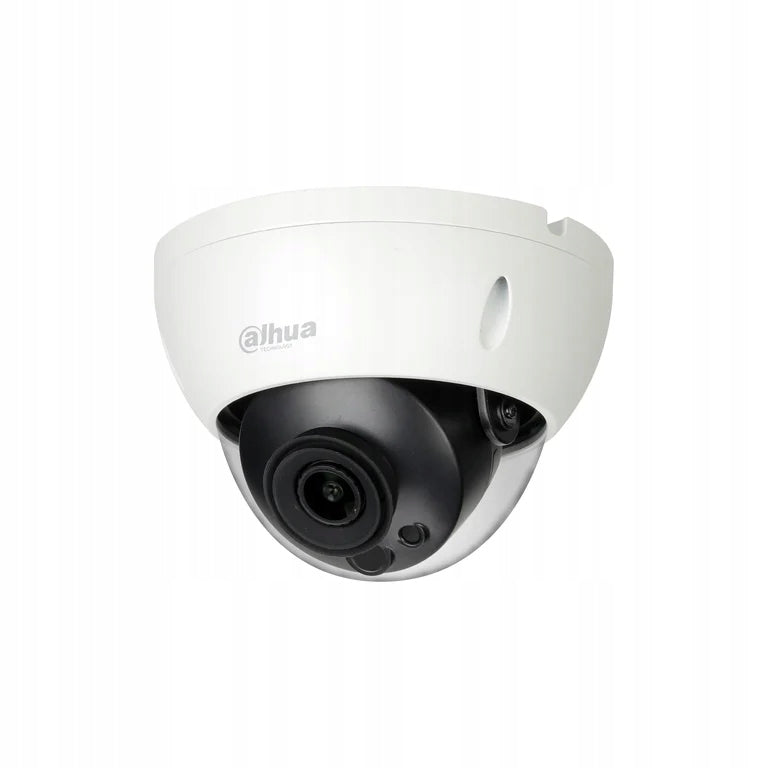

Kupolinė IP kamera Dahua IPC-HDBW5449R-ASE-NI-0360B

Trumpai apie prekę

Prekė: Kupolinė IP kamera Dahua IPC-HDBW5449R-ASE-NI-0360B. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: IPC-HDBW5449R-ASE-NI

Dahua Technology IPC -HDBW5449R-ASE-NI-0360B. Model: IP Security Camera, Purpose: Indoor/Outdoor, Connectivity Technology: Wired. Mounting type: Ceiling, Colour of product: White, Layout: Domed. Min. Lighting: 0,001 lx, Angle of rotation: 355°, Lens angle, horizontal: 93°. Image sensor type: CMOS, CCD sensor size: 25,4 / 1,8 mm (1 / 1.8"), Number of effective pixels (WxO): 2688 x 1520 px. Distance detection: 70 m, Observe distance: 28 m, Distance recognition: 14 m

✏️ Key Technical Specifications:

• Multimedia - Supported Audio Formats: AAC, G.711, G.723, G.726
• Image Sensor - Number of Sensors: 1
• Image Sensor - CCD Sensor Size: 25.4 / 1.8 mm (1 / 1.8")
• Image Sensor - Progressive Scan: Yes
• Image Sensor - Effective Pixels (W x H): 2688 x 1520 px
• Performance - Wired LAN: Yes
• Performance - Audio Output Channels: 1.0 channel
• Performance - Ethernet LAN (RJ-45) Ports: 1
• Performance - Supported Mobile Operating Systems: Android, iOS
• Performance - Communication Standards: IEEE 802.3af
• Performance - Alarm Input Channels: 1
• Image Quality - Image Sensor Type: CMOS
• Performance - Alarm Output Channels: 1
• Performance - Frame Rate: 60 fps
• Performance - Supported Video Modes: 720p, 1080p
• Performance - Wide Dynamic Range (WDR): Yes
• Performance - Day/Night Mode: Yes
• Performance - Alarm I/O: Yes
• Image Quality - Total Megapixels: 4 MP
• Lens System - Number of Lenses: 1
• Lens System - Detection Distance: 70 m
• Lens System - Observation Distance: 28 m
• Lens System - Recognition Distance: 14 m
• Lens System - Focal Length: 3.6 mm
• Lens System - Identification Distance: 7 m
• Lens System - Minimum Focal Distance: 2 m
• Lens System - Maximum Aperture: 1
• Protection - Intelligent Video Surveillance (IVS) Features: Abandoned Object, Missing Object
• Camera - White Balance: Auto, Manual, Outdoor
• Camera - Min. Illumination: 0.001 lux
• Camera - Lens Field of View, Horizontal: 93°
• Camera - Lens Field of View, Vertical: 50°
• Camera - Gain Control: Auto/Manual
• Camera - Pan Range: 0 - 355°
• Camera - Shutter Speed: 1/3 - 1/100000 s
• Camera - Shutter Speed Adjustment: Auto/Manual
• Shutter - Camera Shutter Type: Electronic
• Video - Compression Formats: H.264, H.264B, H.264H, H.265, M-JPEG
• Video - Video Transmission: Yes
• Video - Noise Reduction Technology: 3D Noise Reduction
• Video - Bit Rate: H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps–8192 Kbps
• Video - Backlight Compensation: Yes
• Video - Image Rotation and Mirroring: Yes
• Video - Privacy Mask: Yes
• Video - Highlight Compensation (HLC): Yes
• Video - Bit Rate Control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Video - Region of Interest (ROI) Encoding: Yes
• Network - Supported Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Network - Web Browser: Yes
• Network - Number of Users: 20 users
• Network - Streaming Method: Multicast, Unicast
• Features - Max Resolution: 2688 x 1520 px
• Features - Intended Use: Indoor / Outdoor
• Features - Model: IP Security Camera
• Features - Housing Material: Metal
• Features - Mounting Type: Ceiling
• Features - Product Color: White
• Features - Mirror: Yes
• File Formats - Supported Video File Formats: H.264, H.265
• Storage Media - Built-in HDD: No
• Storage Media - Internal Storage Capacity: 1000 MB
• Storage Media - ROM Capacity: 128 MB
• Storage Media - Maximum Memory Card Size: 256 GB
• Storage Media - Supported Memory Card Types: MicroSD (TransFlash)
• Ports and Interfaces - Connectivity Technology: Wired
• Audio - Built-in Microphone: Yes
• Audio - Audio Input Channels: 1.0 channel
• Audio - Noise Reduction: Yes
• Audio - Dynamic Range: 140 dB
• Display - Supported Graphics Resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
• Power - Power Source Type: DC, PoE
• Power - DC Output Voltage: 12
• Power - Power Consumption: 4.4 W
• Management Features - Management Software: Smart PSS;DSS;DMSS
• Ergonomics - Tilt Angle Range: 0 - 75°
• Ergonomics - Rotation Angle: 355°
• Dimensions and Weight - Diameter: 12.2 cm
• Dimensions and Weight - Product Weight: 460 g
• Dimensions and Weight - Product Width: 122 mm
• Dimensions and Weight - Product Height: 88.9 mm
• Dimensions and Weight - Product Depth: 122 mm
• Package Weight - Weight with Packaging: 620 g
• Package Contents - Number of Cameras: 1
• Operating Conditions - Operating Temperature Range: -30 - 60 °C
• Operating Conditions - Storage Temperature Range: -30 - 60 °C
• Operating Conditions - Relative Humidity Range: 0 - 95%
• Construction - IP Rating: IP67
• Construction - Form Factor: Dome
• Construction - IK Code: IK10
• Certificates - Compliance Certificates: CE, Federal Communications Commission (FCC)
• Certificates - Certifications: CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
• Classification - Manufacturer Code: 6939554975462
• Classification - EAN: 1.0.01.04.31017-0002
• Classification - Product ID: 108955696
