Komutatorius Zyxel XGS1935-28-EU0101F

Trumpai apie prekę

Prekė: Komutatorius Zyxel XGS1935-28-EU0101F. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Zyxel
• Modelis: XGS1935-28-EU0101F

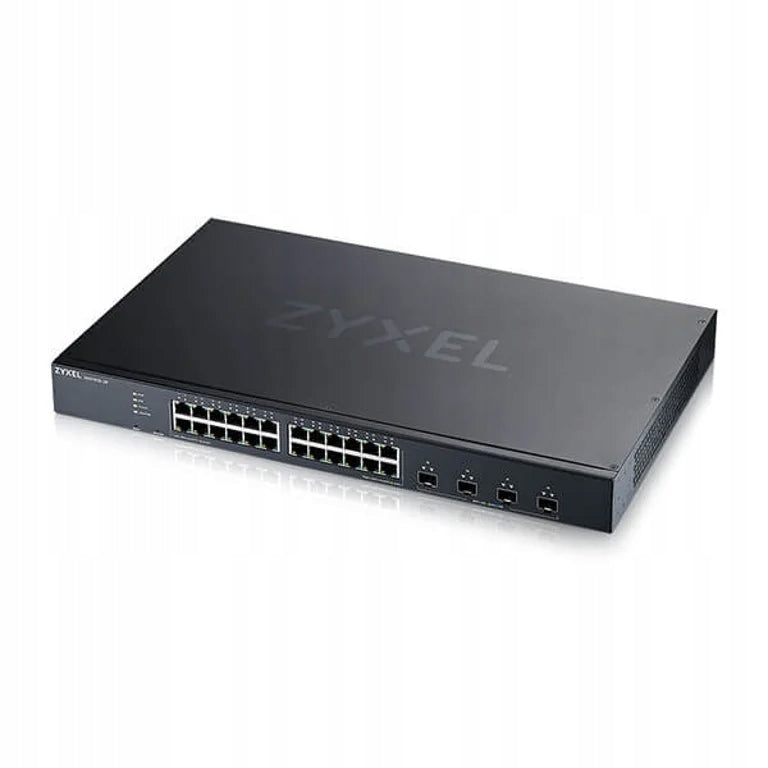

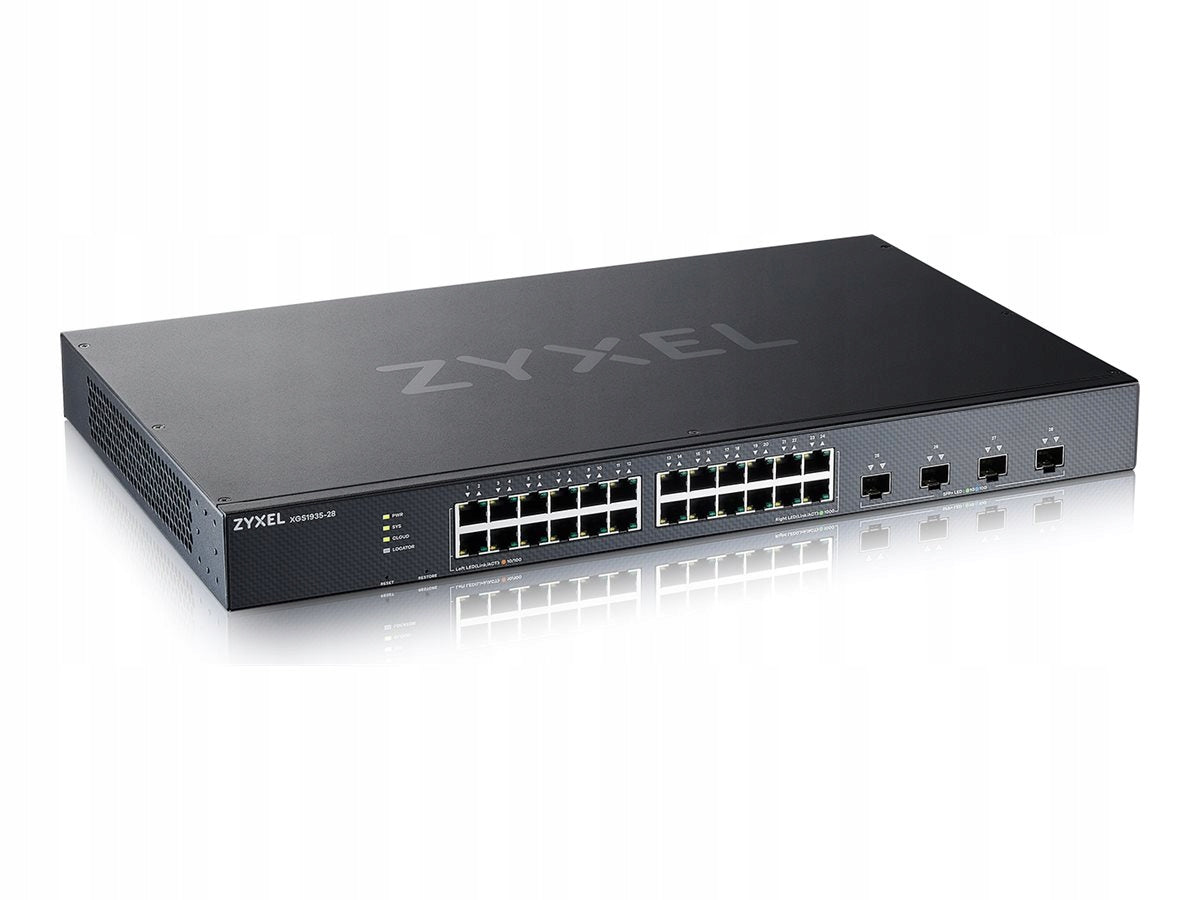

Switch Zyxel XGS1935-28-EU0101F

Efficient management of network traffic

The professional network switch Zyxel XGS1935-28 is an advanced device of the manageable class, which operates in flexible L2+/L3 mode. The hardware is designed to efficiently and securely manage data packets in business infrastructure. It enables administrators to have full control over the network using the traffic classification function, advanced traffic shaping and full support for prioritizing services service quality support (QoS), which allows key processes to work seamlessly.

Fast transmission and uplink 10G

Switch offers a powerful communication base, which consists of 24 Gigabit Ethernet ports (10/100/1000) designed for stable connection of end devices. As many as 4 slots of the SFP+ module have been prepared for high-speed master and bus connections, providing full support for 10G over long distances. The design is characterized by an impressive routing/switching throughput of 128 Gbit/s and a transfer speed of 95,2 Mpps, which completely eliminates bottlenecks.

Specifications:

Network Parameters and Performance

• Switch Type: Managed (Web, Cloud, CLI)
• Switch Layer: L2+/L3
• Routing/Switching Capacity: 128 Gbps
• Forwarding Rate: 95.2 Mpps
• Address Table Size: 16000 entries
• Packet Buffer Memory: 1.5 MB
• Internal Memory: 512 MB (RAM)
• Flash Memory Size: 32 MB
• Jumbo Frames Support: Yes (Jumbo Frames Extension: 9000)

Port Configuration and Interfaces

• Number of RJ-45 Ethernet Ports: 24
• RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Number of SFP+ Module Slots: 4 (with 10G support)

Security and Traffic Management Features

• Traffic Management Features: Quality of Service (QoS) support, traffic classification, traffic shaping, Multicast support, VLAN support, system event logging
• Security and Filters: ARP inspection, IGMP snooping, DHCP features (DHCP client, DHCP relay)
• Power over Ethernet (PoE): No
• Standards Compliance: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical and Power Parameters

• Chassis Type: 1U (Rack Mounting Capability: Yes)
• Stackable: Yes
• Product Color: Black
• LED Indicators: Yes
• Power Source: AC (Power Adapter Included: Yes)
• AC Input Voltage: 100 - 240 V (50/60 Hz)
• Power Consumption: 11.5 W (23.2 W maximum)
• Operating Temperature Range: -20 - 50 °C
• Storage Temperature Range: -40 - 70 °C
• Relative Humidity Range: 10 - 90%
• Product Weight: 3.1 kg
