Komutatorius Zyxel GS1900-24

Trumpai apie prekę

Prekė: Komutatorius Zyxel GS1900-24. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Zyxel
• Modelis: GS1900-24-EU0102F

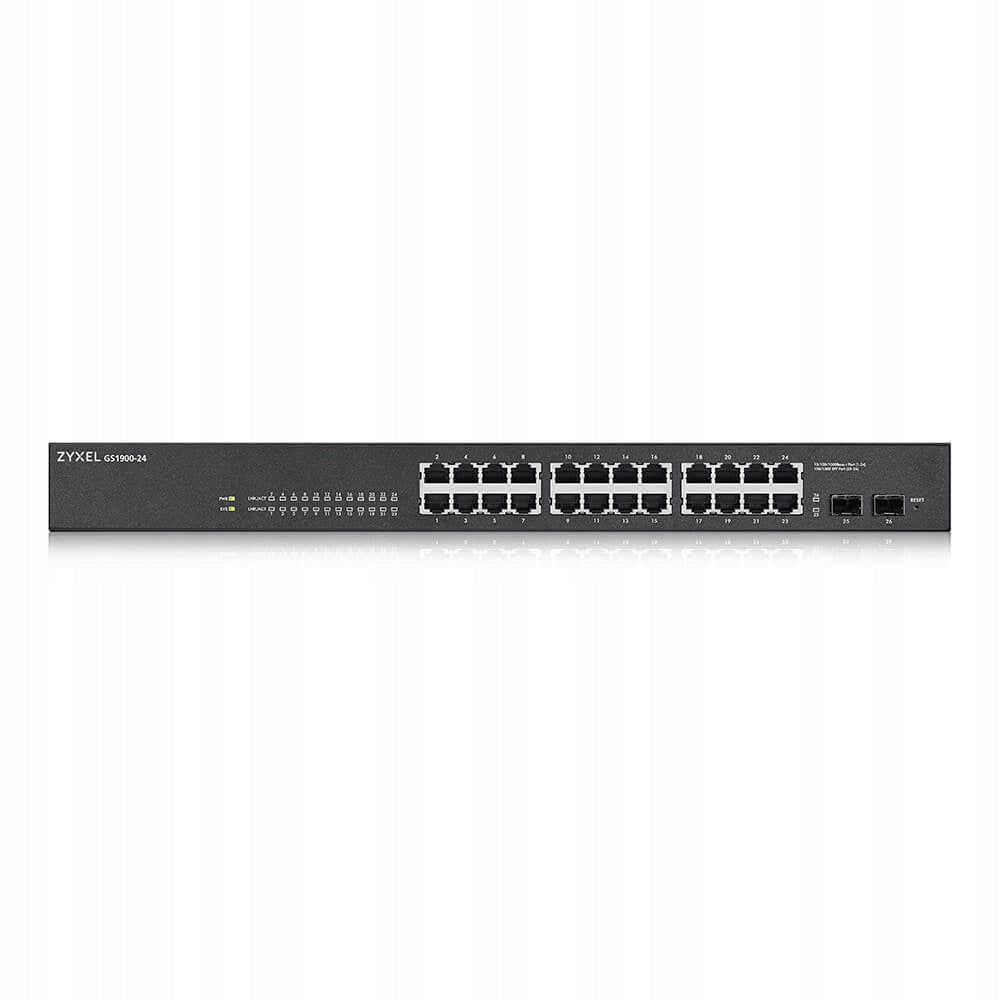

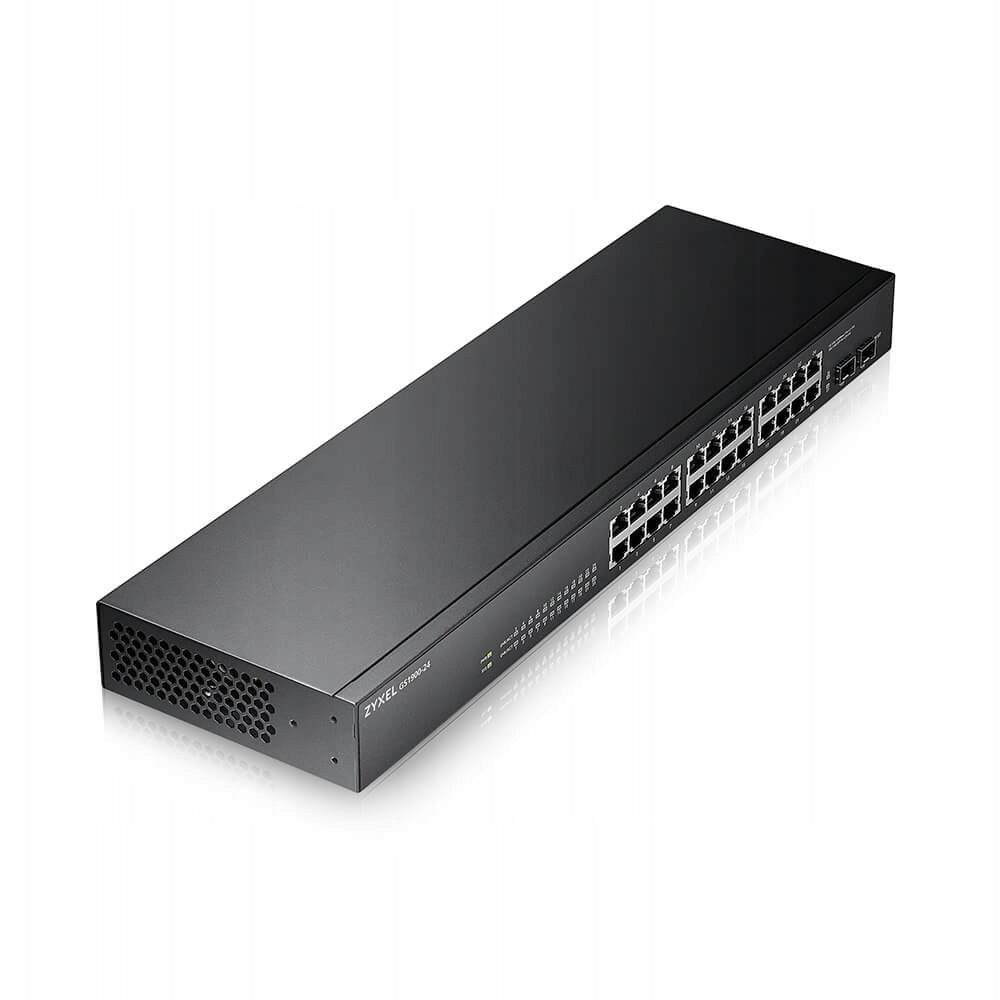

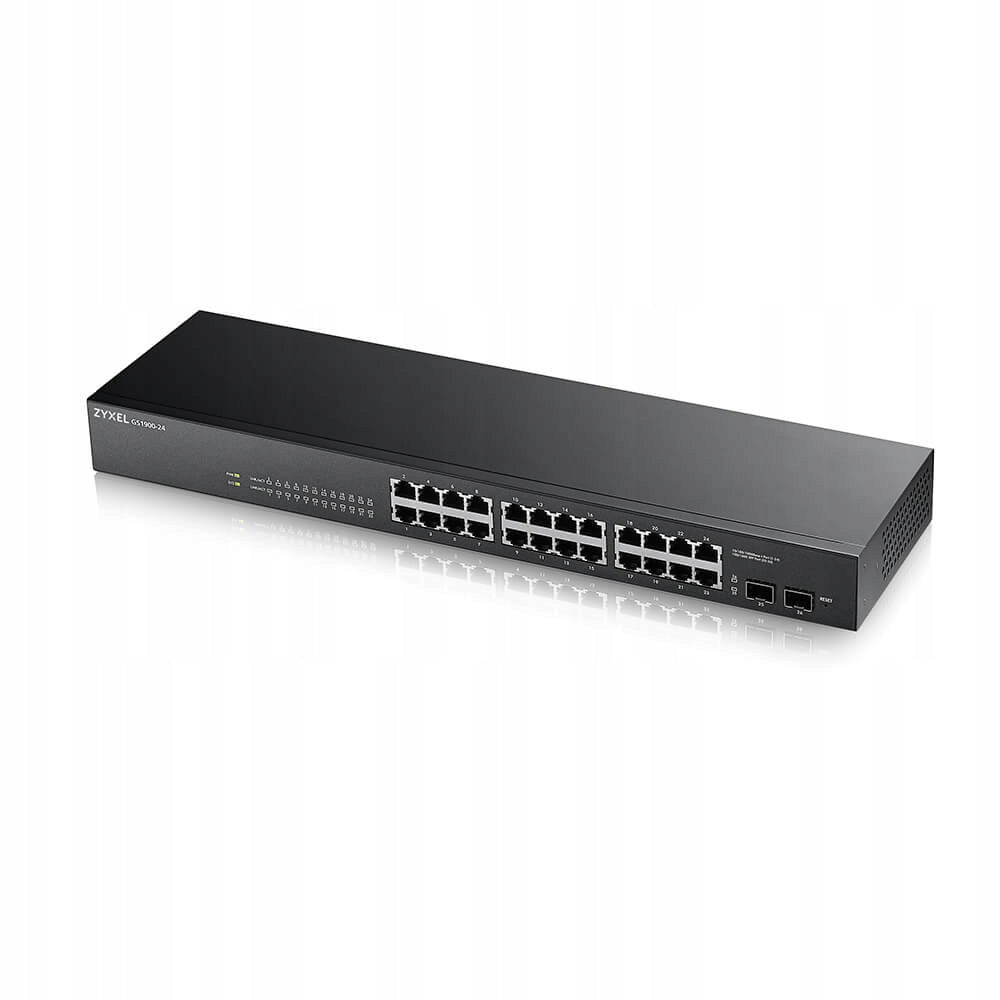

Switch Zyxel GS1900-24

Advanced L2 management and Gigabit connectivity for your business

The Zyxel GS1900-24 (26p) switch is a high-performance, managed networking solution that offers advanced L2 layer features. Designed for small and medium-sized businesses, this switch combines 24 Gigabit Ethernet ports (10/100/1000) with two SFP slots for fiber optic links, providing a solid foundation for your business network.

High performance and throughput

Designed to handle smooth network traffic, the switch offers routing/switching throughput of 52 Gbit/s and transfer speed of 39 Mpps. A large MAC address table (8000 entries) and support for Jumbo Frames (9000) ensure efficient data transmission and handling of large files.

Intelligent L2 functions and management via the World Wide Web

The switch offers flexible configuration options, including intuitive management via the website (web interface). Full service quality (QoS) (IEEE 802.1p) allows traffic to be prioritized, and VLAN support (up to 256) enables easy network segmentation. Advanced features such as connection aggregation (LACP) and Split tree protocol (STP/RSTP/MSTP) guarantee high network availability and stability.

Advanced network security

Network security is ensured by Filtering MAC addresses, authentication of IEEE 802.1x ports (RADIUS, TACACS+) and support for encrypted SSH/SSL management protocols. The IGMP snooping feature optimizes multicast traffic, while static port protection increases access security.

1U rack mount design

The switch is designed for professional installation (mountable in the rack) in a standard 1U system. Its robust design ensures reliability, as evidenced by its high MTBF rate (432,673 h) and the ability to operate at temperatures up to 50°C .

Specification

• Model: GS1900-24
• Switch Type: Managed
• Switch: L2
• Design: Rack mounting options (1U)
• Product color: Black
• PoE support: No

Ports and interfaces

• Basic RJ-45 switching Number of Ethernet ports: 24
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Number of SFP slots: 2
• Power connector: AC input socket

Performance

• Routing/switching throughput: 52 Gbit/s
• Transfer speed: 39 Mpps
• Address table size: 8000 inputs
• Store-and-forward: Yes
• Compatible with Jumbo Frames: Yes (Jumbo Frames extension: 9000)
• Package buffer memory: 0,525 MB
• MTBF (Mean Interval Period): 432,673 h

Management and Functions

• Service Quality of Service (QoS): Yes
• Management by website: Yes
• VLAN support: Yes (Number of VLANs: 256)
• Connection aggregator: Yes
• Spanning tree protocol: Yes
• Automatic MDI/MDI-X: Yes
• Communication standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Management protocols: SNMP v1/v2, RMON

Security

• IGMP snooping: Yes
• MAC Address Filtering: Yes
• supports SSH/SSL: Yes
• Password protection: Yes
• Authentication type: 802.1x RADIUS, TACACS+

Power supply

• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240 V
• Power consumption (max): 16 W

Physical dimensions

• Product width: 440 mm
• Product depth: 131 mm
• Product height: 44 mm
• Product weight: 2,09 kg

Content of packaging

• Cables: AC
• Hook Mounting Kit: Yes
• User's Manual: Yes
