Komutatorius ULTIPOWER 0094af, 9xFE (4xPoE), 2 vnt.

Trumpai apie prekę

Prekė: Komutatorius ULTIPOWER 0094af, 9xFE (4xPoE), 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 0094AF

Product Code: 0094AF

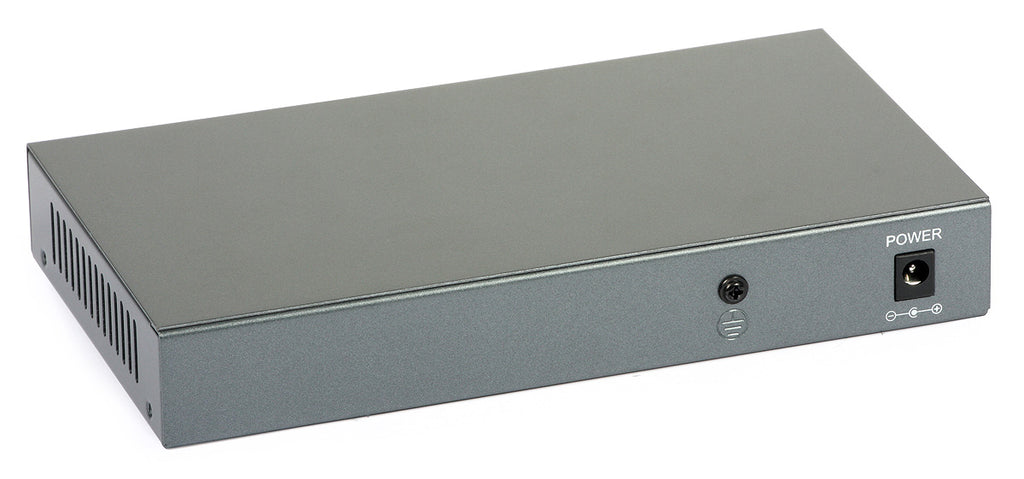

The ULTIPOWER 0094af PoE Switch is a desktop device that provides seamless network transmission. It allows you to establish connections at speeds of 10 and 100Mbps. It has 9 RJ45 ports supporting automatic negotiation of connection speeds. 4 of them support Power over Ethernet (PoE). The switch automatically detects PD devices operating in the IEEE 802.3af standard and supplies them with power.

Distinguishing features:

• 9 ports 10/100 Mbps
• 4 PoE ports, data transfer and power supply of the device using one cable,
• No assembly or configuration is required,
• PoE power up to 15,4W for each PoE port
• Support for PoE-powered devices operating according to IEEE802.3af standard
• Support for auto-learning and auto-aging MAC addresses
• LEDs informing about the status and speed of the connection, its activity and power supply

802.3af a 802.3at

The most popular PoE 802.3af power standard is used e.g. in IP cameras. It enables power supply of devices with voltage from 44 to 57 [V] at a maximum power of 15,4 [W]. The 802.3at standard enables power supply to devices with an input voltage of 50 - 57 [V] and a power not exceeding 25,5 [W]. Examples of devices powered by the 802.3at standard are: printers, rotating IP cameras and switches.

Technical parameters:

• Name ULTIPOWER 0094af
• IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP standards and protocols
• 10BASE-T redirect speed: 14880pps/port 100BASE-TX: 148800pps/port
• Store-and-Forward transmission method
• Ports 9 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX automatic patching) including 4 PoE ports
• 10Base-T network cabling: UTP cable cat. 3, 4 or 5 (up to 100m) STP cable EIA/TIA-568 100Ω (up to 100m) 100Base-Tx: UTP cable cat. 5, or 5e (up to 100m) STP cable EIA/TIA-568 100Ω (up to 100m)
• LED Power, Link/Act, 100M, PoE Status Indicators
• CE Certificates
• Dimensions [mm] 190x107x30
• Working environment Permissible operating temperature: 0...40℃ Permissible storage temperature: -40...70℃ Permissible air humidity: 10...90%, non-condensing Permissible storage humidity: 5...90%, non-condensing
• AC 230V/DC 48-57V 2,5A power supply
• Other Compatible with IEEE 802.3af PoE (PD) powered devices Support for auto-learning and auto-aging MAC addresses Support for bandwidth control standard for full duplex mode (IEEE802.3x) and back pressure function for half duplex mode
