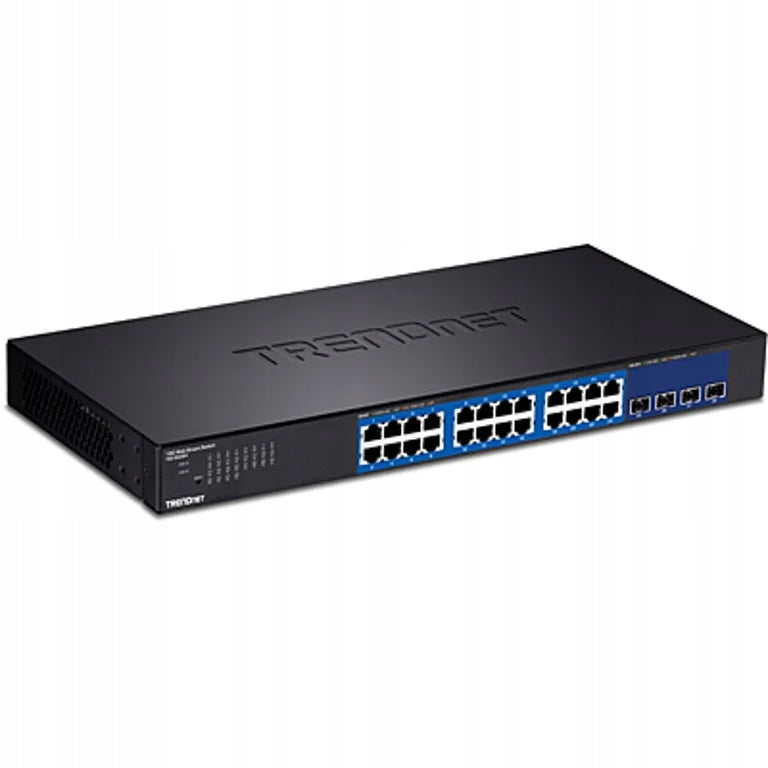

Komutatorius Trendnet TEG-30284, valdomas, Gigabit Ethernet (10/100/1000)

Trumpai apie prekę

Prekė: Komutatorius Trendnet TEG-30284, valdomas, Gigabit Ethernet (10/100/1000). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Trendnet
• Modelis: 710931140200

Trendnet TEG-30284. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 128 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transmission - Routing/Switching Throughput: 128 Gbit/s
• Data Transmission - Throughput: 95.2 Mpps
• Data Transmission - MAC Address Table Size: 16000 entries
• Data Transmission - Jumbo Frame Support: 10000
• Multicast Features - Multicast Support: Yes
• Features - MTBF (Mean Time Between Failures): 450021 h
• Features - Certifications: CE FCC UL
• Network - 10G Support: Yes
• Network - Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Copper Ethernet Cabling Technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Jumbo Frame Compatible: Yes
• Network - Port Mirroring: Yes
• Network - Full Duplex: Yes
• Network - Security / Encryption: 802.1x RADIUS, HTTPS, SSL/TLS
• Network - Flow Control Support: Yes
• Network - Quality of Service (QoS) Support: Yes
• Network - Link Aggregation: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Private VLAN, Tagged VLAN
• Network - Number of VLANs: 256
• Ports & Interfaces - Maximum Data Transfer Rate: 20000 Mbit/s
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - Gigabit Ethernet Ports Quantity: 24
• Ports & Interfaces - SFP+ Module Slots Quantity: 4
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Design - Rack Mountable: Yes
• Design - Number of Fans: 1 fan
• Design - Form Factor: 1U
• Design - LED Indicators: Yes
• Design - Product Color: Black
• Performance - Buffer Size: 2048 KB
• Performance - Noise Level: 50 dB
• Performance - Access Control List (ACL): Yes
• Security - IGMP Snooping: Yes
• Security - MAC Address Filtering: Yes
• Security - SSH/SSL Support: Yes
• Security - Authentication: Port-based authentication
• Power - Maximum Power Consumption: 25 W
• Power - AC Input Frequency: 50 - 60 Hz
• Power - PoE (Power over Ethernet) Support: No
• Power - AC Input Voltage: 100 - 240 V
• Packaging Content - Quick Start Guide: Yes
• Packaging Content - Cables Included: AC power cord
• Packaging Content - Rack Mounting Kit: Yes
• Packaging Content - Power Adapter Included: Yes
• Packaging Content - Drivers Disk: Yes
• Weight & Dimensions - Product Width: 440 mm
• Weight & Dimensions - Product Depth: 210 mm
• Weight & Dimensions - Product Height: 44.5 mm
• Weight & Dimensions - Product Weight: 2.64 kg
• Management Features - Switch Type: Managed
• Management Features - Web-based Management: Yes
• Protocols - Management Protocols: SNMP (v1, v2c, v3)
• Logistics Data - Harmonized System (HS) Code: 85176990
• Other Features - Operating System Compatibility: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server
• Classification - Manufacturer Code: TEG-30284
• Classification - EAN: 0710931140200
• Classification - Product ID: 31984996
