Trumpai apie prekę

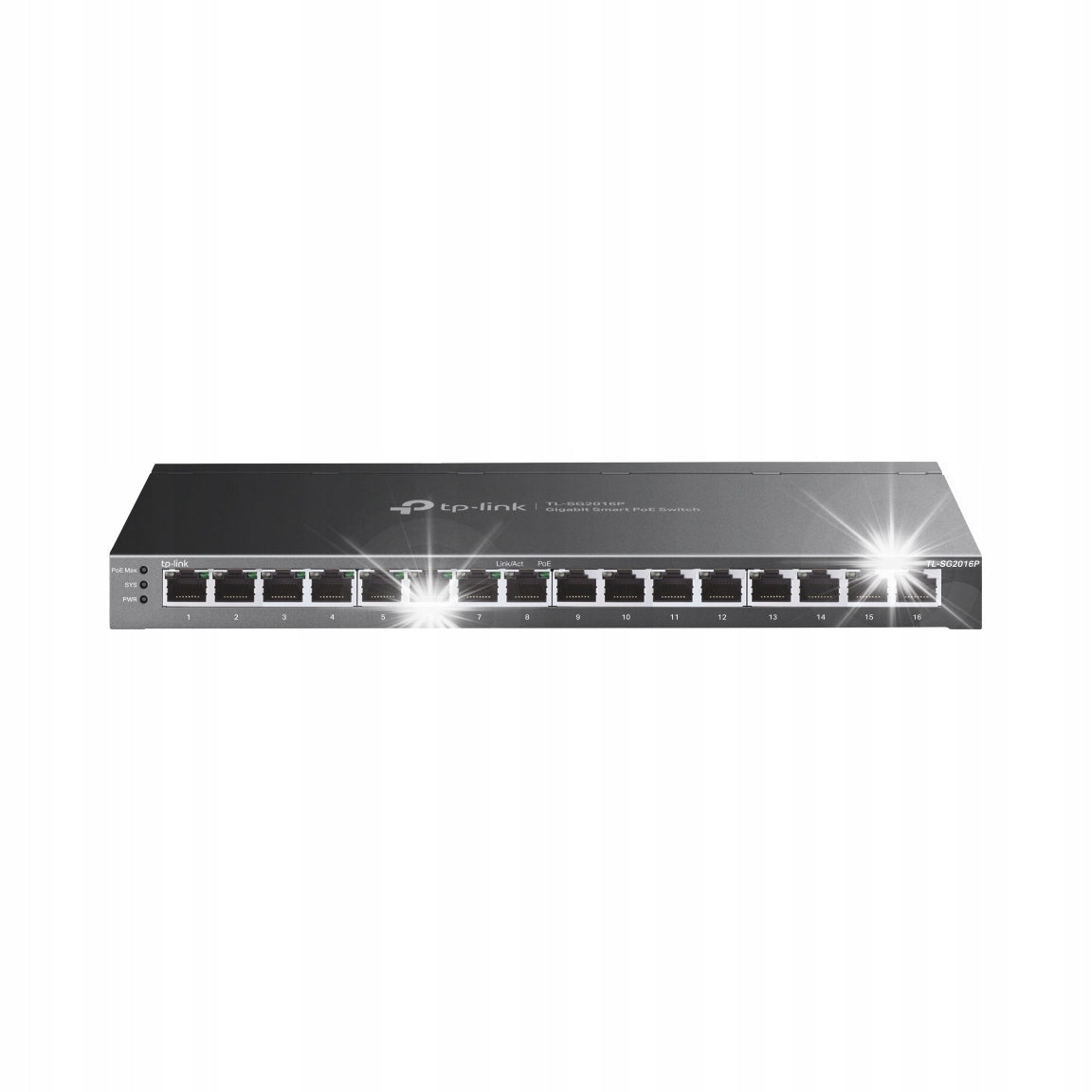

Prekė: Komutatorius TP-LINK TL-SG2016P, 8x PoE+. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: TP-Link
- Modelis: 601290514
Gigabit JetStream 16p Smart Switch (8xPoE)
TL-SG2016P Gigabit JetStream Smart Switch, 16 Gigabit Ports Including 8 PoE+ Ports
- 120W PoE Budget: 8 PoE ports compliant with 802.3at/af standards, providing a total of 120W of PoE power.
- Gigabit ports: 8 gigabit PoE+ ports and 8 gigabit non-PoE ports translate into high-speed connections.
- Central management: Cloud access and the Omada app are a management convenience.
- Optimization of voice and video transmission: QoS L2/L3/L4 and IGMP Snooping.
JetStream Smart Switch, 16 Gigabit Ports Including 8 PoE+ Ports
- Centralised management
- Control from multiple locations
- Omada app
- Optimizing multicast traffic
- VLAN
- Access Control List (ACL)
- 120 In total PoE capacity
- Durable metal housing
Many possible applications
I also work with wired devices without PoE support - computers, printers and IPTV.
- Monitoring - Compatible with IP cameras
- Wi-Fi coverage - Compatibility with EAP access points
- Wired Connections - Compatible with PCs and Printers
PoE power supply for simpler network deployment
The TL-SG2016P has 8 PoE+ ports compliant with 802 standards. af/at and is able to provide devices with up to 120 W of total power supply.
Access Control List (ACL)
The ACL acts as a virtual administrator that grants access to data to connected devices according to established rules and helps implement the required network regulations.
QoS function - transmission without lag
Network traffic is smooth even when performing disruptive activities, such as voice or video transmission.
VLAN - network resource security
Dividing the network into smaller segments ensures its more efficient operation and a higher level of security of network resources.
Omada's software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing access to a functional business network with higher performance, better security and greater reliability.
Centralized management in the cloud
Comprehensive central management of the entire network, divided between different facilities, from a single interface - anywhere and at any time.
Convenience of management with the Omada application
With easy-to-follow instructions, it only takes a few minutes to set up the settings you need in the Omada app. Monitor network status, manage clients, change settings at any time - all from your smartphone or tablet.
Technical Specifications:
Construction
- Product Color: Black
- LED Indicators: System, PoE, Power
- Housing Material: Metal
Power
- Power Source: DC/PoE
- DC Input Voltage: 53.5 V
- Power Consumption (Max): 146.5 W
- Input Current: 1.31 A
Weight and Dimensions
- Product Height: 25.4 mm
- Product Width: 286 mm
- Product Depth: 111.7 mm
Security
- IGMP Snooping: Yes
- DHCP Features: DHCP snooping, DHCPv6 snooping, DHCPv6 client, DHCP relay
- Queue Scheduling Algorithms: Weighted Round Robin (WRR), SP
- Encryption / Security: SSH, SNMP, SNMPv2, HTTPS, SSL/TLS, SNMPv3, EAP-MD5
- Access Control List (ACL): Yes
- MAC Address Filtering: Yes
- IP-MAC-Port Binding: Yes
- MAC Address Entries: Dynamic MAC address entries, Static MAC address entries
- SSH/SSL Support: Yes
- BPDU Filtering / Protection: Yes
Management Features
- Command-Line Interface (CLI): Yes
- MIB Support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
- System Event Log: Yes
- Switch Layer: L2/L3/L4
- Cloud Managed: Yes
- ARP Inspection: Yes
- Quality of Service (QoS) Support: Yes
Operating Conditions
- Heat Dissipation: 499.98 BTU/h
- Relative Humidity Range: 10 - 90%
- Storage Relative Humidity: 5 - 90%
- Storage Temperature Range: -40 - 70 °C
- Operating Temperature Range: 0 - 40 °C
Network
- Rate Limiting: Yes
- Supported Cable Types: Cat5, Cat3, Cat5e, Cat4
- Networking Standards: IEEE 802.1D, IEEE 802.11w, IEEE 802.3ad, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3i, IEEE 802.1p, IEEE 802.1s, IEEE 802.3at, IEEE 802.1Q
- Copper Ethernet Cabling Technology: 100BASE-TX, 1000BASE-T, 10BASE-T
- Link Aggregation: Yes
- Storm Control: Yes
- Auto-Negotiation: Yes
- 10G Support: No
- Flow Control Support: Yes
- Number of VLANs: 4000
- VLAN Support: Yes
- Virtual LAN Features: Multicast VLAN, Voice VLAN, Tagged VLAN
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN Data Transfer Rate: 10, 100, 1000 Mbit/s
Performance
- Fanless: Yes
- Device Firmware Upgradeable: Yes
Packaging Data
- User Manual: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 Features: Dual stack IPv4/IPv6
Ports & Interfaces
- Power Connector: DC-in jack
- Basic Switching RJ-45 Ethernet Ports Quantity: 16
- Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Data Transmission
- Switching Capacity: 16 Gbit/s
- Number of Queues: 8
- Jumbo Frames Support: Yes
- MAC Address Table Size: 8000 entries
- Packet Buffer Memory: 4.1 MB
- Jumbo Frames: 9000
Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE+) Ports Quantity: 8
- Total Power over Ethernet (PoE) Budget: 120 W
- PoE Support: Yes
Multicast Features
- Multicast Listener Discovery (MLD) Snooping: MLD v1, MLD v2
- Multicast Support: Yes
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | TP-Link |
| Parametry | Number of ports | 16 |
| Parametry | EAN (GTIN) | 5907949132753 |
| Parametry | Manufacturer code | 601290514 |
