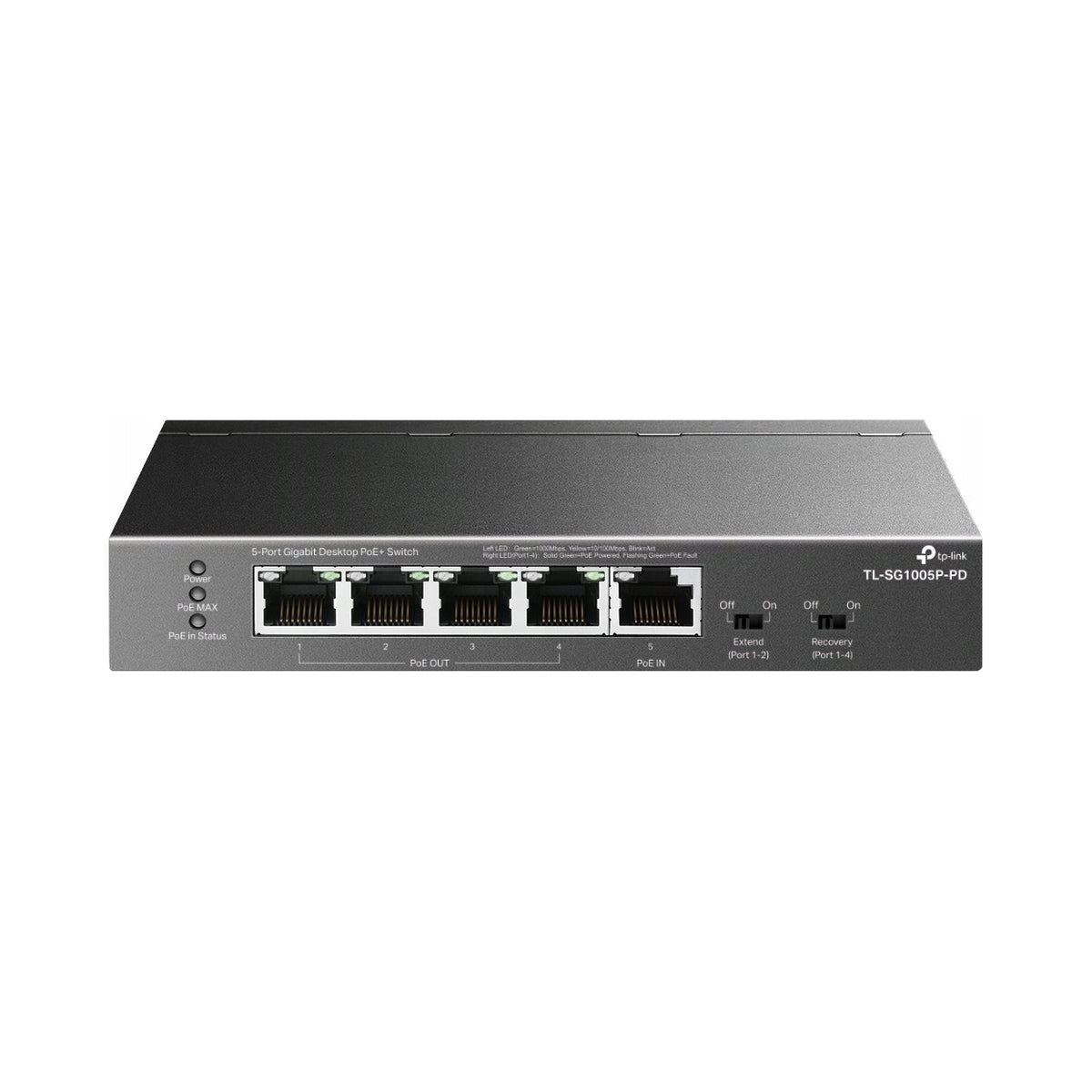

Komutatorius TP-LINK TL-SG1005P-PD, 2 vnt., PoE++

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SG1005P-PD, 2 vnt., PoE++. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG1005P-PD

Manufacturer: TP-LINK

Features

• Description TL-SG1005P-PD Desktop PoE+ Switch, 5 Gigabit Ports, including 1 PoE++ IN Port and 4 PoE+ OUT Ports. Ports: 5 RJ45 10/100/1000 Mbps ports, 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports. PoE Power Output: Supports up to 66W / 47W / 21W / 9W PoE output, depending on the power source according to 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standards respectively. Extended PoE Range: In Extend Mode, the PoE transmission distance reaches up to 250m, making it ideal for deploying cameras in large areas. PoE Auto Recovery: Automatically restarts PoE devices that lose connection or become unresponsive, ensuring stable operation. Metal Housing: Durable metal housing and desktop/wall-mountable design suitable for various environments. Silent Operation: Fanless design ensures quiet operation, suitable for homes and businesses. Plug and Play: No configuration or complicated installation required. Power: This product can only be powered by a PoE source. AC and DC power are not supported.
• Switch Class Unmanaged
• Application (Switches) Home and Small Office (up to 16 ports)
• Network Architecture (Switches) Gigabit Ethernet
• Number of 10/100/1000 Mbps Ports 5
• Number of PoE+ Ports 4
• Number of PoE++ Ports 1
• Console Port No
• Forwarding Mode Store-and-forward
• Switching Capacity (Gbps) 10
• Forwarding Rate (Mpps) 7.44
• MAC Address Table Size 2000
• Jumbo Frame Support No
• Stackable No
• VLAN
• Supported Protocols and Standards IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3x IEEE 802.1p
• QoS
• Security
• Management, Monitoring, Configuration Extend Mode (Ports 1-2, up to 250 m PoE power and data transmission) PoE Auto Recovery (Ports 1-4) Automatic MAC address learning and aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
• L2 Features
• L3 Features
• Other Features
• Enclosure Type Desktop (PC/Switches)
• Fan (Switches) No
• Power Consumption 68.59 W
• Environmental Requirements Operating Temperature: -30~70°C (-22~158°F) Storage Temperature: -40~70°C (-40~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
• Certifications CE FCC RoHS
• Included Accessories TL-SG1005P-PD Installation Guide
• Power Supply Powered by PoE source only. PoE IN Port (Port 5) compliant with 802.3af/at/bt Type3/bt Type4. PoE OUT Ports (Ports 1-4) compliant with 802.3af/at. Total PoE Power Budget: 66 W when powered by 802.3bt Type 4 (90 W) 47 W when powered by 802.3bt Type 3 (60 W) 21 W when powered by 802.3at (30 W) 9 W when powered by 802.3af (15.4 W)
• Dimensions 158 x 101 x 25 mm
• Other Parameters AUTO Negotiation AUTO MDI/MDIX
