Komutatorius TP-LINK TL-SF1024D, 24x 10/100 Mbps

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SF1024D, 24x 10/100 Mbps. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: NETLSF1024DTP

Switch TP-LINK TL-SF1024D (24x 10/100 )

TP-LINK

Reliability

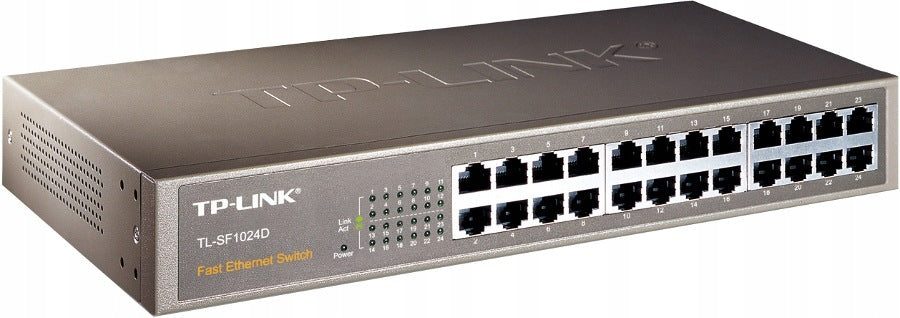

The TL-SF1024D switch is equipped with 24x 10/100 RJ-45 ports with transmission speeds up to 4800 Mbps for demanding office or home applications. Fanless design ensures quiet operation of the device.

Wide range of functions

In addition to the standard switch functions, the TL-SF1024D also has a wide range of additional functions, such as automatic negotiation, Auto-MDI/MDI-X support.

Application of the product

The TL-SF1024D Fast Ethernet Switch is a cost-effective, efficient and easy to use solution. It allows you to upgrade the network by providing data transmission speeds up to 100Mbps. Each of the 24 ports of the device has an automatic patching function MDI/MDIX allowing you to quickly install the device without having to check the type of cables used. The TL-SF1024D switch is environmentally friendly, as it uses innovative technology to save up to 75% of energy consumption. In addition, 80% of the product packaging is recycled material.

Green TP-LINK technology

The next-generation TL-SF1024D Fast Ethernet switch uses the latest, innovative technology to increase network bandwidth with much greater energy savings. Automatically adjusts the required power consumption depending on the connection status and cable length, ensuring environmental protection. The device complies with the European RoHS directive, limiting the use of equipment made of environmentally hazardous materials. In addition, 80% of the product packaging is suitable for re-processing.

High work efficiency

Metal housing, safe internal power supply and attractive price make the switch the best solution for applications in networks connecting up to 24 users. The TL-SF1024D’s seamless network traffic switching architecture enables packet forwarding and filtering at full speed at maximum link bandwidth. The TL-SF1024D supports the bandwidth control standard for full duplex mode (IEEE 802.3x) and backpressure function for half duplex mode.

Simple operation

Automatic switch operation thanks to plug and play function ensures simple and hassle-free installation. The device does not require additional software. Thanks to the MDI/MDIX function, there is no need for patch cables. The automatic connection negotiation feature detects the speed of the connected device (10 or 100Mbps) on each port, ensuring the best transmission performance.

UPnP

Peer-to-peer (P2P) networking technology for personal computers and smart and wireless devices. Its main task is to facilitate the connection, control and transfer of data between different devices operating in the network. It allows data to be transferred between two devices under the control of any control device on the network. UPnP is independent of the operating system, programming language and physical medium.

CE certified

European Union directives on issues related to safety of use, health protection and environmental protection. By marking its product with the CE mark, the manufacturer declares that this product meets the requirements of all these directives.

FCC Certificate

Certificate of the American agency regulating the rules of using radio frequencies for communication purposes. The aim of the agency is to ensure order in the field of radio broadcasting, telecommunications and all forms of television.

RoHS certified

The Restriction of Hazardous Substances (2003) Directive. Refers to restrictions on the content of harmful materials (e.g. Lead, mercury cadmium) in electronic devices.

Highlighted features:

• 24 RJ45 10/100M ports
• Innovative technology saves up to 75% of energy
• Support MAC address self-learning, automatic call patching (MDI/MDIX)
• 13'' metal housing, can be mounted in standard 19" cabinets.

• MAC address table size: 8000
• Network ports: 24x 10/100
• Protocols and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Bus speed: 4.8 Gbps
• Power supply: 100 - 240 V AC
• Switching modes: 2
• Operating temperature range (st. C): 0 to 40
• Forwarding method: Store and forward
• Working humidity range (%): 10 to 90
• Width (mm): 294
• Height (mm): 44
• Depth (mm): 180
• Purpose: Desk, Rack 19
• Technologies: UPnP
• Equipment: Mounting kit, Power cord
• Other parameters: Auto MDI/MDI-X, Automatic negotiation, No fan, Energy saving up to 75 percent
• Color: Black

Unmanaged switch with a bus speed of 4.8 Gbps, equipped with 24 10BASE-T/100BASE-TX network sockets.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	24
Parametry	LAN port operating standard	10/100 Mbps
Parametry	EAN (GTIN)	6935364020828
Parametry	Manufacturer code	NETLSF1024DTP
