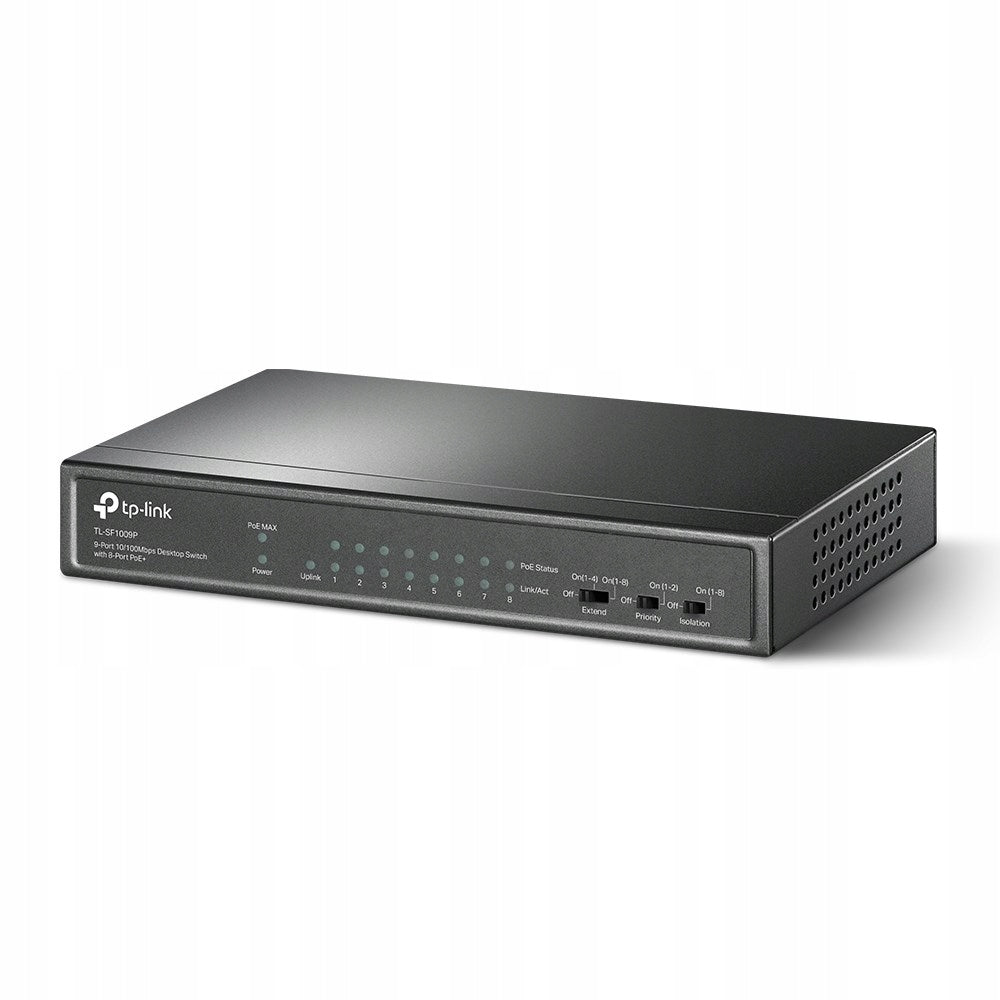

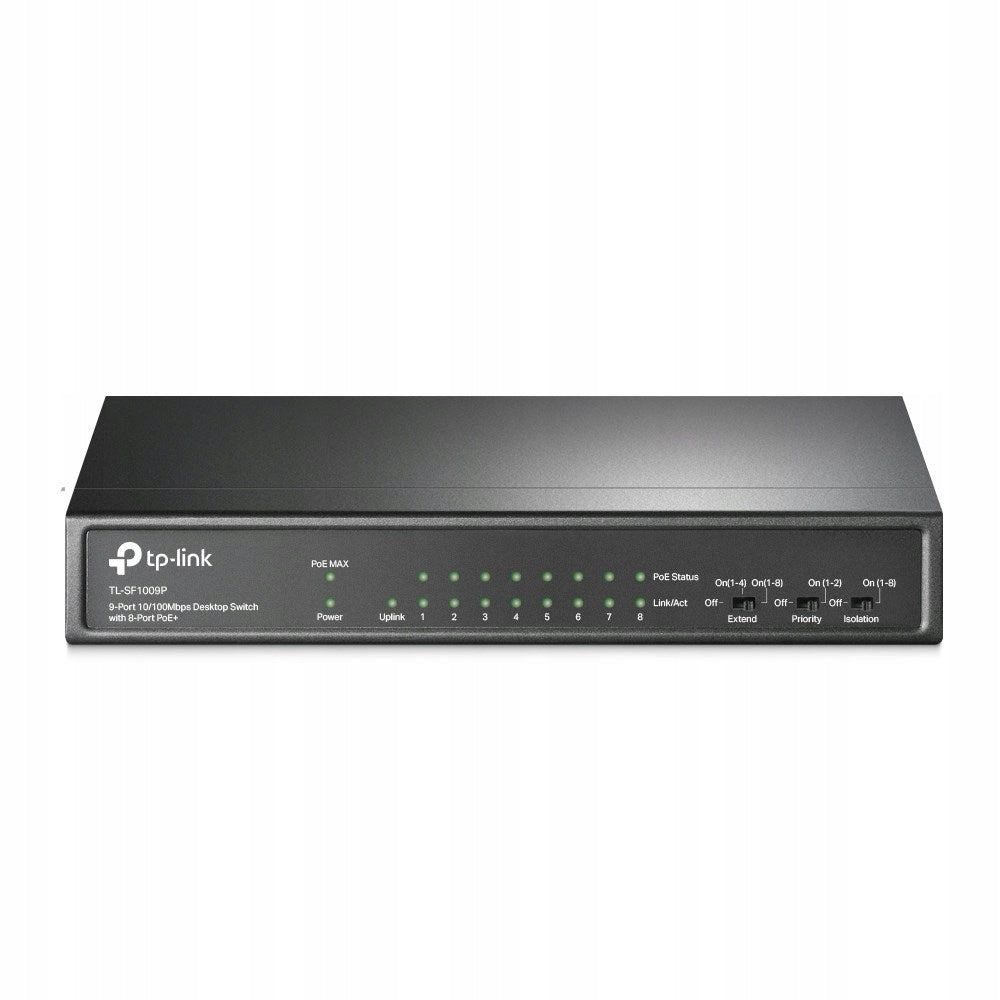

Komutatorius TP-LINK TL-SF1009P

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SF1009P. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 1210002616393

Reliable power and data center

TP-Link TL-SF1009P is a practical and efficient unmanaged Fast Ethernet switch, created for users who expect simplicity of operation, stable operation and convenient power supply of network devices through one cable. The model offers 9 RJ-45 10/100 Mbps ports, including 8 PoE+ ports, making it ideal for installations with IP cameras, access points or VoIP phones. It is a solution that allows you to reduce the number of cables, simplify the implementation of infrastructure and increase order at the installation site. The robust metal housing and fanless design ensure durability and quiet operation, making this model an excellent choice for both the office, store and home surveillance system.

PoE+ performance that makes network expansion easier

With support for Power over Ethernet Plus (PoE+), the switch can deliver up to 30W of power per port, and its total PoE budget is 65W. This means great flexibility when connecting multiple devices at the same time without the need for separate power supplies. Switching bandwidth 1,6 Gbit/s, transfer speed 1,3392 Mpps and functions such as Auto-Negotiation, automatic MDI/MDI-X, full and half-duplex or flow control support smooth data transfer and connection stability in everyday use. store-and-forward technology and support for auto-learning and auto-aging MAC addresses further affect the smooth operation of the network and effective traffic management.

Ready to go as soon as you plug it in

The TP-Link TL-SF1009P is designed for easy installation and trouble-free operation. The device can be conveniently mounted on the wall, and its compact dimensions make it easy to integrate even in limited space. The switch works with Cat5e cabling and works on the basis of proven network standards, offering the reliability expected from TP-Link equipment. This model is for people who want to quickly start the network without complicated configuration, and at the same time gain functionality particularly important in modern installations. If you are looking for a device that combines quiet operation, PoE+ support, durable metal construction and simplicity of use, this switch will be the right choice.

Product Features:

• Certificates: FCC, CE, RoHS
• Admissible relative humidity: 5 - 90%
• Frame mounting options: No
• LEDs: Power supply
• Package width: 223 mm
• Temperature range (storage): -40 - 70 °C
• Packaging height: 68 mm
• Address table size: 2000 inputs
• Number of Fast Ethernet ports (copper): 9
• Without windmill: Yes
• Routing/switching throughput: 1,6 Gbit/s
• Weight with packaging: 980 g
• Power connector: DC-in jack
• Housing material: Metal
• Power supply included: No
• Packaging depth: 280 mm
• Transfer speed: 1,3392 Mpps
• Temperature range (operation): 0 - 40 °C
• DC input voltage: 53.5 V
• Full duplex: Yes
• Copper Ethernet cabling technology: 10BASE-T
• Supported auto-aging MAC addresses: Yes
• Harmonised system code (HS): 85176990
• Support 10G: No
• Wall mountable: Yes
• User Guide: Yes
• Auto-Negotiation: Yes
• Power over Ethernet Plus (PoE) number of ports: 8
• Stackable: No
• Total Power over Ethernet (PoE) budget: 65 W
• PoE support: Yes
• Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Basic RJ-45 switching Number of Ethernet ports: 9
• Automatic MDI/MDI-X: Yes
• Relative humidity range: 10 - 90%
• Product width: 171 mm
• Power source: DC/PoE
• Power consumption (max): 77,08 W
• Supported MAC address auto-learning: Yes
• Heat emission: 262,84 BTU/h
• Power over Ethernet (PoE) power supply per port: 30 W
• Power supply: Yes
• Switch type: Not managed
• Packaging type: Box
• Product depth: 98 mm
• Cable Types Supported: Cat5e
• Product height: 27 mm
• Flow control support: Yes
• Store-and-forward: Yes
• Input current: 1.31 A
• Communication standards: IEEE 802.3i
• AC input frequency: 50 Hz
• Product color: Black
• AC input voltage: 220 V
• Half-duplex: Yes
• Sustainability: Yes
