Komutatorius TP-LINK TL-SF1005D

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SF1005D. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 587826629

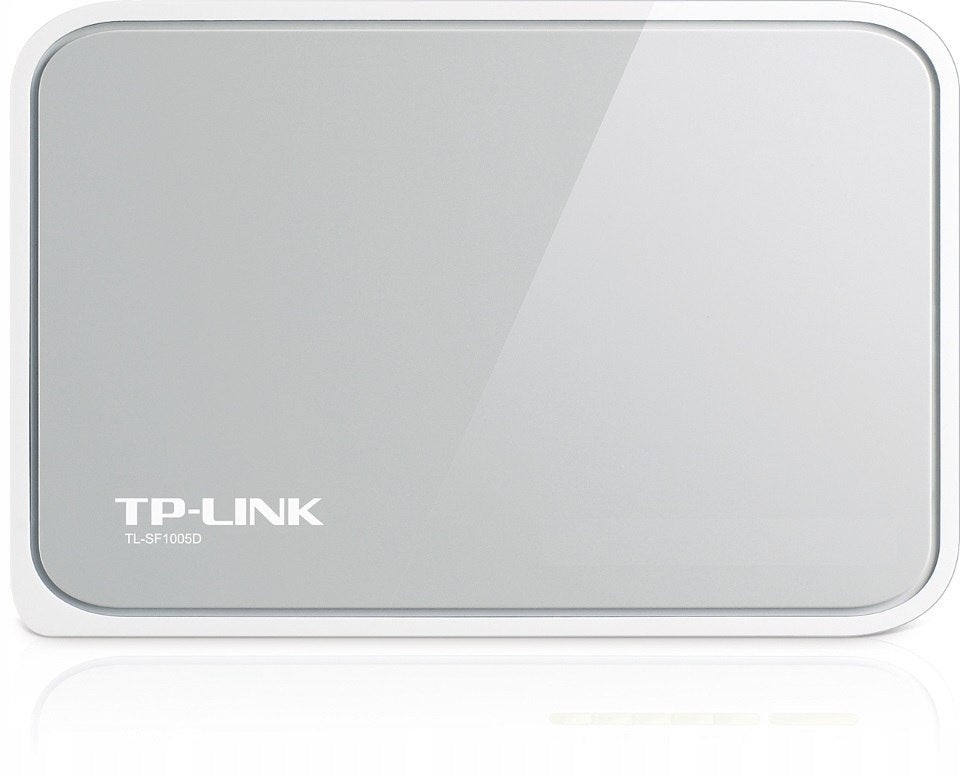

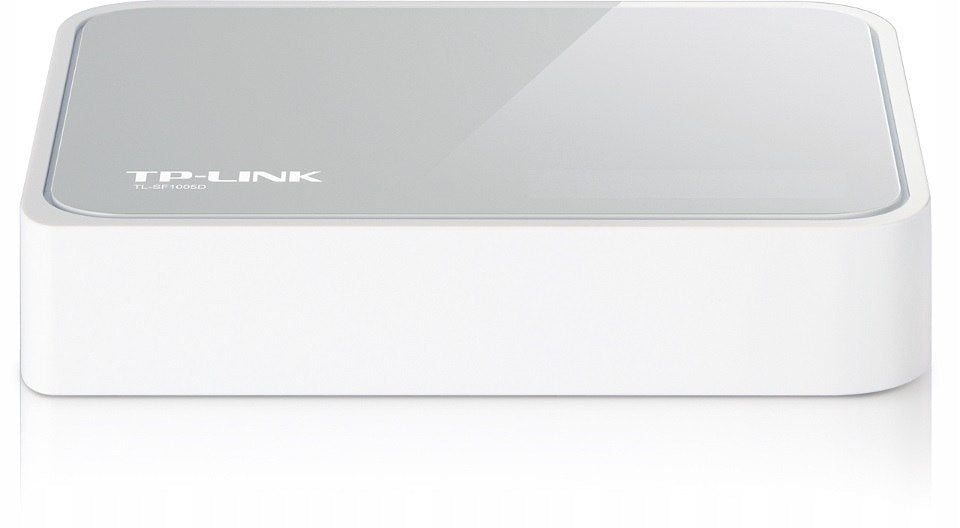

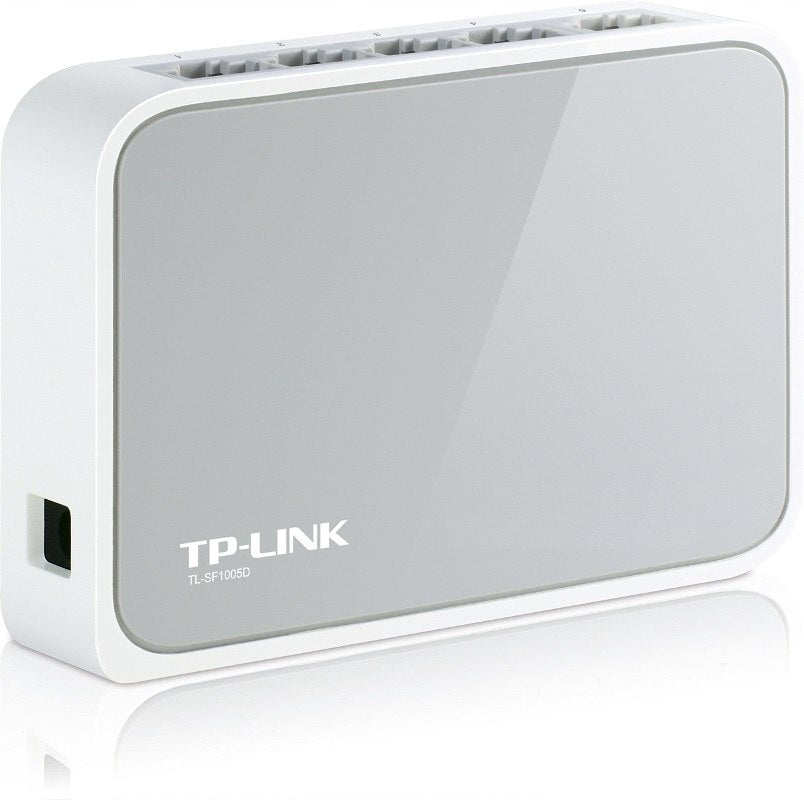

SWITCH TP-LINK TL-SF1005D

SWITCH TP-LINK TL-SF1005D

Model: TL-SF1005D

THE MOST IMPORTANT FEATURES

• 5 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Green Ethernet technology, energy saving up to 60%
• Reliable transmission provides full duplex data flow control (IEEE 802.3x standard)
• Desktop plastic case
• No configuration required thanks to plug and play

USE OF THE PRODUCT

TL-SF1005D is a Fast Ethernet network switch designed for home or office use (SOHO applications). Each of the 5 ports of the device has an automatic patching function MDI/MDIX allowing for quick installation of the device without having to check the type of cables used. The TL-SF1005D switch is environmentally friendly as it uses innovative technology to save up to 60%* of energy consumption.

CHARACTERISTICS

• Innovative technology saves up to 60% of energy
• Support bandwidth control standard for full duplex mode (IEEE802.3x) and backpressure function for half duplex mode
• Non-blocking architecture allows packets to be forwarded and filtered at full speed at maximum bandwidth
• Thanks to the MDI/MDIX function, there is no need for patch cables
• Support for auto-learning and auto-aging MAC addresses
• Automatic negotiation of connections on ports enables better integration of devices operating at different transmission speeds: 10Mbps, 100Mbps or 1000Mbps
• No fan in the housing ensures quiet operation of the device
• Desktop Enclosure
• Simple installation with Plug and Play

TECHNICAL SPECIFICATION

• HARDWARE FEATURES:
• Ports: 5 RJ45 10/100Mbps ports Automatic connection speed negotiation and automatic patching (Auto-MDI/MDIX)
• Power supply: External power supply (output - 5V/0.6A)
• Fanless: Yes
• Dimensions (WxDxH): 103.5 x 70 x 22 mm (4.1 x 2.8 x 0.9 inches)
• SOFTWARE FUNCTIONS:
• Broadcasting method: Store and Forward
• Advanced Features: Green Ethernet Technology, Energy Saving Up to 60% Data Flow Control (IEEE 802.3X Standard), Back Pressure Ports with Auto-Uplink
• OTHER:
• Certificates: FCC, CE, RoHs
• System requirements: Microsoft® Windows® 8/7/Vista/XP, MAC® OS, NetWare®, UNIX® or Linux.
• Working environment: Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
