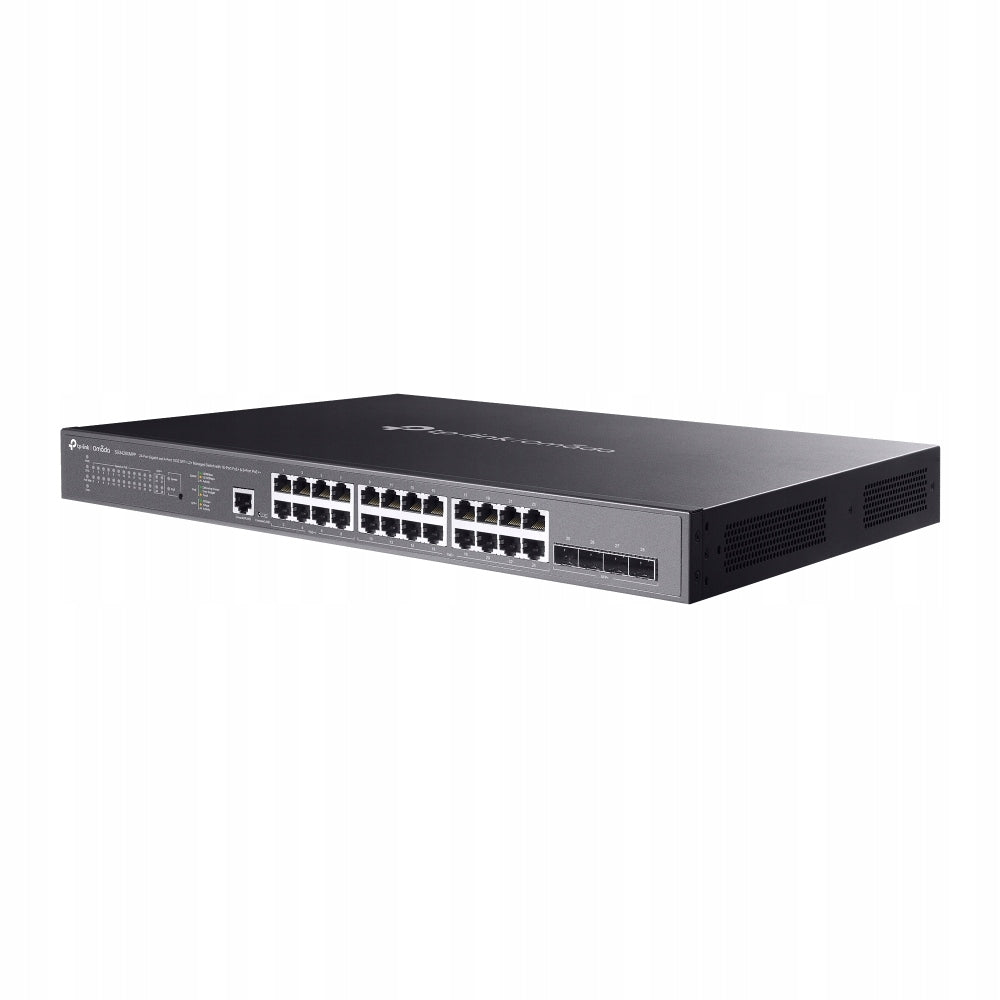

Komutatorius TP-LINK SG3428XMPP

Trumpai apie prekę

Prekė: Komutatorius TP-LINK SG3428XMPP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: SG3428XMPP

L2+ Omada Managed Switch, 16 Gigabit PoE+ Ports, 8 Gigabit PoE++ Ports and 4 10G SFP+ Slots

P/N : SG3428XMPP

Key Features :

• 4 SFP+ slots with 10 Gbps speed
• 8 gigabit PoE++ ports 802.3 af/at/bt (up to 90W PoE power per port)
• 16 gigabit PoE+ ports 802.3 af/at (up to 30 W PoE power per port)
• PoE power supply with a total power of 500 W*
• Centralized management in the cloud using the Omada app or Web† website
• Autonomous management via web, CLI, SNMP and RMON
• Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM and DDM
• ERPS supporting fast protection and recovery in ring topology
• Durable metal housing with rack mounting capability

HARDWARE FEATURES

Ports

• 24 x 10/100/1000 Mbps RJ45 ports (8 PoE++, 16 PoE+)

• 4 x 10G SFP+ Slots

• 1 x RJ45 Console Port

• 1 x Micro-USB Console Port

Number of Fans

3

Physical Security Lock

Yes

Power Supply

100-240 V AC~50/60 Hz

PoE Ports (RJ45)

• Standard: 802.3at/af/bt Compliant

• PoE++ Ports: 1-8, up to 90W per port

• PoE+ Ports: 9-24, up to 30W per port

• Total PoE Power Budget: 500 W*

Dimensions (W x D x H)

440 × 330 × 44 mm

(17.3 × 13.0 × 1.7 in)

Mounting

Rack Mountable

Max. Power Consumption

605.5W (110V / 60Hz) (with 500W PoE devices connected)

Heat Dissipation

2064.96 BTU/hr (110V / 60 Hz) (with 500W PoE devices connected)

PERFORMANCE

• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16 K
• Packet Buffer: 12 Mb
• Jumbo Frame: 9 KB

SOFTWARE FEATURES

Quality of Service

• 8 Priority Queues

• Supports 802.1p CoS/DSCP priority

• Priority Scheduling Mode: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow based Rate Limiting

• Smoother Performance

• Action for Flows: QoS Remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features

• 128 IP Interfaces: Supports IPv4/IPv6 interfaces

• Static Routing: 48 Static IPv4/IPv6 Routes

• Static ARP: 128 Static Entries

• 512 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol (STP)

• Loopback Detection

• 802.3x Flow Control

• Mirroring

L2 Multicast

• Supports 1000 IGMP groups (IPv4, IPv6)

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 Profiles and 16 entries per profile

Advanced Features

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Abnormal Event Warnings†

• Unified Configuration†

• Reboot Schedule†

ISP Features**:

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• DDM

• sFlow

VLAN

• VLAN Group: Max. 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN: 16 Protocol Template, 16 Protocol VLAN

• Private VLAN

• GVRP

• VLAN VPN: VLAN Mapping, VLAN Swapping

• Voice VLAN

Access Control Lists

• Time-based ACL

• MAC ACL: Source MAC Address, Destination MAC Address, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP Address, Destination IP Address, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, TOS DSCP/IP

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy Control: Mirroring, Rate Limit, Redirect, QoS Remark

• Applying ACL to Port/VLAN

Security

• IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- ND Snooping

- IPv6 Source Guard: 100 Entries

• Defend against DoS Attacks

• DHCP Filter

• Port Security Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Storm Control Broadcast/Multicast/Unicast: Control Mode(kb/s/rate/pps)

• 802.1X Authentication

- Port based authentication

- MAC based authentication

- VLAN Assignment

- MAB

- Guest VLAN

- RADIUS Authentication and Accountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management via HTTPS with SSLv3/TLS 1.2 encryption

• Secure CLI management with SSHv1/SSHv2 encryption

• IP/Port/MAC based access control

IPv6

• IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• IPv6 Static Routing

• IPv6 Neighbor Discovery (ND)

• Path maximum transmission unit (MTU) discovery

• ICMP v6

• TCP v6/UDP v6

• IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), SNMP IPv6, SSH IPv6, SSL IPv6, HTTP/HTTPS, TFTP IPv6

MIB

• MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• TP-Link Private MIB Support

MANAGEMENT

Omada App

Yes. Requires the use of an Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of an Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of an Omada Cloud-Based Controller.

Management Features

• Web-based GUI

• Command Line Interface (CLI) via console port, Telnet

• SNMP v1/v2c/v3

- Trap/Inform

- RMON (groups 1, 2, 3, 9)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP Auto-Install

• Dual Image, Dual Configuration

• CPU Utilization Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

OTHER

Certifications

CE, FCC

Package Contents

• SG3428XMPP

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, VistaTM, 7, 8, 10, 11

MAC® OS

NetWare®

UNIX®

Linux

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10%~90% RH, non-condensing

• Storage Humidity: 5%~90% RH, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	8 kg
Parametry	Number of ports	24
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	8885020620856
Parametry	Manufacturer code	SG3428XMPP
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE,WEEE
